Product parameter:
Material:
Current Rating:0.5
A
Voltage
Rating:3.3V
Ambient Humidity
Range:95% R.H. Max.
Contact
Resistance:100mΩ Max.
Insulation
Resistance:1000MΩ Min./500VDC
Mating Cycles:5000
Insertions.
Operating
Temperature: -45ºC~+105ºC
Applications
1.Embedded Systems
and IoT Devices
2.Automotive
Applications
3.Consumer
Electronics
4.Medical and
Healthcare Devices
5.Smartphones and
Tablets
Features

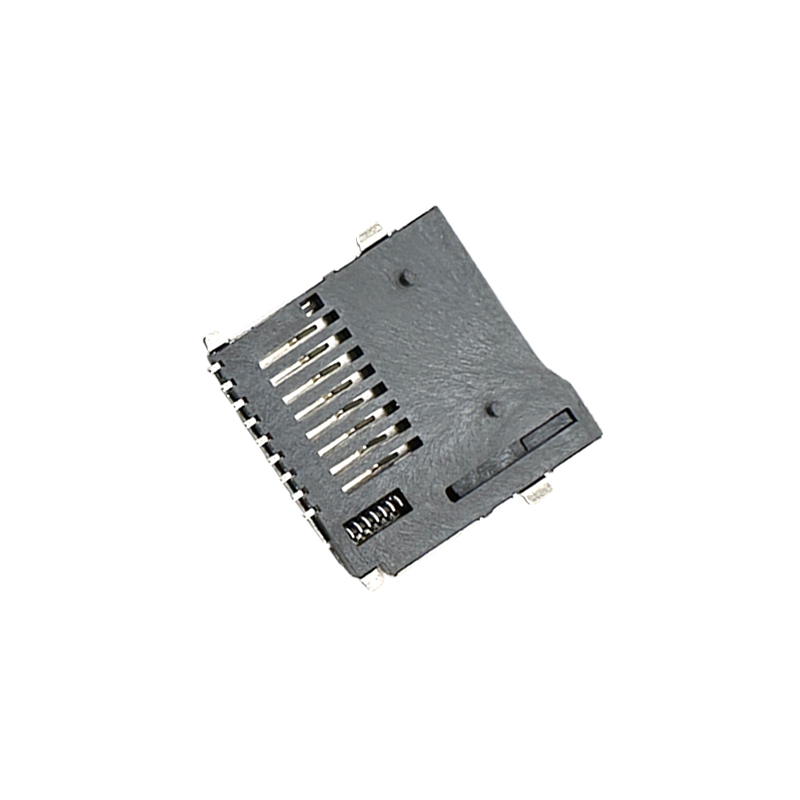

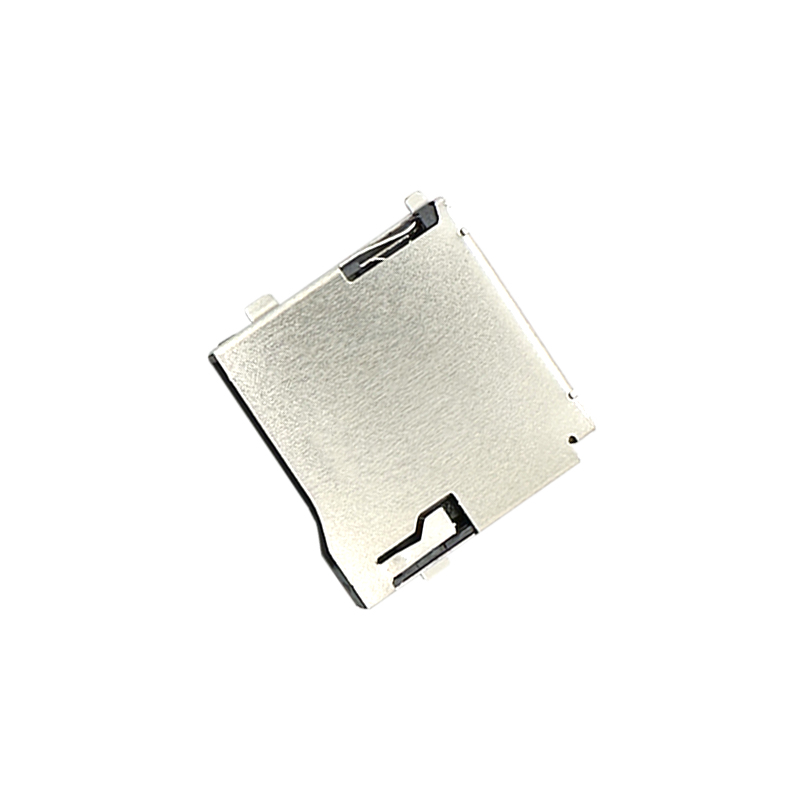

-Connector Type:
Micro SD Card Connector with push-push mechanism and CD pin.
-Push-Push
Mechanism: Allows for easy insertion and removal of the Micro SD card by
pressing the card inward to release it and pressing again to eject it. This
mechanism provides user-friendly operation and convenience.
-Height:
Specifically designed with a height of 1.85mm, which is standard for many
compact devices, balancing between space-saving design and mechanical
robustness.
-CD Pin (Card
Detect Pin): This pin is used to detect the presence of the Micro SD card. It
provides a signal to the device indicating whether a card is inserted or not,
facilitating automatic detection and handling of card insertion events.
-Reliable Card
Retention: The push-push mechanism ensures that the card stays securely in
place during use, preventing accidental ejection or disconnection.
Dimensions(Please refer to the attached 2D drawings for
detailed specifications.):
