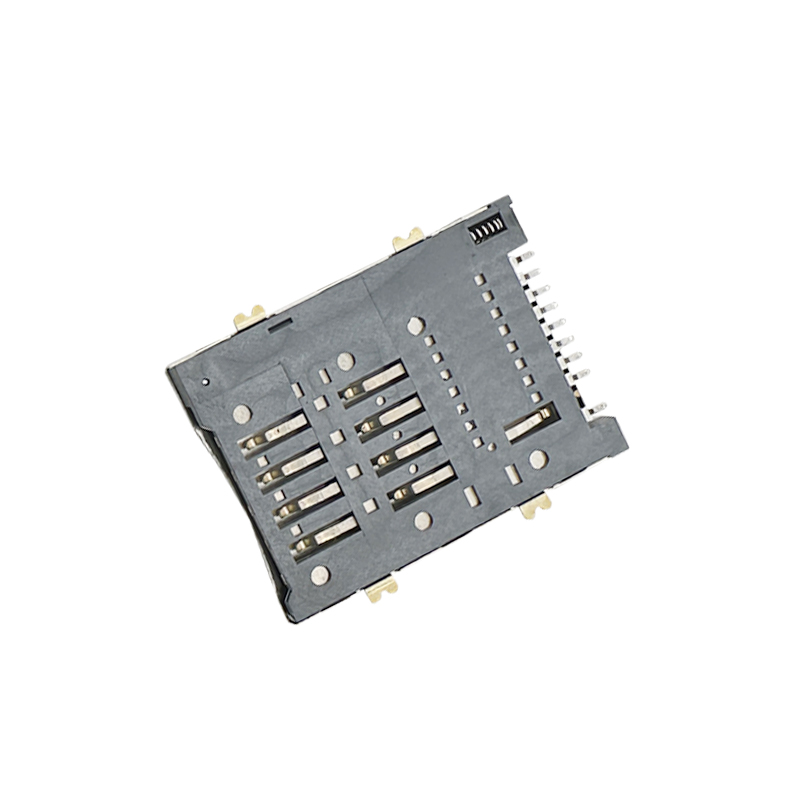

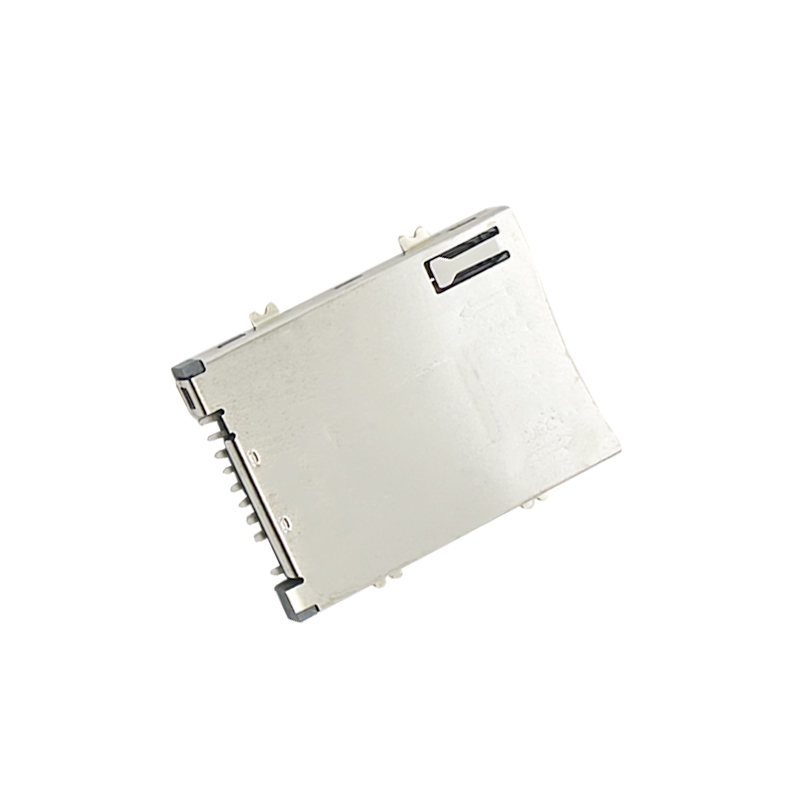

SIM Card Connector PUSH PUSH 8P 1PH1.85mm without Post :ERYAYIM-074B

SIM Card Connector PUSH PUSH 8P 1PH1.85mm without Post :ERYAYIM-074B

Brand ERYCO

Product origin CHINA

SIM Card Connector,PUSH PUSH,8P+1P,H1.85mm,without Post

Housing:High Temperature

Thermoplastic,UL94V-0.Black.

Contact:Copper Alloy.

Cover:Contact:Copper Alloys Or Steel.

Plating:

Underplate:Nickel.

Contact Area:Gold Over Nickel.

Solder Area:Tin Over Nickel.

Shell:G/F Plate Over Nickel On Solder Tails

2D(PDF)Drawing

Product parameter:

Material:

Current Rating:0.5A.

Voltage Rating:5.0 Vrms.

Insulation Resistance:500M Min.At DC 500V DC

Withstanding Voltage:250V ACrms For 1 Minute.

Contact Resistance:100M Max.At 10MA/20mV MAX.

Operating Temperature: -45ºC~+85ºC

Mating Cycles:5000 Insertions.

Applications

1.IoT Devices

2.Automotive Systems

3.Wearable Technology

4.Security Systems

Features

-Pin Configuration:Typically includes 8 primary pins for standard SIM card connections (such as VCC, GND, and data lines) and 1 additional pin for features like SIM card detection (CD pin) or additional functionalities required by the device.

-Height (H1.85mm):Specifies the vertical clearance required above the PCB surface for the connector, ensuring proper spacing for components and allowing for efficient airflow within the device.

-Compact Size:Designed to accommodate standard SIM cards, micro SIM cards, or nano SIM cards depending on the device's requirements. The compact size helps save space on the PCB.

-Push-Push Mechanism:Allows for easy insertion and removal of the SIM card with a simple push-push action. This mechanism enhances user convenience and reduces wear on both the connector and the SIM card.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
