Product parameter:
Material:
Current Rating:
0.5A Max.
Voltage Rating: 5V
AC/DC
Contact
Resistance:100m Max.
Insulation
Resistance:1000M Min./500VDC
Ambient Humidity
Range:95% R.H. Max.
Mating
Cycles:10000 Insertions
Mating Cycles:5000
Insertions
Operating
Temperature: -45ºC~+85ºC
Applications
1.Smartphones and
Feature Phones
2.Tablets and
Mobile Devices
3.IoT Devices
4.Automotive
Applications
Features
-6P (6 Pins) or 6P
1P Configuration: Available in configurations with either 6 pins or 6 pins with
an additional pole for flexibility, making it compatible with different circuit
requirements.
-Height: Designed
with a low profile height of 1.35mm, making it suitable for compact mobile
devices where space is limited.

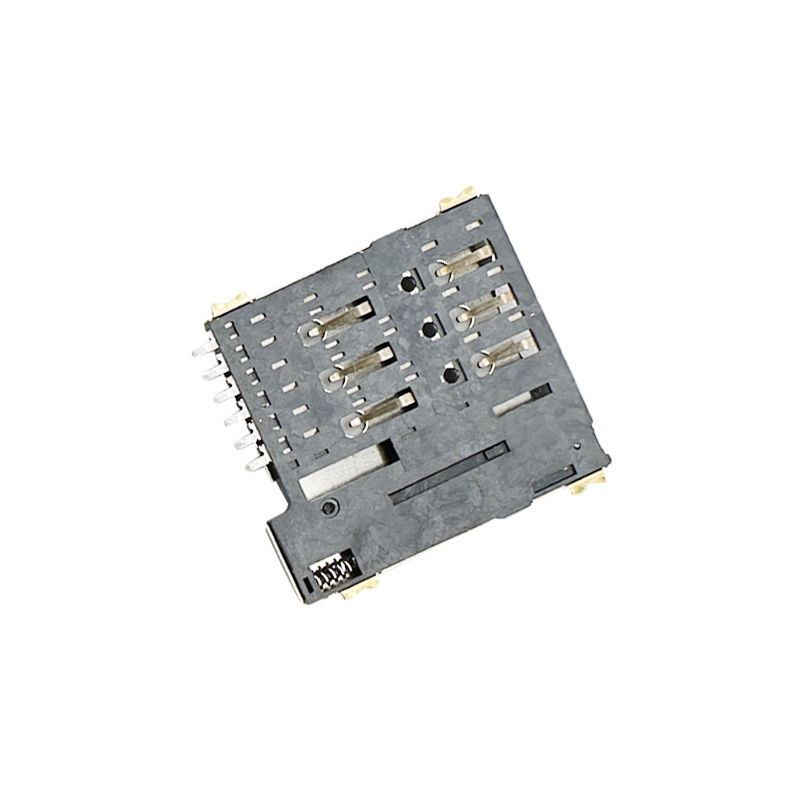

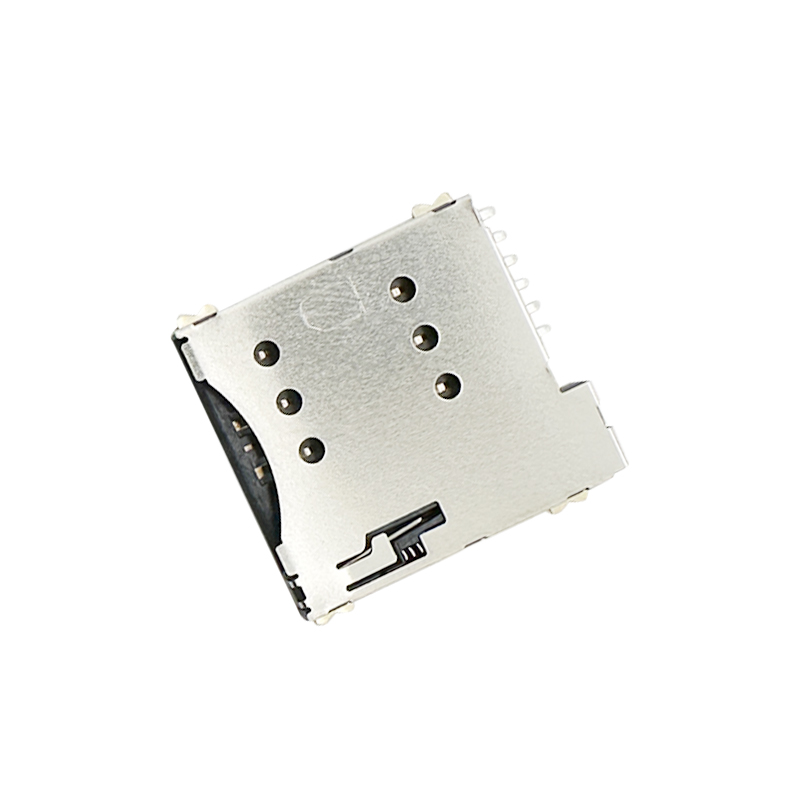

-Connector Type:
Designed specifically for Micro SIM (Subscriber Identity Module) cards used in
mobile devices.
-Push-Push
Mechanism: Utilizes a push-push mechanism for easy insertion and removal of the
Micro SIM card. Users push the card inward to insert it, and push again to
eject it, providing a convenient and secure method for managing SIM cards.
-RoHS Compliant:
Environmentally friendly design, adhering to RoHS standards to limit hazardous
substances.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
