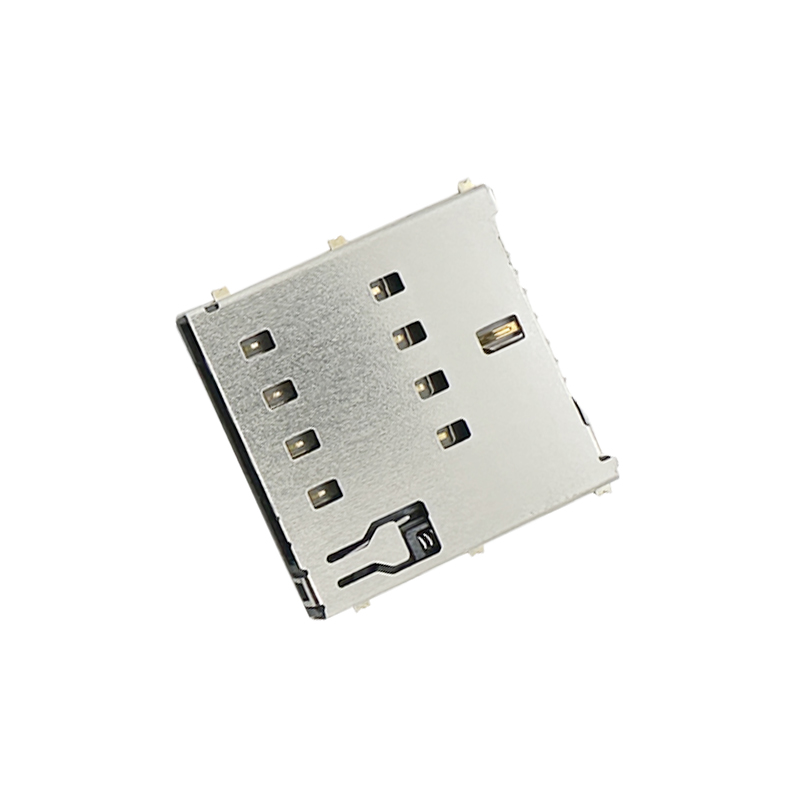

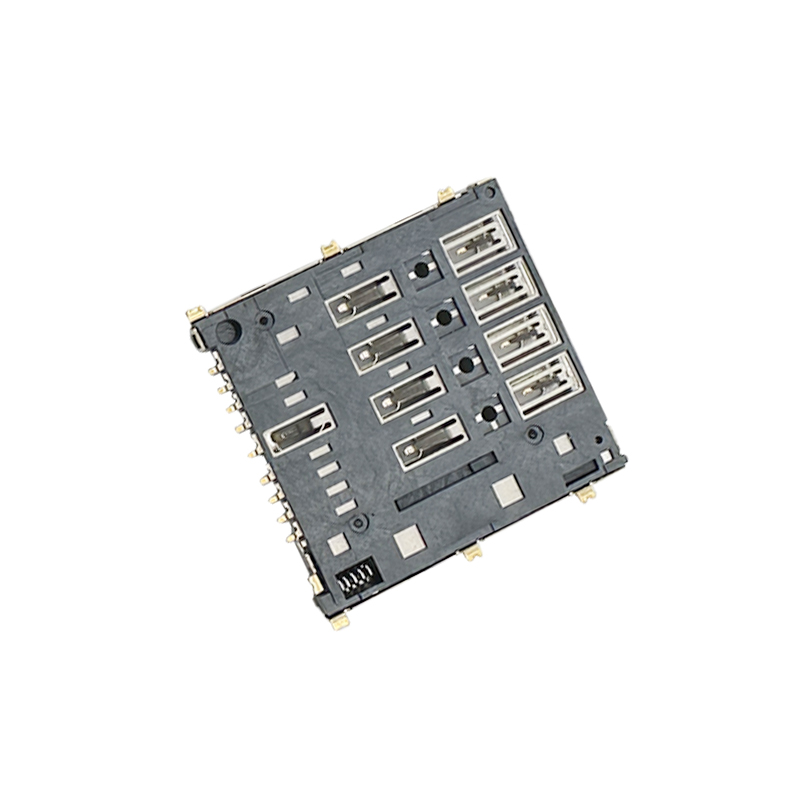

Micro SIM Card Connector,8P-1P With Switch,PUSH PUSH,H1.56mm :ERYAYIM-094

Micro SIM Card Connector,8P-1P With Switch,PUSH PUSH,H1.56mm :ERYAYIM-094

Brand ERYCO

Product origin CHINA

Specifications

Micro SIM Card Connector,8P＋1P With Switch,PUSH PUSH,H1.56mm

Material:

Housing:High Temperature Thermoplastic,UL94V-0

Contact:Copper Alloy,Au 1u",Solder area:Gold Flash;Under plate Ni 40u" Min all over

Shell:SUS,Plated 30U" Ni Overall,Solder area:Gold Flash

2D(PDF)Drawing

Product parameter:

Material:

Current Rating: 1.0A

Voltage Rating:50V

Contact Resistance:100mΩ Max.

Dielectric Withstanding Voltage:500V AC

Insulation Resistance:1000MΩ Min./250VDC

Operating Temperature: -45ºC~+85ºC

Applications

1.Smartphones and Mobile Devices

2.Tablets and Laptops

3.IoT Devices

4.Automotive Applications

Features

-8P+1P Configuration: This indicates there are 8 main electrical contacts (pins) plus 1 additional mechanical contact (often a grounding or stability pin). These pins ensure proper electrical connectivity between the SIM card and the device.

-Pitch (H1.56mm): This refers to the distance between the centers of adjacent pins. H1.56mm specifically means a pitch of 1.56mm, which determines the spacing and alignment of the pins for proper connection.

-Switch: The inclusion of a switch typically indicates an additional feature where the connector can detect the insertion or removal of the SIM card. This switch can be used to trigger actions or signal the device when a SIM card is inserted or removed.

-Push-Push Mechanism: The push-push mechanism allows users to insert the SIM card by pushing it into the slot until it clicks into place. Pushing again ejects the SIM card, making it convenient for users to insert and remove the card without needing additional tools.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
