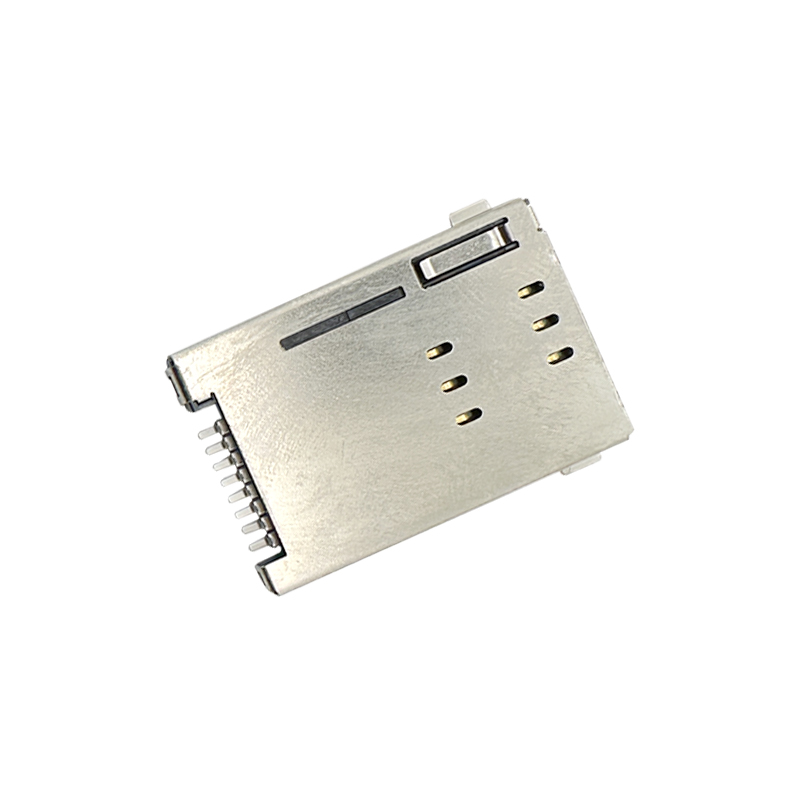

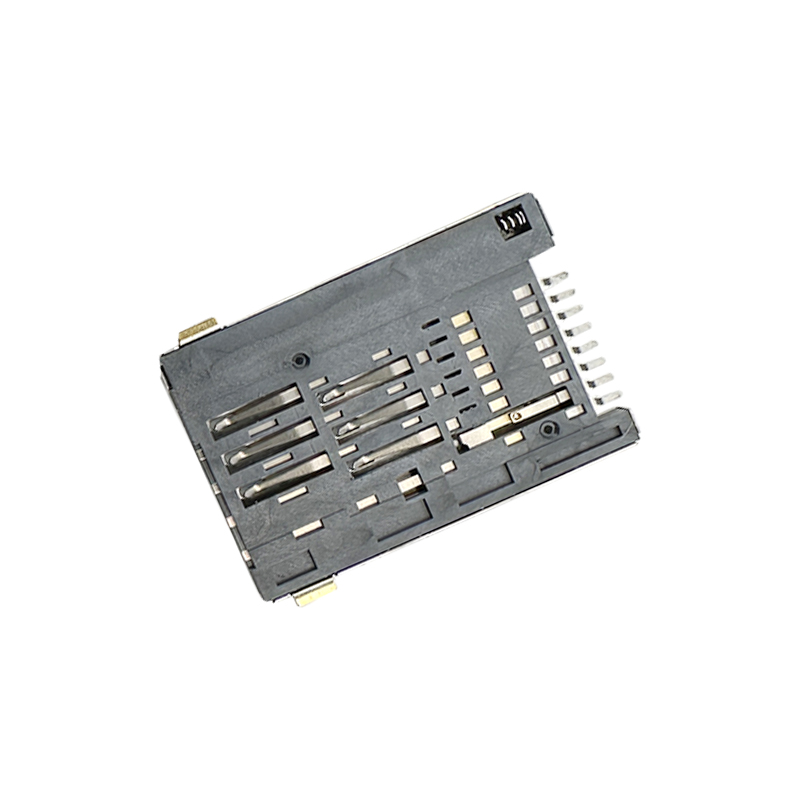

SIM Card Connector PUSH PUSH 6P+2P H2.25mm without Post:ERYAYIM-030A

SIM Card Connector PUSH PUSH 6P+2P H2.25mm without Post:ERYAYIM-030A

Brand ERYCO

Product origin CHINA

SIM Card Connector,PUSH PUSH,6P+2P,H2.25mm,without Post

Housing:Hi-Temp Plastic,UL94V-0.Rated.

Contact:Copper Alloy.

Shell:Stainless Steel.SUS 301,T=0.20mm.

Plating:

Contact area:G/F Plated over 30u" Nickel

Solder area:80u" Tin Plated over 30u" Nickel.Under plate:30u" Min Nickel.

Shell:30u" Min,Nickel Plated Over All,Solder Area:Gold Flash

2D(PDF)Drawing

Product parameter:

Material:

Current Rating:0.5 A

Dielectric Withstanding Voltage:250V AC/DC.

Insulation Resistance:500MΩ Min.

Contact Resistance:100mΩ Max.

Mating Cycles:5000 Insertions.

Operating Temperature: -45ºC~+85ºC

Applications

1.Automotive Systems

2.Medical Devices

3.Security Systems

4.Point of Sale (POS) Terminals

Features

-Height (H2.25mm):Specifies the vertical clearance required above the PCB surface for the connector, ensuring proper spacing for components and airflow within the electronic device.

-Pin Configuration:Typically includes 6 primary pins for standard SIM card connectivity (such as VCC, GND, and data lines) and 2 additional pins for features like SIM card detection (CD pin) or additional functionalities.

-High Durability:Engineered to withstand frequent insertion and removal cycles, ensuring long-term reliability and performance in various operating conditions.

-Secure Connection:Provides a stable and secure connection to the SIM card, minimizing the risk of disconnection due to vibrations or mechanical stress.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
