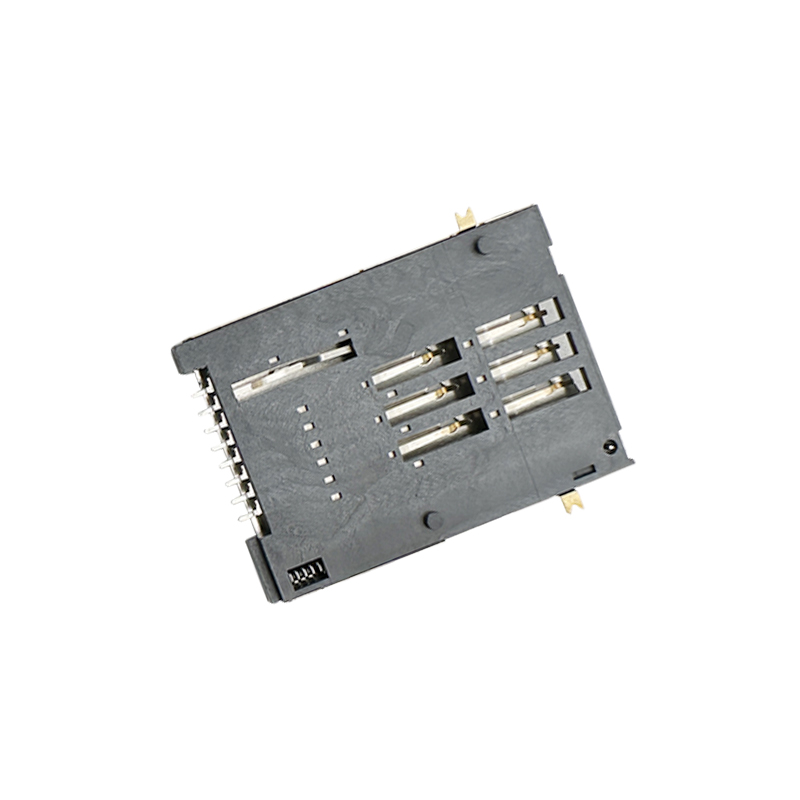

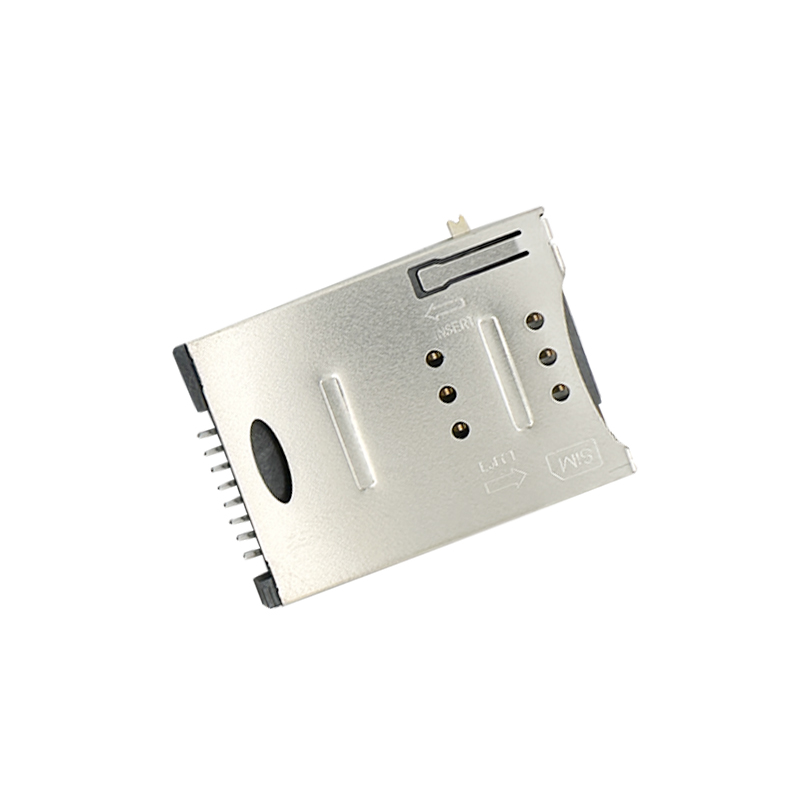

SIM Card Connector PUSH PUSH 6P 2P H1.85mm without Post :ERYAYIM-030

SIM Card Connector PUSH PUSH 6P 2P H1.85mm without Post :ERYAYIM-030

Brand ERYCO

Product origin CHINA

SIM Card Connector,PUSH PUSH,6P+2P,H1.85mm,without Post

Insulator:H-Temperature Plastic,UL94V-0.Black.

Contact:Copper Alloy,T=0.15mm;Shell:Stainless Steel,T=0.15mm

Finsh:

Terminal:50u" min Nickel Underplated on Allover,Gold Plating on Contact Arer,80u" min Tin on Solder Tail.

Shell:50u" Nickel Underplated on Allover,Gold Flash on Solder Latch.

2D(PDF)Drawing

Product parameter:

Material:

Current Rating:0.5A

Voltage Rating:5.0 Vrms.

Insulation Resistance:500M Min.At DC 500V DC

Withstanding Voltage:250V ACrms For 1 Minute.

Contact Resistance:100M Max.At 10MA/20mV MAX.

Operating Temperature: -45ºC~+105ºC

Mating Cycles:5000 Insertions.

Applications

1.Automotive Systems:

2.Medical Devices

3.Security Systems

4.Point of Sale (POS) Terminals

Features

-Height (H1.85mm):Specifies the vertical clearance required above the PCB surface for the connector, ensuring proper spacing for components and airflow within the electronic device.

-Pin Configuration:Includes 6 primary pins for electrical connections (typically power, ground, and data signals) and 2 additional pins for features like SIM card detection (CD pin) or other specific functionalities.

-Without Post: This version of the connector does not include posts, making it ideal for devices where the PCB mounting does not require additional mechanical support posts. This simplifies the design and can make the connector more compact and lightweight.

-Push-Push Mechanism:Allows for easy insertion and removal of the SIM card with a simple push-push action. This mechanism is user-friendly and reduces wear on both the connector and the SIM card.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
