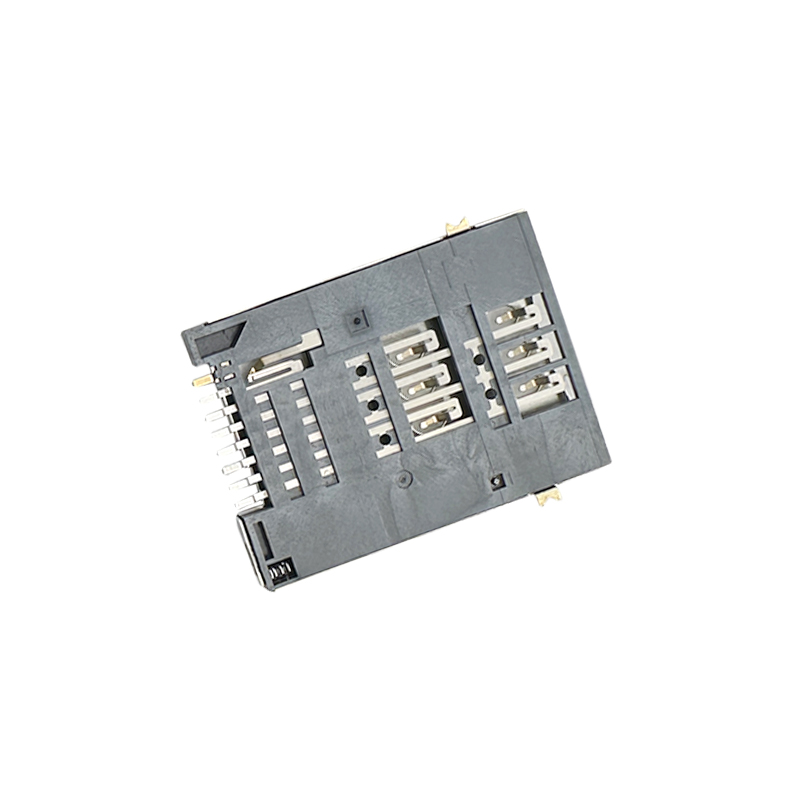

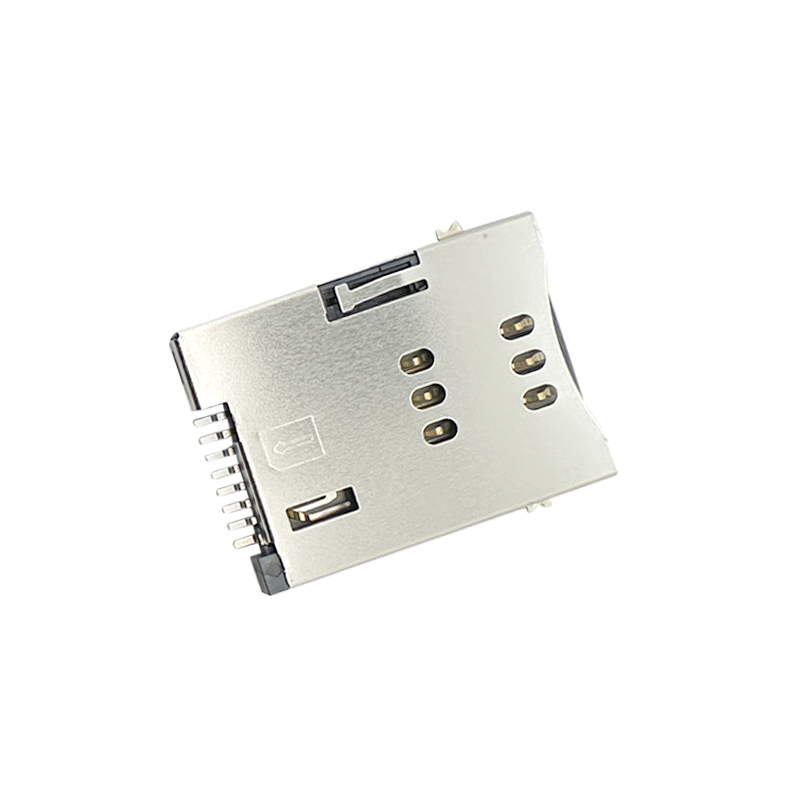

SIM Card Connector PUSH PUSH 6P+2P H1.85mm without Post :ERYAYIM-084

SIM Card Connector PUSH PUSH 6P+2P H1.85mm without Post :ERYAYIM-084

Brand ERYCO

Product origin CHINA

SIM Card Connector,PUSH PUSH,6P+2P,H1.85mm,without Post

Contact:Gold Flash Plated On Contact Area;Gold Flash Plated On SolderTails,With Entire Contact Underplated 50u" min Nickel.

Shell:50u" min Nickel Underplated Overall,Gold Flash Plated On Solder Tails.

2D(PDF)Drawing

Product parameter:

Material:

Housing:LCP,UL94V-0

Contact:C5210R-H,T=0.15

Shell:SUS304,T=0.20

Mylar:Polyester.

Operating Temperature: -45ºC~+85ºC

Applications

1.Automotive Systems

2.Medical Devices

3.Security Systems

4.Point of Sale (POS) Terminals

Features

-Pin Configuration:Includes 6 primary pins for electrical connections (typically power, ground, and data signals) and 2 additional pins for features like SIM card detection (CD pin) or other specific functionalities.

-Height (H1.85mm):Specifies the vertical clearance required above the PCB surface for the connector, ensuring proper spacing for components and airflow within the electronic device.

-Push-Push Mechanism:Allows for easy insertion and removal of the SIM card with a simple push-push action. This mechanism is user-friendly and reduces wear on both the connector and the SIM card.

-Compact Size:Designed to accommodate standard SIM cards, offering space-efficient connectivity solutions in electronic devices.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
