Brand ERYCO
Product origin CHINA
Housing:LCP UL94V-0,Black.
Contact:Copper Alloy.
Shell:Copper Alloy.
Product parameter:
Material:
Voltage Rating:30VAC RMS
Current Rating:2.0A(pin 1 5);1.0A(pin 2 3 4).
Contact Resistance:50mΩ Max.
Insulation Resistance:100MΩ Min.
Dielectric Withstanding Voltage:500 V AC For 1Minute.
Operating Life:5000 Cycles.
Applications
1.Mobile Devices
2.Digital Cameras and Camcorders
3.Portable Media Players
4.GPS Devices
Features

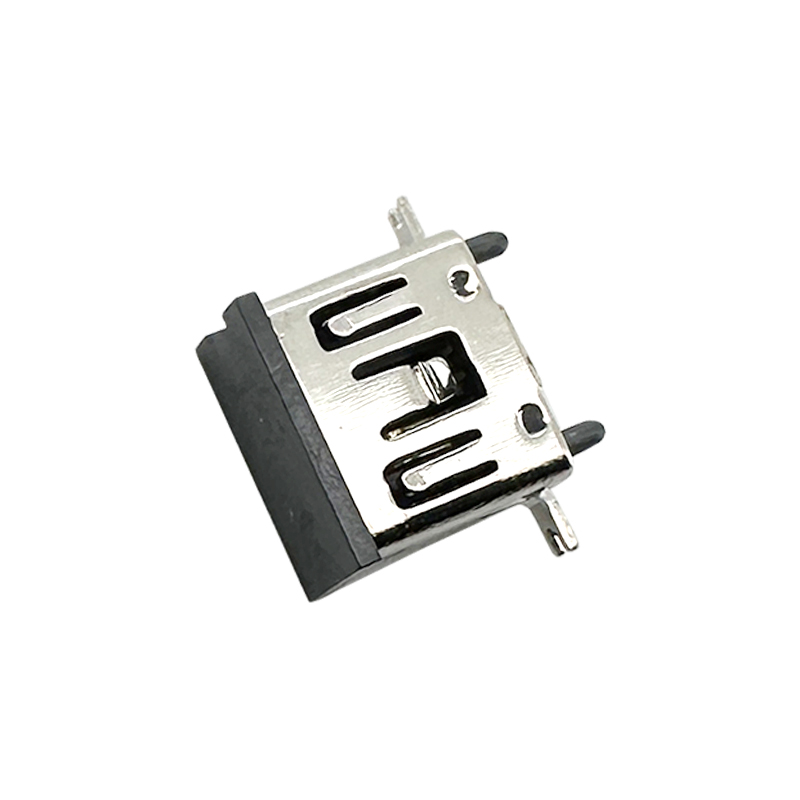

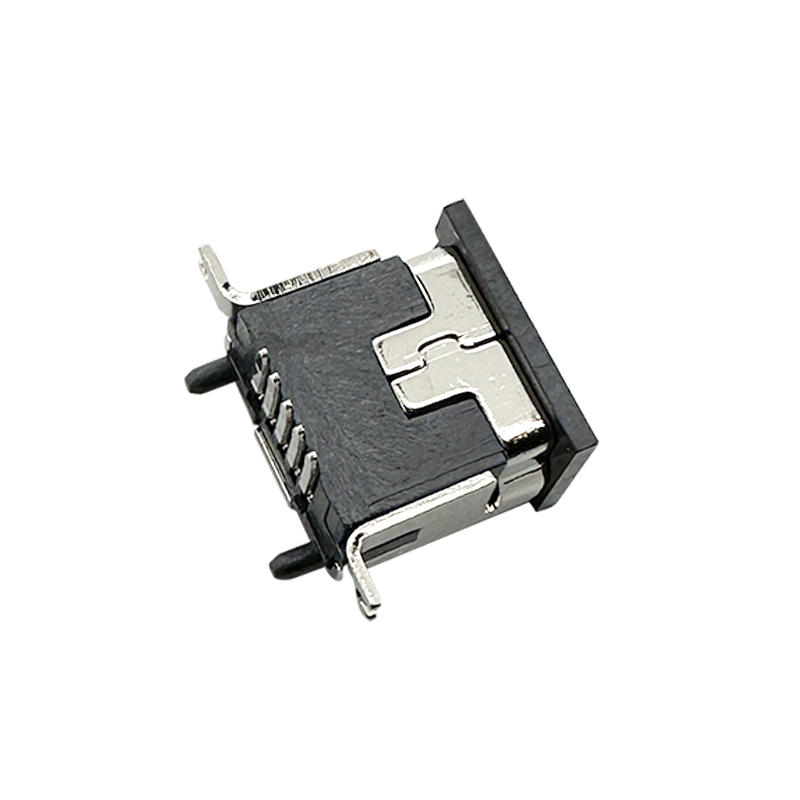

-Mini USB B Type Connector: Designed to accommodate Mini USB B Type plugs, commonly used for data transfer and power connections in smaller devices.
-Surface Mount Device (SMD): Intended for surface mount installation on printed circuit boards (PCBs), offering a space-saving solution suitable for modern electronic designs.
-Vertical Mounting Orientation: The connector is designed to be mounted vertically on the PCB, allowing for efficient use of board space and optimal integration into device enclosures.
-Number of Pins: Typically, these connectors have 5 pins, which include connections for power (VCC), ground (GND), and data transfer (D+ and D-).
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
