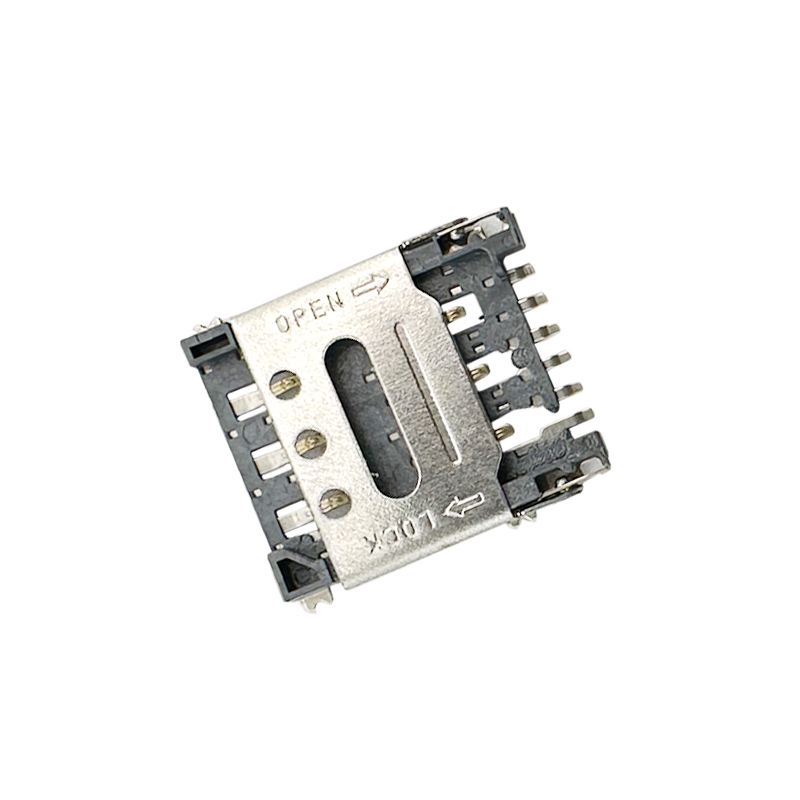

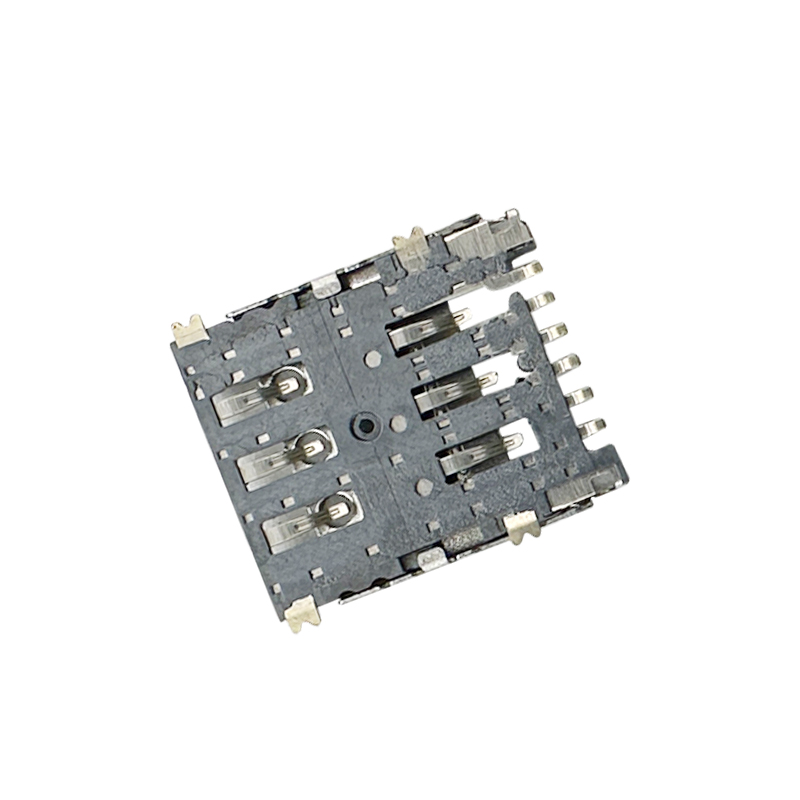

Nano SIM Card Connector 6Pin H1.4mm Hinged Type with CD Pin:ERYAYIM-077A

Nano SIM Card Connector 6Pin H1.4mm Hinged Type with CD Pin:ERYAYIM-077A

Brand ERYCO

Product origin CHINA

Current Rating:0.5A AC/DC MAX.

Voltage Rating:125V AC/DC

Ambient Humidity Range:95% R.H. Max.

Contact Resistance:80mΩ Max.

Insulation Resistance:100MΩ Min./100V DC

Mating Cycles:5000 Insertions.

Operating Temperature: -45ºC~+85ºC

2D(PDF)Drawing

Product parameter:

Material:

Insulator:High Temperature Thermoplastic,UL94V-0.

Contact:Copper Alloy,Plated 50u" Ni Overall Contact All Au 1U.

Shell:SUS.All Ni 30U MIN.

Applications

1.Automotive

2.Medical Devices

3.Security Systems

4.Industrial Equipment

Features

-Compact Design: At a height of just 1.4mm, this connector is ideal for compact, space-sensitive applications, particularly in modern electronic devices where space is at a premium.

-Hinged Type Mechanism:The hinged design allows the SIM card tray to swing open, facilitating easy insertion and removal of the SIM card. This provides a secure and reliable connection once closed.

-Pin Configuration:Includes 6 pins to support all necessary electrical connections for full functionality and compatibility with standard nano SIM cards.

-Card Detect (CD) Pin:The CD pin detects the presence or absence of a SIM card. This feature allows the device to know when a SIM card is inserted or removed, enabling functionalities like software notifications or hardware triggers.

-High Durability: Designed for high endurance and resilience, suitable for applications in harsh environments or devices subject to frequent handling.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
