Brand ERYCO
Product origin CHINA

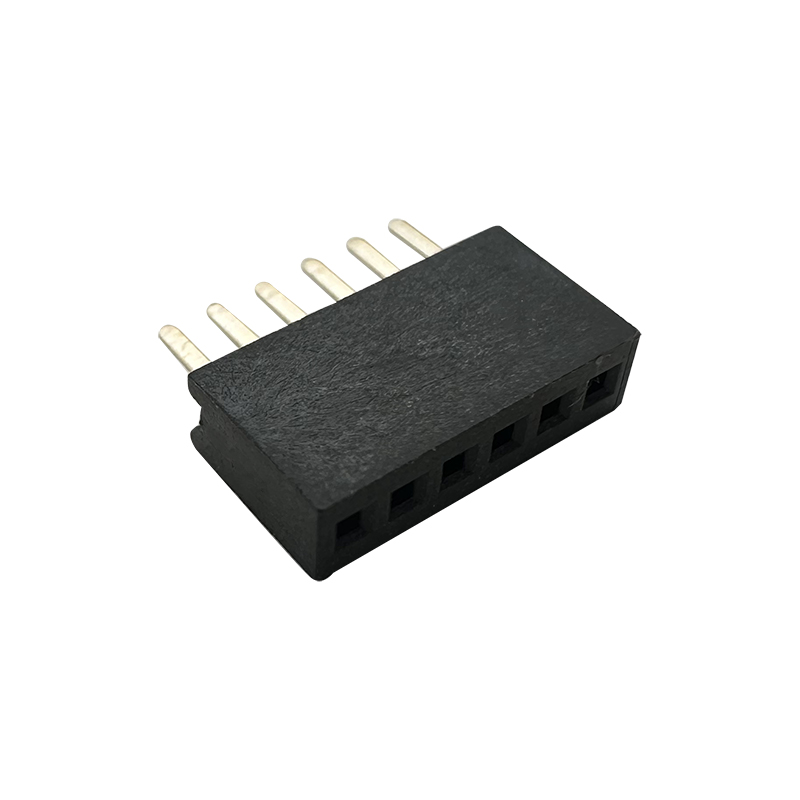

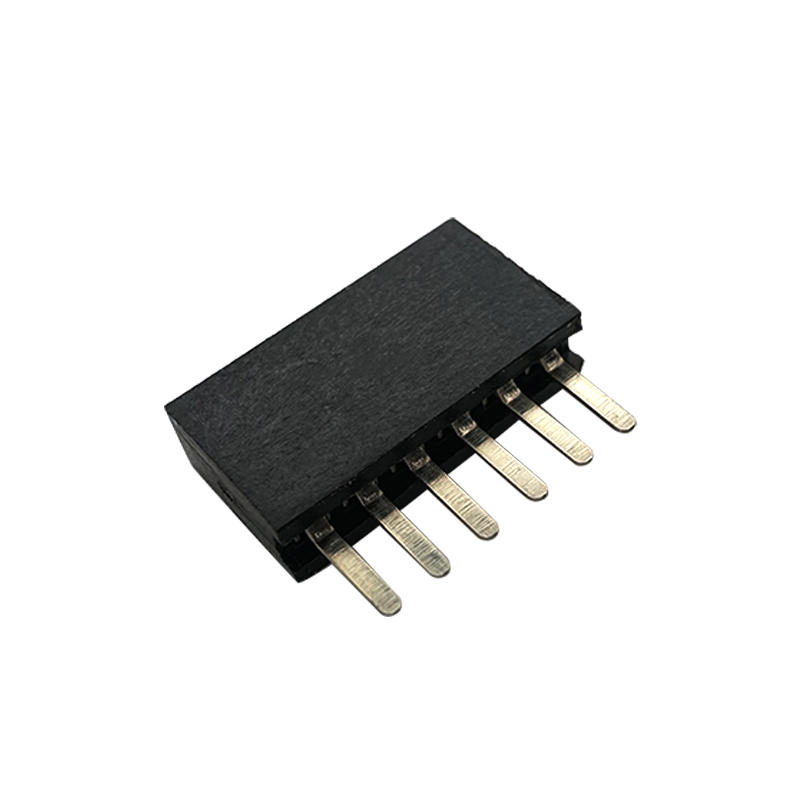

1.27mm Pitch Female Header Connector Height 4.3mm
Order Information
ERYAY08C-4.3-2-XX-T-B
Type: 208C or 208CA
Height: 4.3mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~100pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin RM-SMD pin
Material:B=PA6T C=LCP
Product parameter:
Material:
Housing: PA6T or LCP UL94V-0
Contacts: Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 1.0 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
Applications
1. IoT Devices
2. LED Lighting
3. Wearable Technology
4. Gaming Consoles
Features
-Pitch:1.27mm (0.05 inches) pitch, indicating the center-to-center distance between adjacent pins.
-Height:4.3mm, which is the overall height of the connector from the base to the top, providing slightly more clearance than the 3.4mm version.
- Number of Positions: Available in various pin counts, often ranging from a few positions up to 50 or more, depending on the specific application requirements.
-Contact Material:Typically made of phosphor bronze or copper alloy, which offers good conductivity and mechanical strength.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
