Brand ERYCO
Product origin CHINA

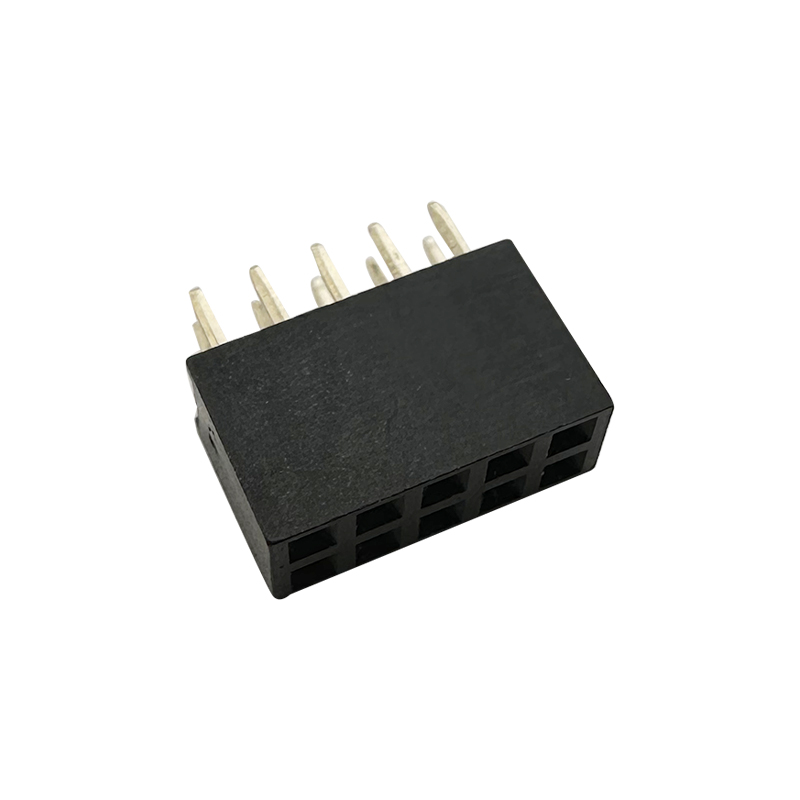

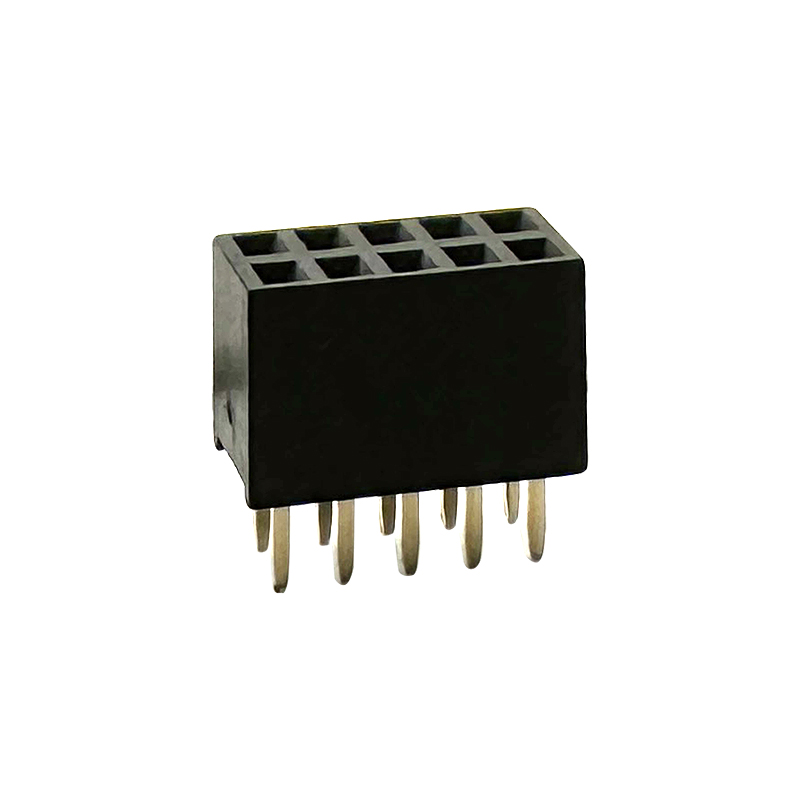

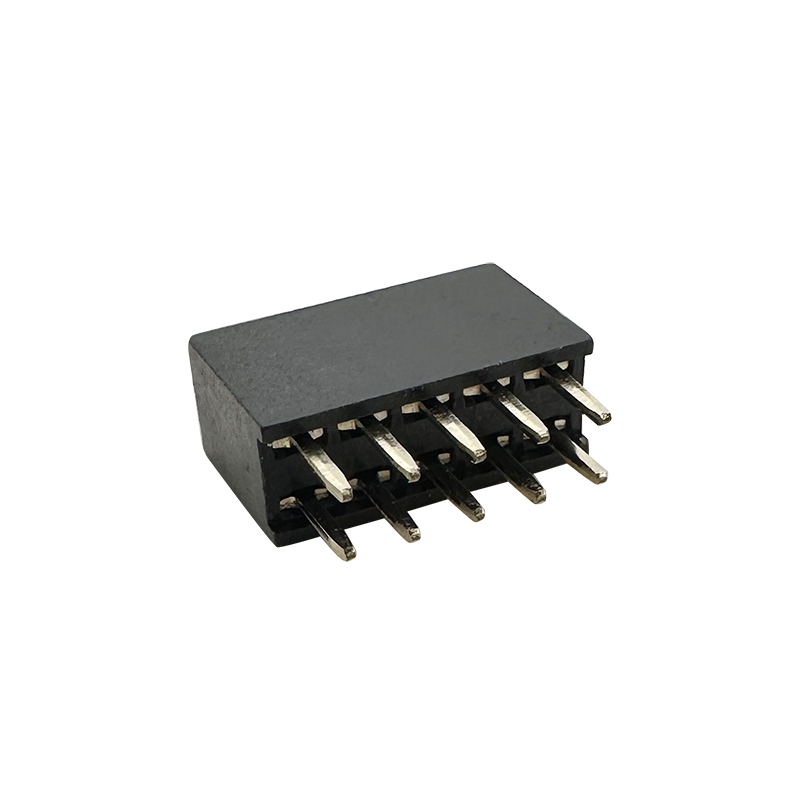

2.0mm Pitch Female Header Connector Height 2.2mm
Order Information
ERYAY08B-2.2-1-XX-S-B
Height: 2.2mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~80pin)
S-Straight Pin T-SMT Pin
Material:A=PBT B=PA6T C=LCP
Product parameter:
Material:
Housing: PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 1.5 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
Applications
1.Printed Circuit Board (PCB) Interconnections
2. Consumer Electronics
3. Industrial Applications
4.Telecommunications
Features
-Number of Contacts: Female header connectors come in various configurations with different numbers of contacts (pins). Common configurations include single-row and dual-row headers with varying numbers of pins to suit different application needs.
-Height: The height of 2.2mm specifies how much vertical space the connector occupies on a PCB when soldered or mounted. This low profile makes them suitable for applications where space is limited.
-Connector Type: It's a female header connector, meaning it has receptacles or sockets that accept male pins or headers. This allows for easy mating and unmating of connections, often used for board-to-board or board-to-cable connections.
-Material and Construction: These connectors are typically made from durable materials such as high-temperature thermoplastics to withstand the rigors of electrical and mechanical stresses in various environments.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
