Product parameter:
Material:
Housing: PA6T
UL94V-0
Contacts: Brass or
Phosphor Bronze
Plating: Au or Sn
over 50u" Ni
Electrical
Characteristics:
Current Rating:
1.5 AMP
Withstanding
Voltage: 500V AC/DC
Insulator
Resistance: 1000MΩ Min
Contact
Resistance: 20mΩ Max
Operating
Temperature: -40ºC~+105ºC
Applications
1. Industrial
Applications
2.
Telecommunications
3. Automotive
Electronics
4. Medical Devices
Features
-Number of Contacts:
Female header connectors are available in various configurations with different
numbers of contacts (pins). These can range from single-row configurations with
a few pins to dual-row configurations with many pins, depending on the specific
application requirements.
-Height: The
height of 3.4mm specifies how much vertical space the connector occupies on a
PCB when soldered or mounted. This height is slightly larger compared to
lower-profile connectors, providing more clearance and mechanical stability.

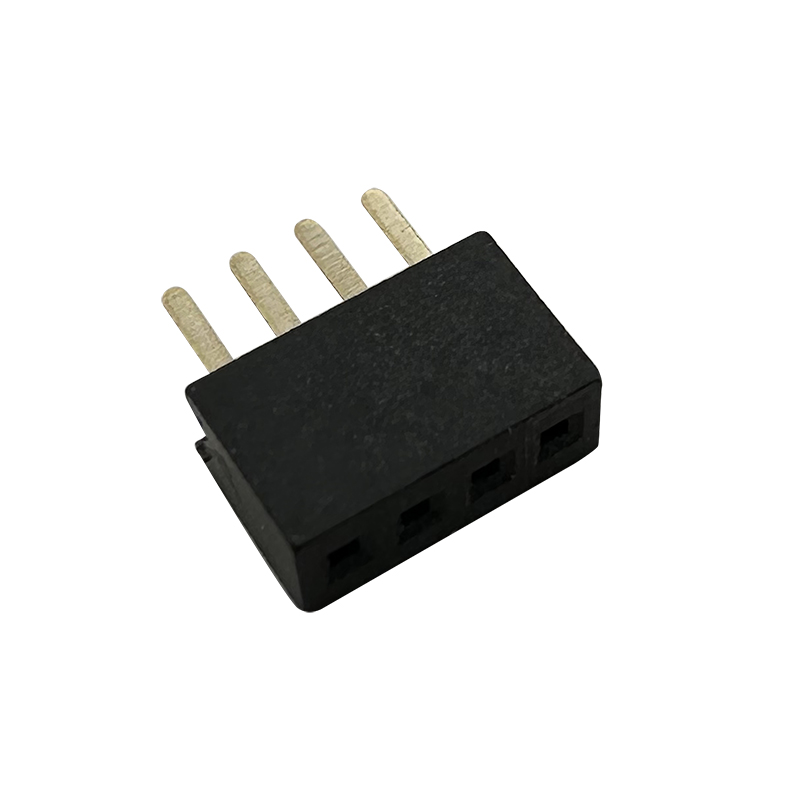

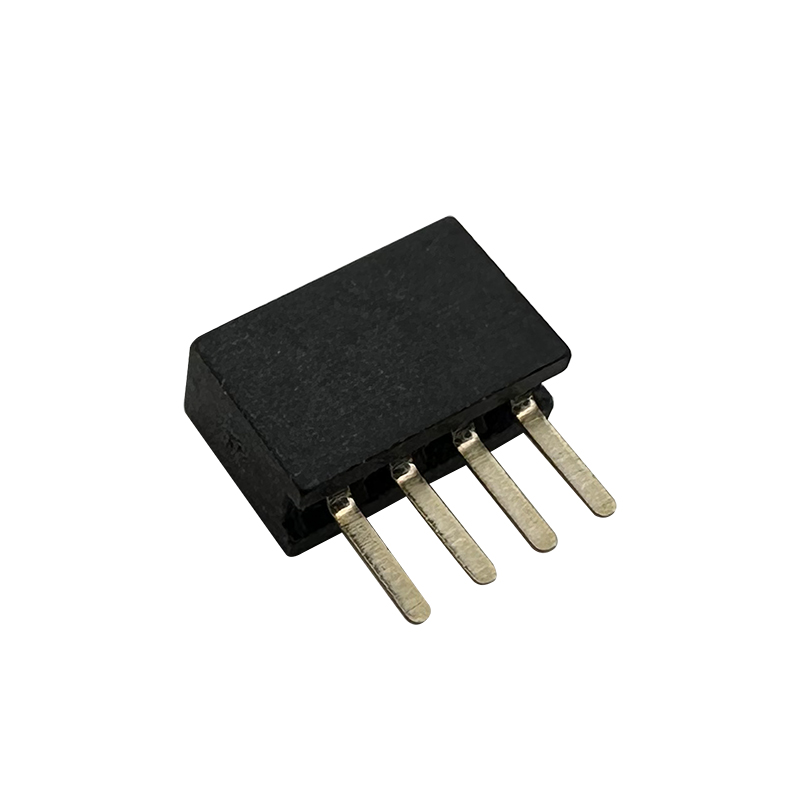

-Connector Type:
It is a female header connector, meaning it has receptacles or sockets that
accept male pins or headers. This configuration allows for easy mating and
unmating of connections, making it suitable for board-to-board or board-to-wire
applications.
-Material and
Construction: These connectors are typically constructed from durable materials
such as high-temperature thermoplastics or thermoset plastics. This ensures
they can withstand the electrical and mechanical stresses encountered in various
operating environments.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):、
