Brand ERYCO
Product origin CHINA

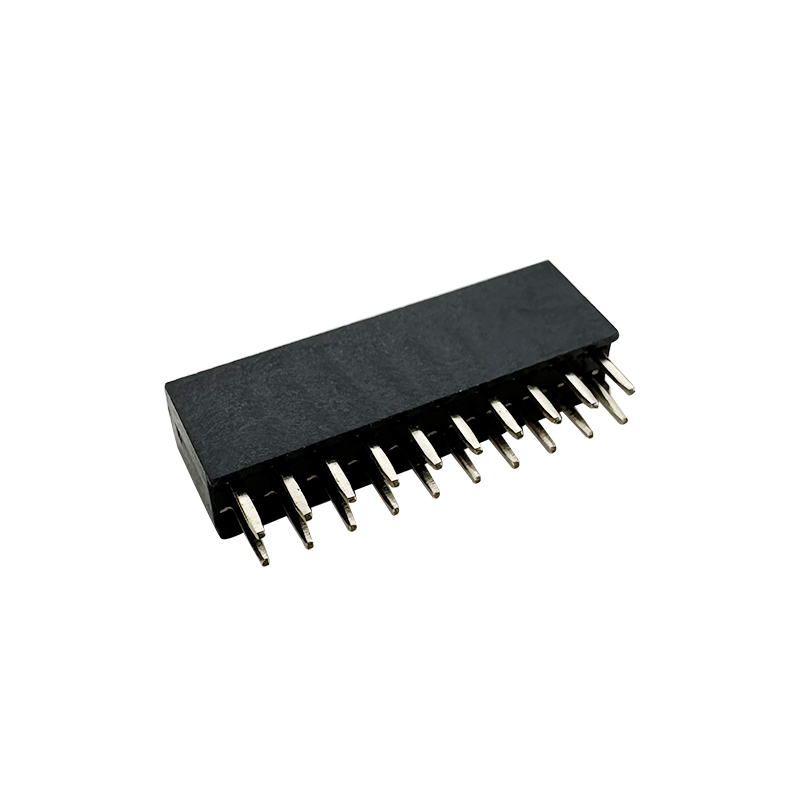

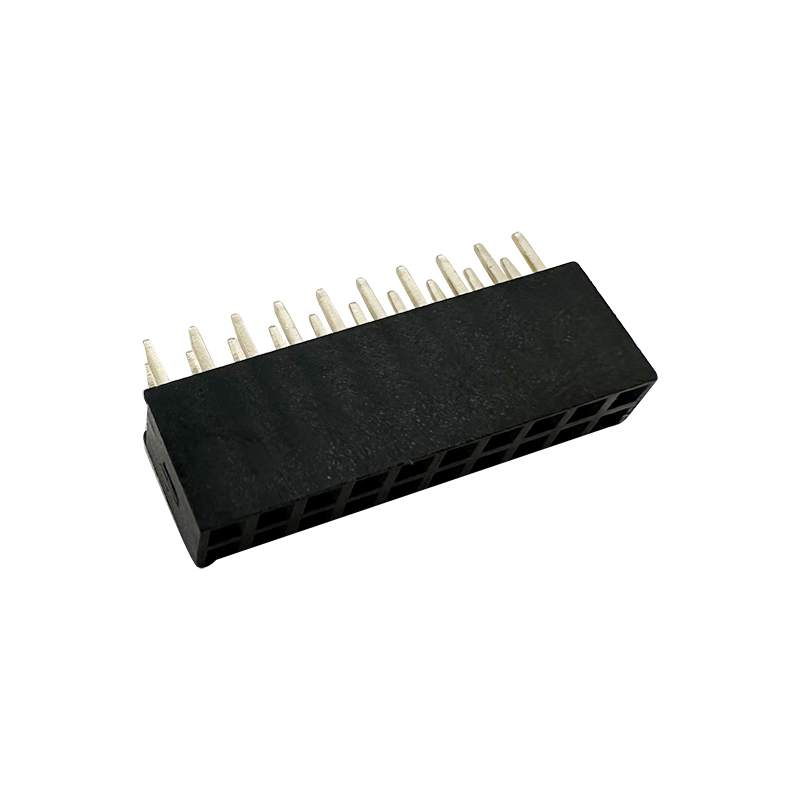

1.00mm Pitch Female Header Connector Height 2.0mm
Order Information
ERYAY08F-2.0-2-XX-S-B
Height: 2.0mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~100pin)
S-Straight Pin T-SMT Pin
Material:B=PA6T C=LCP
Product parameter:
Material:
Housing: PA6T or LCP UL94V-0
Contacts: Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 0.75 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 30mΩ Max
Operating Temperature: -40ºC~+105ºC
Applications
1.Development and Prototyping
2. Consumer Electronics
3. Computing Devices
4.Telecommunications
Features
-Height: 2.0mm height profile, indicating the overall vertical dimension from the PCB surface to the top of the connector.
- Number of Contacts: Available with various numbers of contacts (pins) depending on the specific model and application requirements.
-Mounting Style: Typically available in through-hole mount (THT) configuration, where the connector is inserted into plated holes on the PCB and soldered in place.
-Materials: Generally made from materials like phosphor bronze for the contacts and plastic (often glass-filled nylon) for the housing, providing good electrical conductivity and mechanical strength.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
