Product parameter:
Material:
Housing: 30% Glass
filled PBT / PA6T UL94V-0
Contacts: Brass or
Phosphor Bronze
Plating: Au or Sn
over 50u" Ni
Electrical
Characteristics:
Current Rating: 3
AMP
Insulator Resistance:
1000M Ohm min. at DC 1000V
Contact
Resistance: 20m Ohm max.
Operating
Temperature: -40ºC~+105ºC
Applications
1.Consumer
Electronics
2.Test and
Measurement Equipment
3.IoT (Internet of
Things)
4.Military and
Aerospace

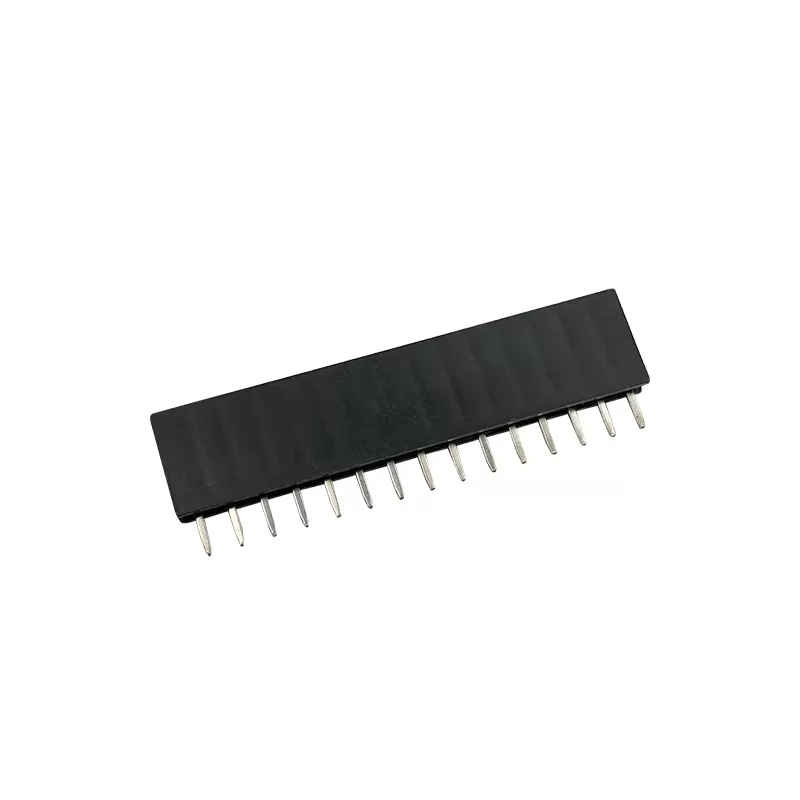

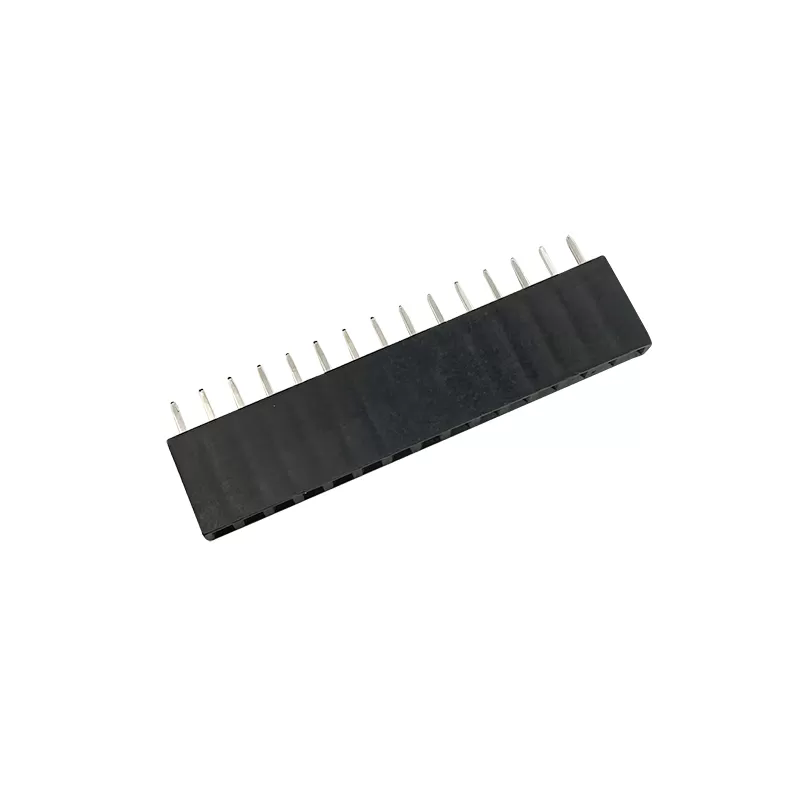

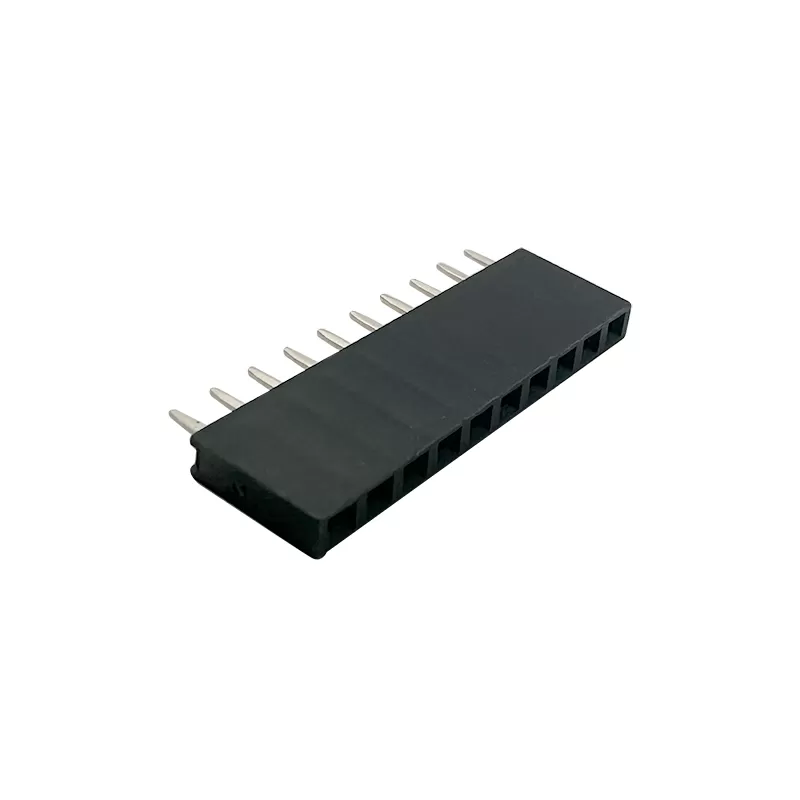

Features
-Female: The term
"female" refers to the part of the connector that has receptacles or
sockets, which accept male pins or headers. These connectors allow male pins to
be inserted into them for a secure connection.
- Pin Count:Female
headers are available in different configurations, typically ranging from 2
pins to 40+ pins, depending on the application. The number of pins refers to
the number of individual connections available in the connector.
-Pitch
(Spacing):The pitch refers to the distance between adjacent pins on the
connector. Common pitches include 1.00mm, 2.00mm, 2.54mm (0.1 inch), 3.96mm,
and others. The choice of pitch depends on the density of the required
connections and the size of the components.
-Customization:Female
header connectors are available in various lengths, pin arrangements, and
orientations, allowing for high customization based on the needs of a specific
application.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
