Product parameter:
Material:
Housing: 30% Glass
filled PBT / PA6T UL94V-0
Contacts: Brass or
Phosphor Bronze
Plating: Au or Sn
over 50u" Ni
Electrical
Characteristics:
Current Rating: 3
AMP
Insulator Resistance:
1000M Ohm min. at DC 1000V
Contact
Resistance: 20m Ohm max.
Operating
Temperature: -40ºC~+105ºC
Applications
1.Consumer
Electronics
2. Networking
Equipment
3. Automotive
Electronics
4.Industrial
Applications
Features

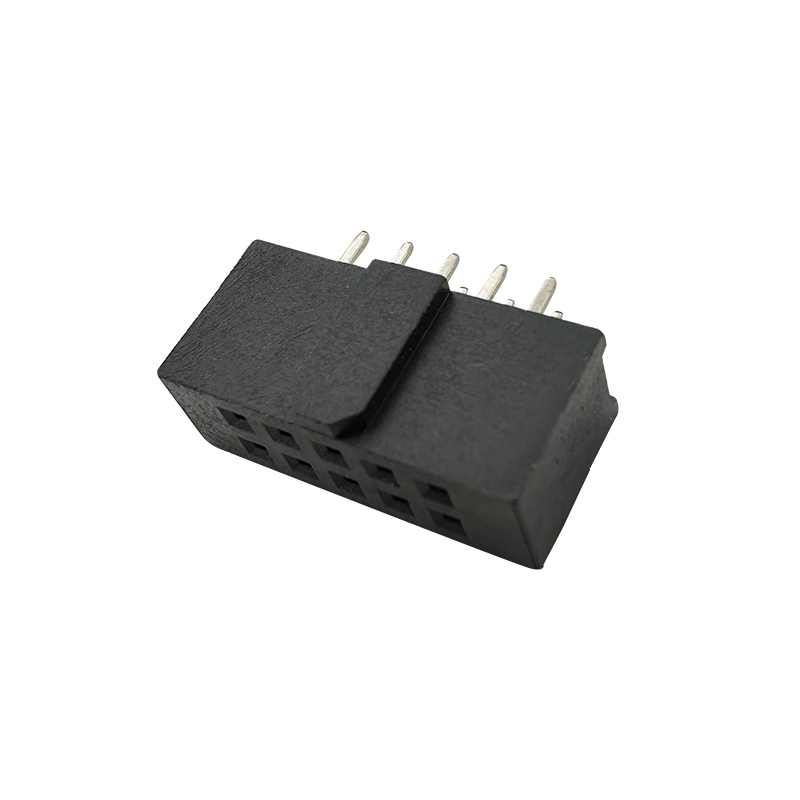

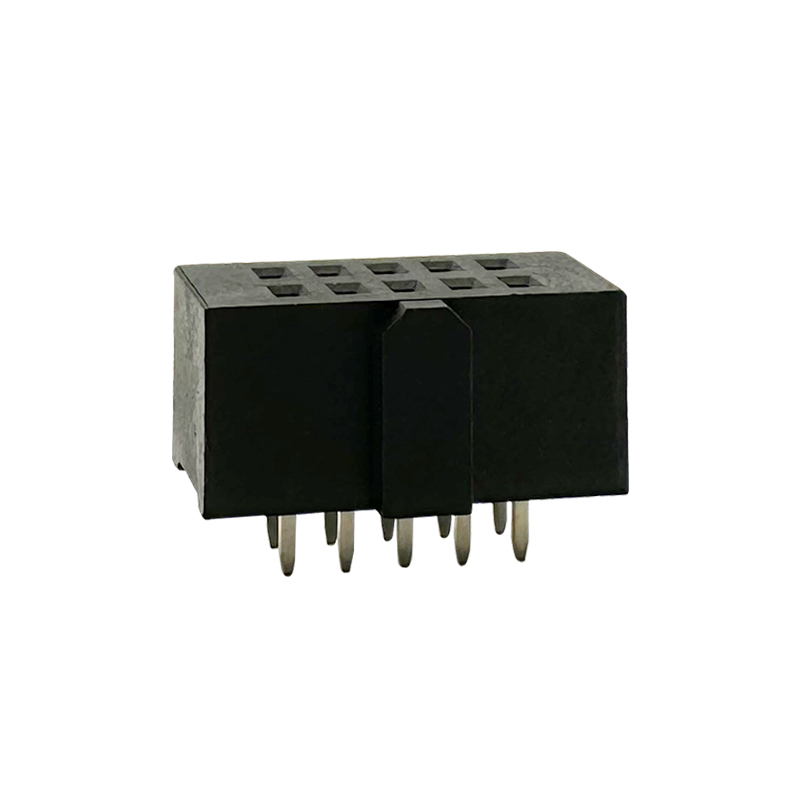

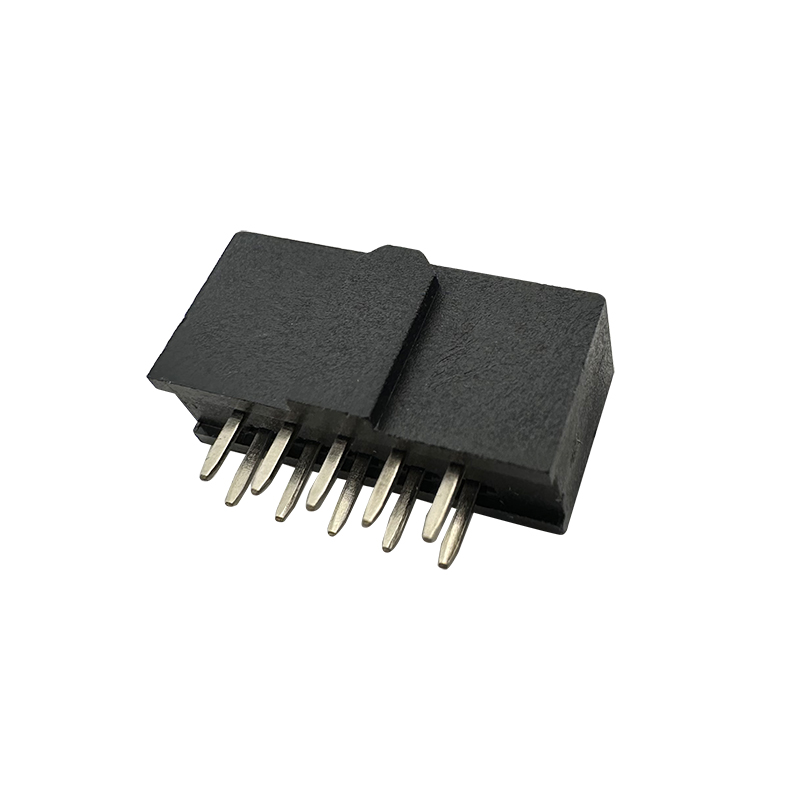

-Connector Type:
Female headers have sockets designed to accept male pins or headers securely,
facilitating easy connection and disconnection of components.
-Height: The
height of 8.5mm refers to the total vertical distance from the bottom of the
PCB to the top of the connector when mounted. This dimension is crucial for
determining clearance requirements in tight spaces or when components need to
be mounted close together.
-Mounting Style:
Designed for Surface Mount Technology (SMT), where the connectors are directly
soldered onto the surface of the PCB. This method eliminates the need for
through-holes, allowing for a more compact and space-efficient design on the
PCB.
-Material:
Typically constructed from durable materials such as high-temperature plastic
for the housing and metal (often tin-plated brass or phosphor bronze) for the
contacts. These materials ensure mechanical strength and reliable electrical
connections, even in demanding environments.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
