Brand ERYCO
Product origin CHINA
Electrical
Rated voltage: 300V
Rated current: 8A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Product parameter:
Material:
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Applications
1.Printed Circuit Board (PCB) Assemblies
2.Industrial Control Systems
3.Telecommunications Equipment
4.Consumer Electronics
Features
-Termination Method: Allows for easy and secure wire termination using appropriate crimping tools or by tightening screws, depending on the terminal block design.

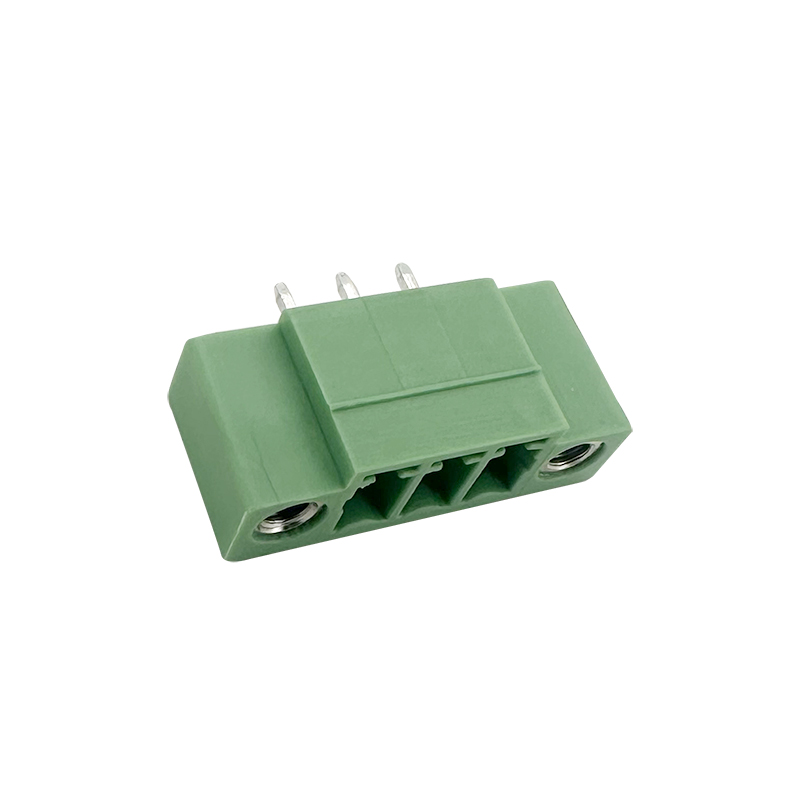

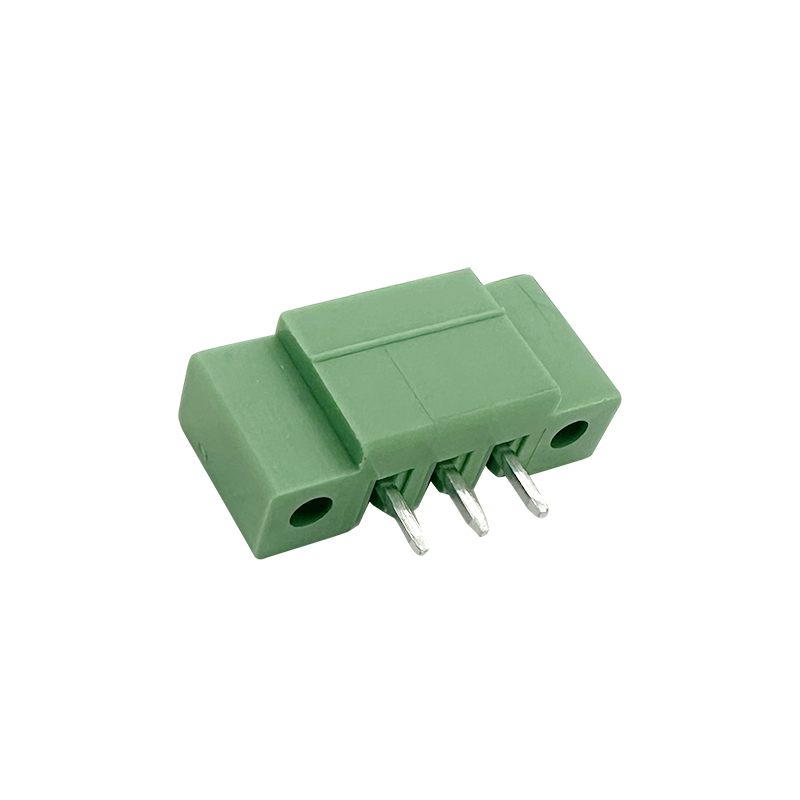

-Mounting Options: Designed with fixed holes for PCB (Printed Circuit Board) mounting using through-hole technology. This feature provides a stable and secure attachment to the PCB, ensuring reliability in various operating conditions.

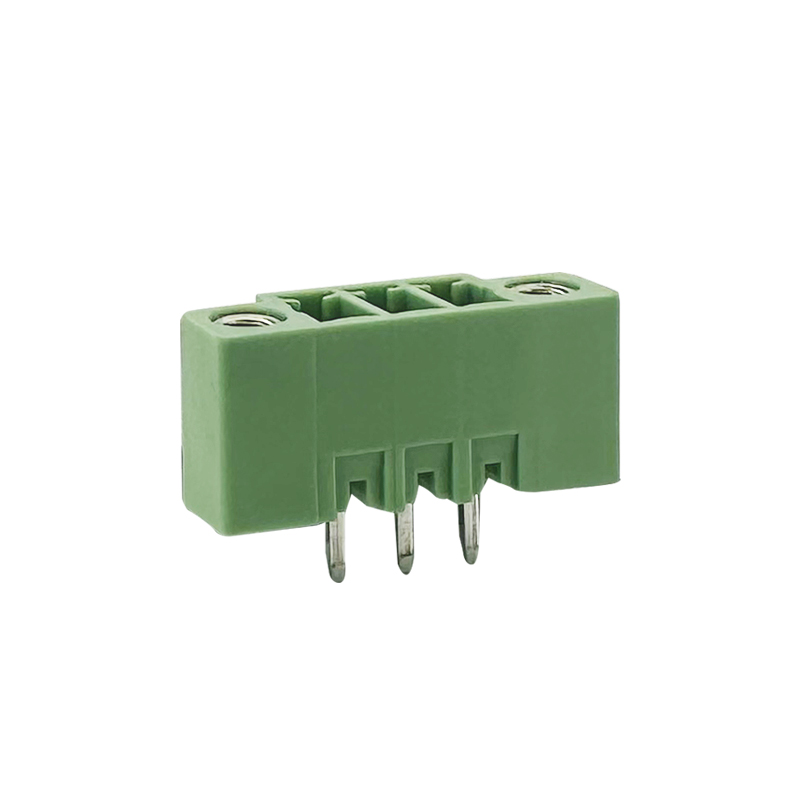

-Orientation: The straight pin orientation allows for vertical insertion into PCBs, facilitating neat and compact board designs, especially in applications where space is limited horizontally.
-Environmental Considerations: Resistant to environmental factors such as temperature variations, humidity, and mechanical stress, ensuring reliable performance in diverse operating conditions.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
