Brand ERYCO
Product origin CHINA
Electrical
Rated voltage: 300V
Rated current: 8A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Product parameter:
Material:
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Applications
1.Printed Circuit Board (PCB) Assemblie
2.Industrial Control Systems
3.Telecommunications Equipment
4.Consumer Electronics
Features

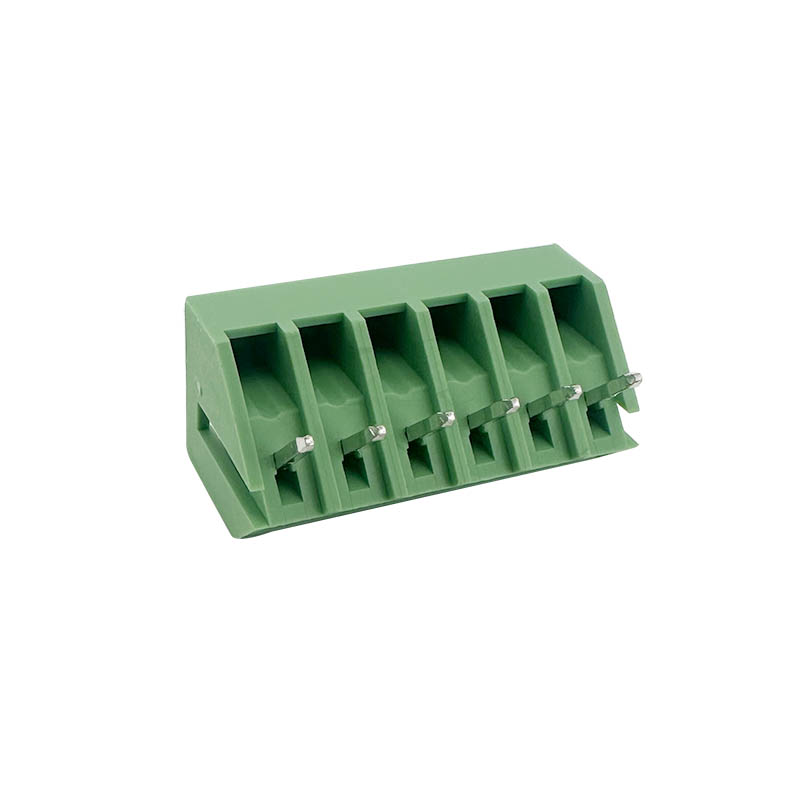

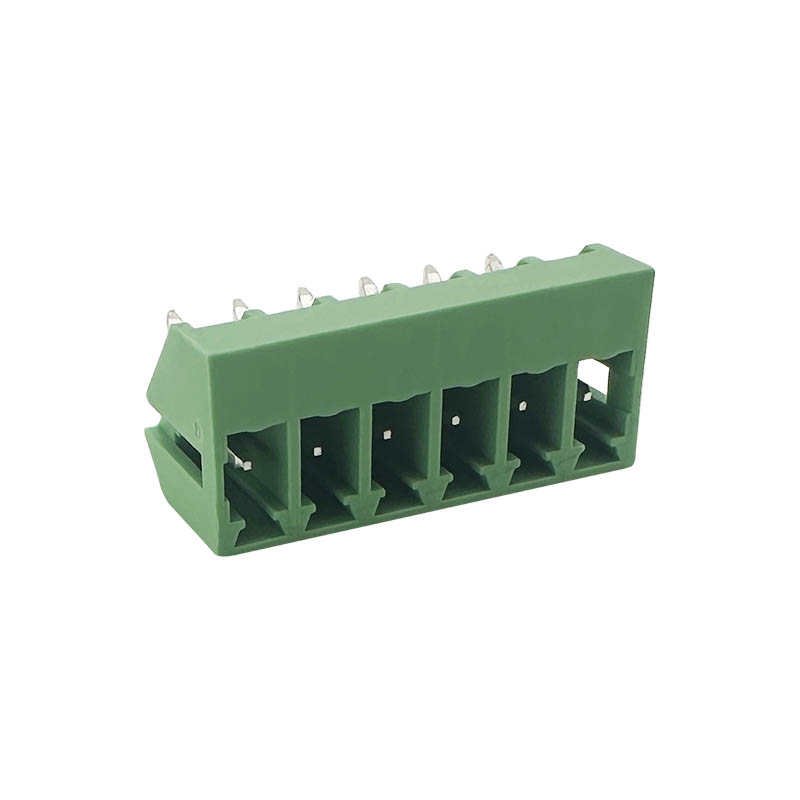

-Pitch Size: Refers to the center-to-center spacing between adjacent terminals. The 3.81mm pitch accommodates various wire sizes commonly used in electronic PCB designs.
-Connector Type: Designed with female sockets or receptacles that receive male pins or headers from a corresponding terminal block. This design allows for easy and secure connections and disconnections of wires or components.
-Material: Made from durable materials such as brass, copper, or tin-plated copper for excellent electrical conductivity and corrosion resistance. The housing material is typically a robust thermoplastic or thermoset material that provides insulation and mechanical support.
-Current Rating: Specifies the maximum current carrying capacity (in amps) that the terminal block can safely handle, ensuring safe operation under specified electrical conditions.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
