Product parameter:
Material:
Connector body:
Brass per QQ-B-626 ,gold Plating or nickel
Center contact
Male: Brass,gold Plating
Center contact
Female: Beryllium copper,gold Plating
Insulator: PTFE
Gasket:Silicone
rubber
Crimp
Ferrule:Annealed copper
VSWR : 1.15 +0 .02 f (GHz) for Straight connector typical
1.25 +0 .025 f (GHz) for Right angle connector typical
Contact Resistance Center contact: 2.0 mΩ
Body: 2.0 mΩ
Insulation Resistance: 5,000 MΩ
Mechanical Specifications:
Mating:1/4"-36 UNS thread coupling
Cable retention:6kgf typical
Durability:500Cycles Min.
Coupling nut retention:18kgf Min.
Temperature Range: - 55°C to +155°C
Applications
1.Military and
Aerospace Electronics
2.Industrial
Automation
3.Medical Devices
4.Consumer
Electronics
Features

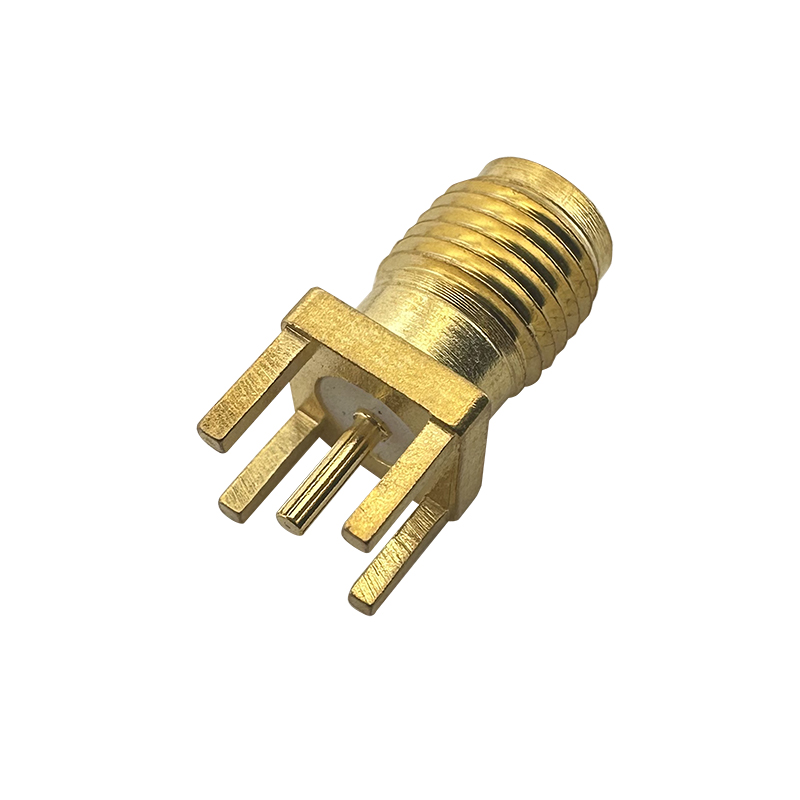

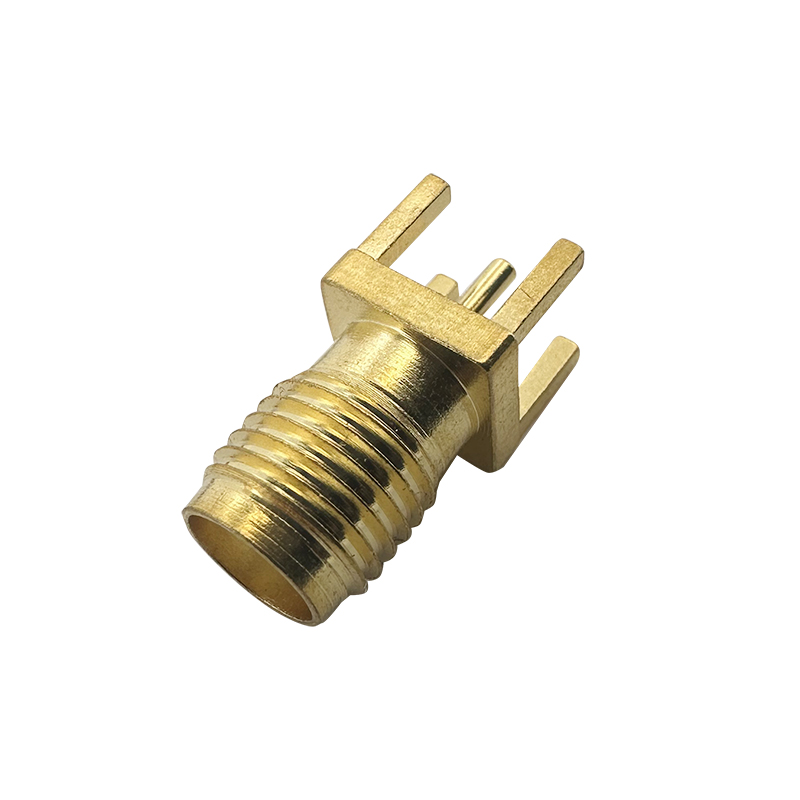

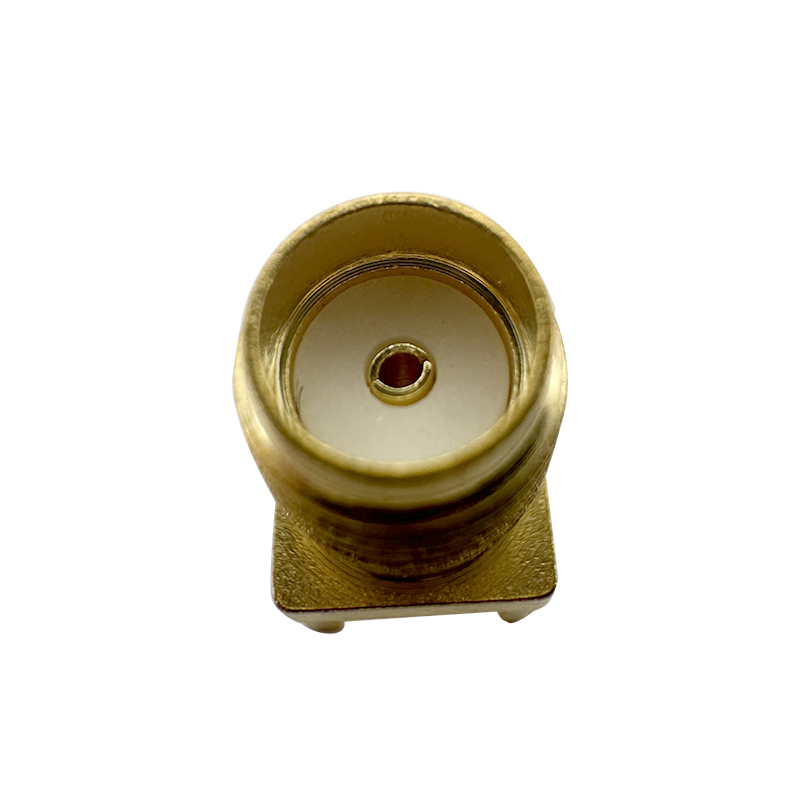

-Gender: Female
jack, designed to receive a male SMA connector (plug).
-Impedance:
Standard impedance of 50 ohms, which is typical for RF applications.
-Frequency Range:
Supports frequencies typically up to several GHz, depending on the specific design
and construction quality.
-Durability:
Constructed with materials suitable for maintaining electrical performance over
a wide range of temperatures and environmental conditions.
Dimensions(Please refer to the attached 2D drawings for
detailed specifications.):
