Amphenol RF 901-143-6RFX Compatible PCB Mount SMA Connector (Jack,Female,50Ω)：ERYAYMA002-B

Amphenol RF 901-143-6RFX Compatible PCB Mount SMA Connector (Jack,Female,50Ω)：ERYAYMA002-B

Brand ERYCO

Product origin CHINA

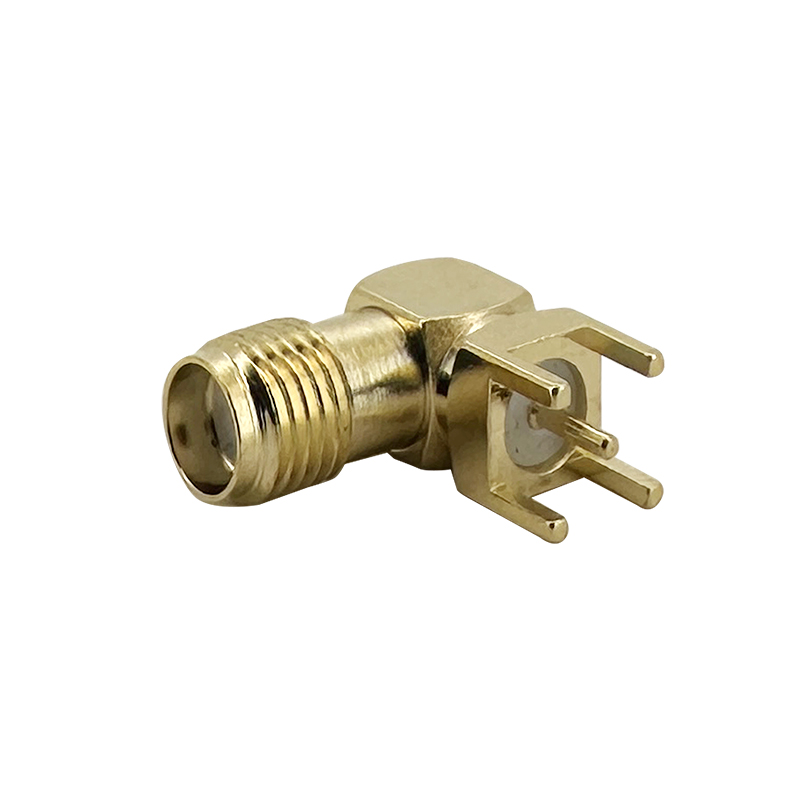

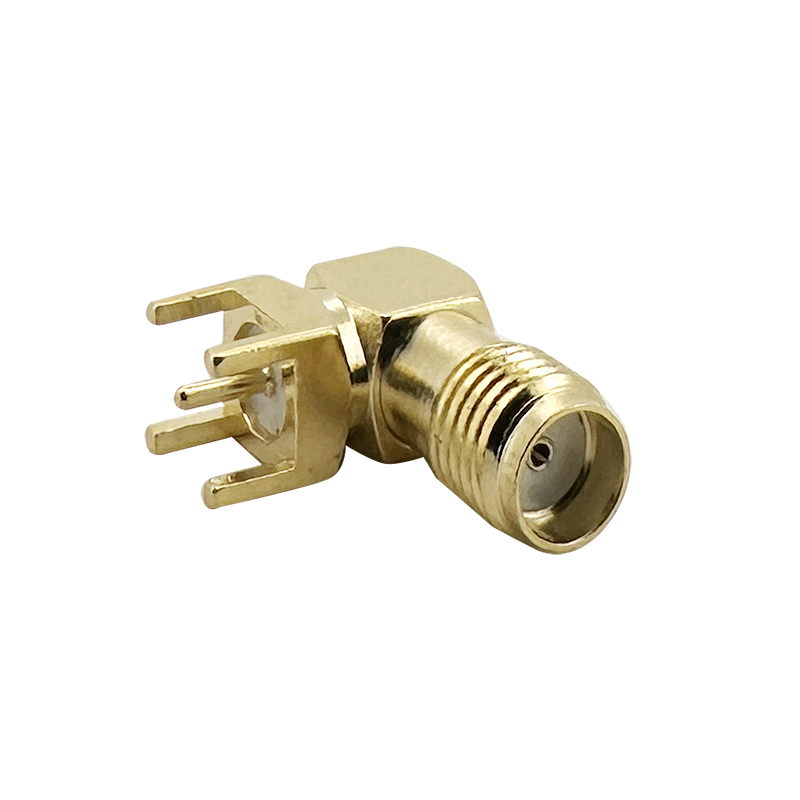

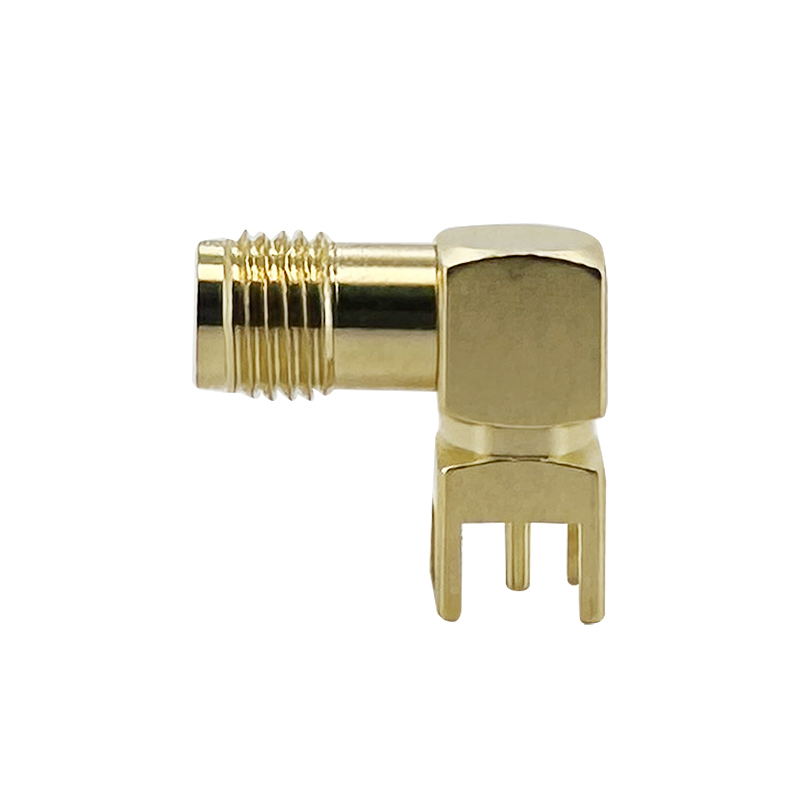

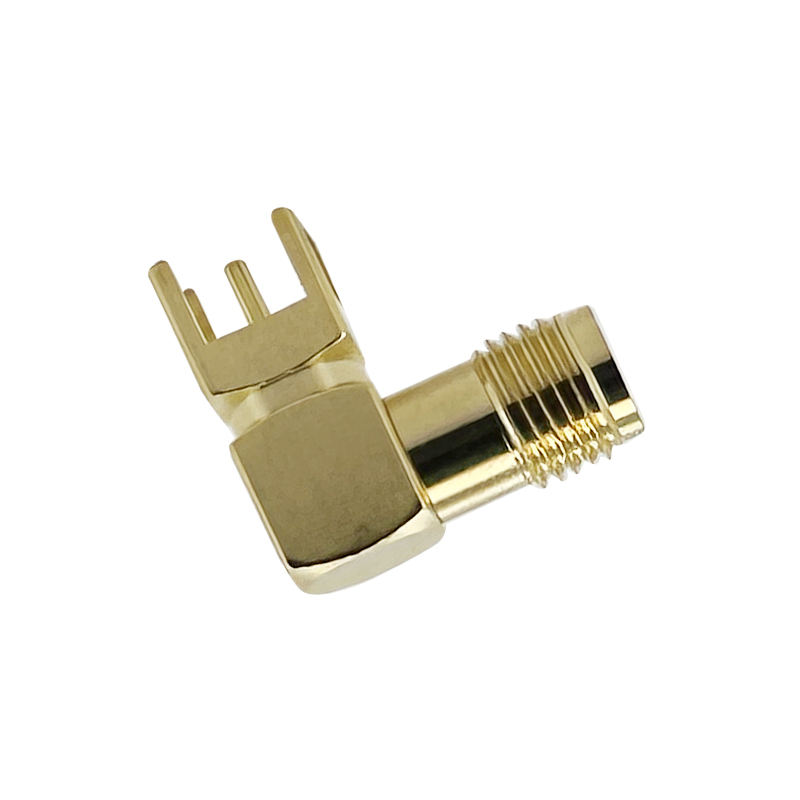

PCB Mount SMA Connector With Jack Female Right Angle Type

Impedance: 50 Ω

Frequency Range Semi-rigid cable: 0-18 GHz

Flexible cables: 0-12.4 GHz

Voltage Rating : 335 volts rms.

Dielectric Withstanding Voltage : 500 volts rms.

Product parameter:

Material:

Connector body: Brass per QQ-B-626 ,gold Plating or nickel

Center contact Male: Brass,gold Plating

Center contact Female: Beryllium copper,gold Plating

Insulator: PTFE

Gasket:Silicone rubber

Crimp Ferrule:Annealed copper

VSWR : 1.15 +0 .02 f (GHz) for Straight connector typical

1.25 +0 .025 f (GHz) for Right angle connector typical

Contact Resistance Center contact: 2.0 mΩ

Body: 2.0 mΩ

Insulation Resistance: 5,000 MΩ

Mating:1/4"-36 UNS thread coupling

Cable retention:6kgf typical

Durability:500Cycles Min.

Coupling nut retention:18kgf Min.

Temperature Range: - 55°C to +155°C

Applications

1.Automotive

2.Test and Measurement Equipment

3.Antenna Systems

4.Military and Aerospace Electronics

Features

-Design: Compact and robust design suitable for integration into densely packed PCB layouts.

-Compatibility: Compatible with other SMA connectors, ensuring interoperability in mixed RF systems.

-Termination: Typically soldered directly onto the PCB for a secure electrical and mechanical connection.

-Standards: Complies with SMA connector standards, ensuring reliability and consistency in performance.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
