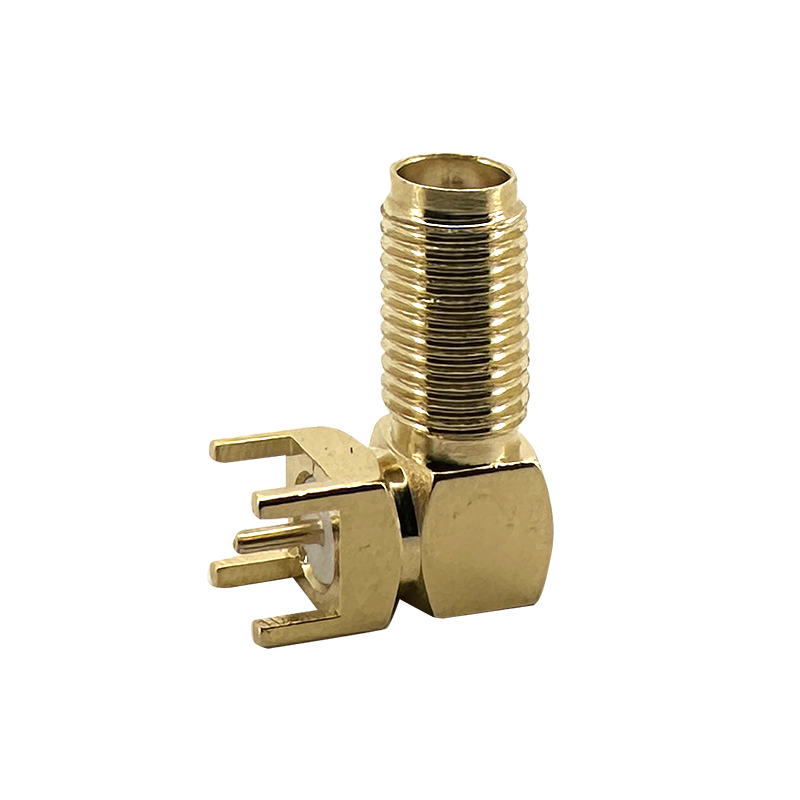

PCB Mount SMA Connector (Jack,Female,50Ω)：ERYAYMA005

PCB Mount SMA Connector (Jack,Female,50Ω)：ERYAYMA005

Brand ERYCO

Product origin CHINA

SMA Cable Connector With Plug Male Straight Type (Cable Group: RG-316,RG-174,RG-188;Q1,D316 Or Other)

Impedance: 50 Ω

Frequency Range Semi-rigid cable: 0-12.4 GHz

Flexible cables: 0-12.4 GHz

Voltage Rating : 335 volts rms.

Dielectric Withstanding Voltage : 500 volts rms.

2D(PDF)Drawing

Product parameter:

Material:

Connector body: Brass per QQ-B-626 ,gold Plating or nickel

Center contact Male: Brass,gold Plating

Center contact Female: Beryllium copper,gold Plating

Insulator: PTFE

Gasket:Silicone rubber

Crimp Ferrule:Annealed copper

VSWR : 1.15 +0 .02 f (GHz) for Straight connector typical

1.25 +0 .025 f (GHz) for Right angle connector typical

Contact Resistance Center contact: 2.0 mΩ

Body: 2.0 mΩ

Insulation Resistance: 5,000 MΩ

Mating:1/4"-36 UNS thread coupling

Cable retention:6kgf typical

Durability:500Cycles Min.

Coupling nut retention:18kgf Min.

Temperature Range: - 55°C to +155°C

Applications

1.Medical Devices

2.Industrial Applications

3.Consumer Electronics

4.Automotive

Features

-Mounting Type: Designed for PCB (Printed Circuit Board) mounting, providing a secure and reliable connection directly to the circuit board.

-Frequency Range: Supports frequencies typically up to several GHz, depending on the specific design and construction quality.

-Durability: Constructed with materials suitable for maintaining electrical performance over a wide range of temperatures and environmental conditions.

-Design: Compact and robust design suitable for integration into densely packed PCB layouts.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
