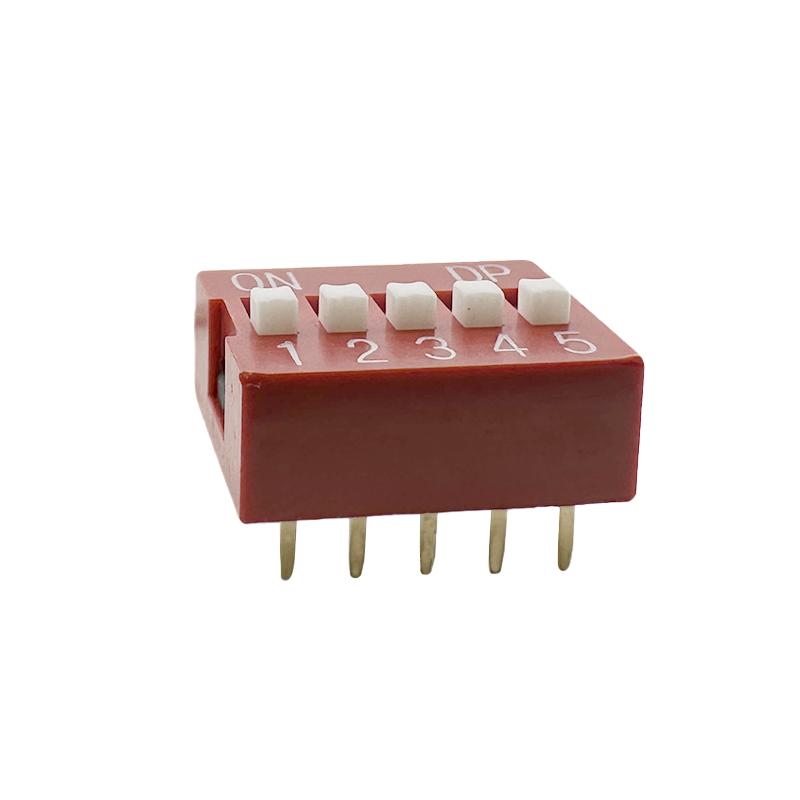

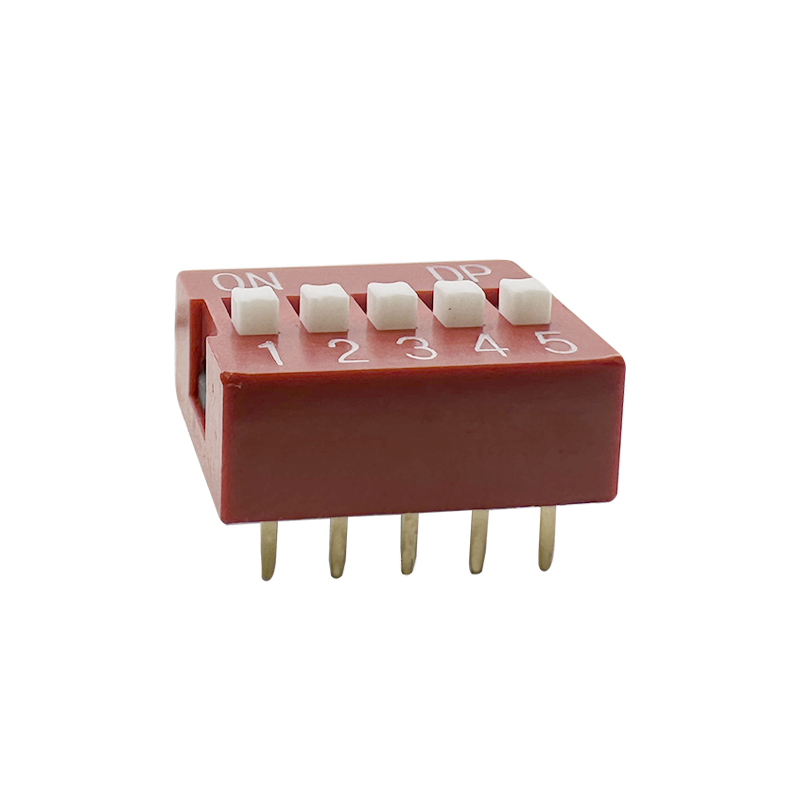

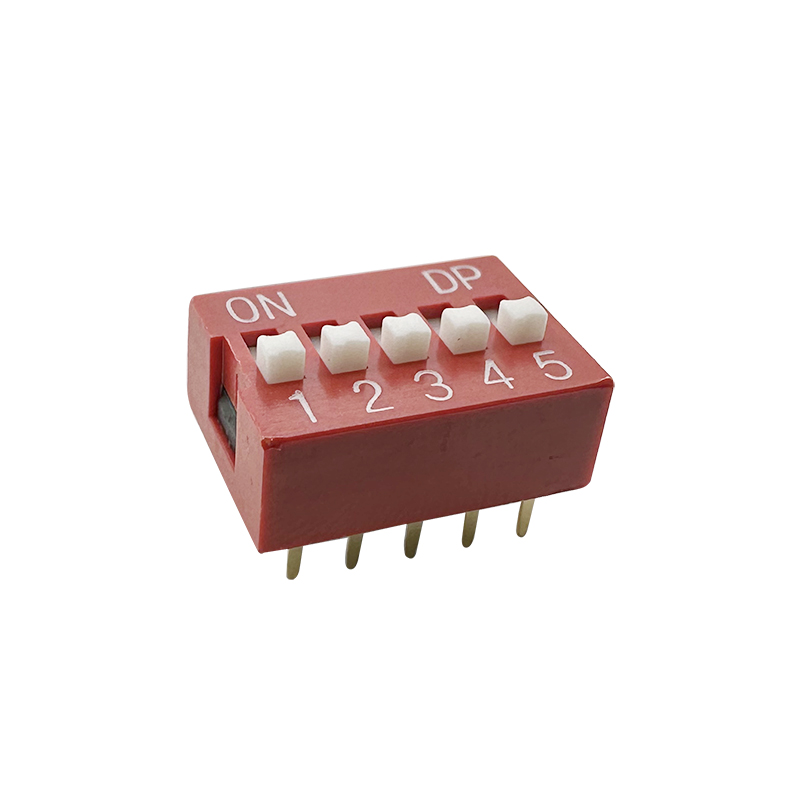

Product parameter:
Material:
Cover: PBT plastic
(red or blue)
Base: PBT plastic
(black)
Operator: POM
plastic (white)
Stock: epoxy resin
potting
Terminal: tin
plated phosphor bronze, contact gold plated 3u"
Sealing tape:
polyimide KAPTON
Switching
Characteristics:
Switch Capacity:
25mA at 24VDC
Insulation
Resistance:100MΩ at 250VDC
Contact
Resistance: 50mΩ max.
Insulation
strength: 500VAC / 1min
Operation Force :
1000gf max.
Electrical life:
2000 times
Operation
Temp:-20ºC~+70ºC
Welding
requirements:
Manual welding:
320 degrees C no more than 2 seconds. (30 watt iron max.)
Wave soldering:
260 degrees C no more than 5 seconds, in the welding and cleaning process
switch is open state.
Applications
1.Embedded Systems
& Microcontrollers
2.Industrial
Automation & Control
3.Communication
& Networking Devices
4.Automotive &
Aerospace Applications
Features
-SPST
Configuration: Single ON/OFF control per switch position.
-Binary &
Address Selection: Commonly used for device configuration.
-Contact Material:
Gold-plated or tin-plated copper alloy for corrosion resistance.
-Pitch Size:
Standard 2.54mm (0.1 inches) between pins.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
