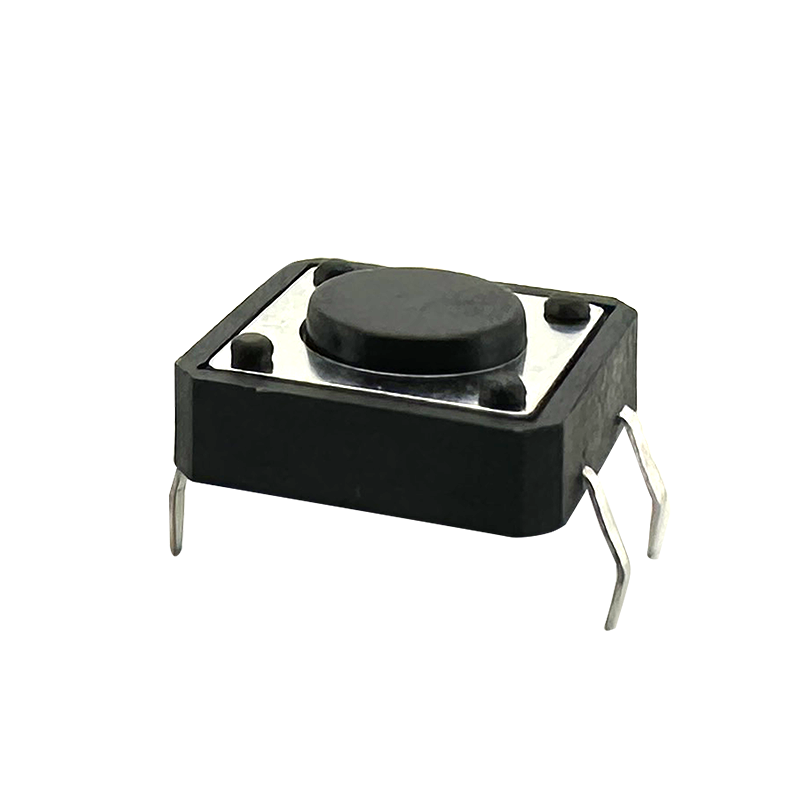

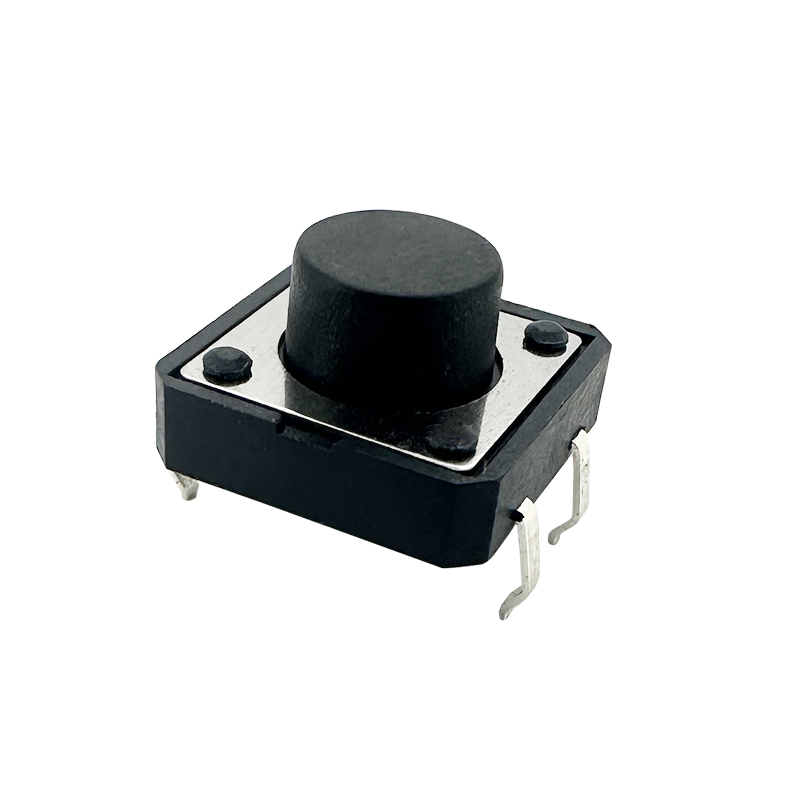

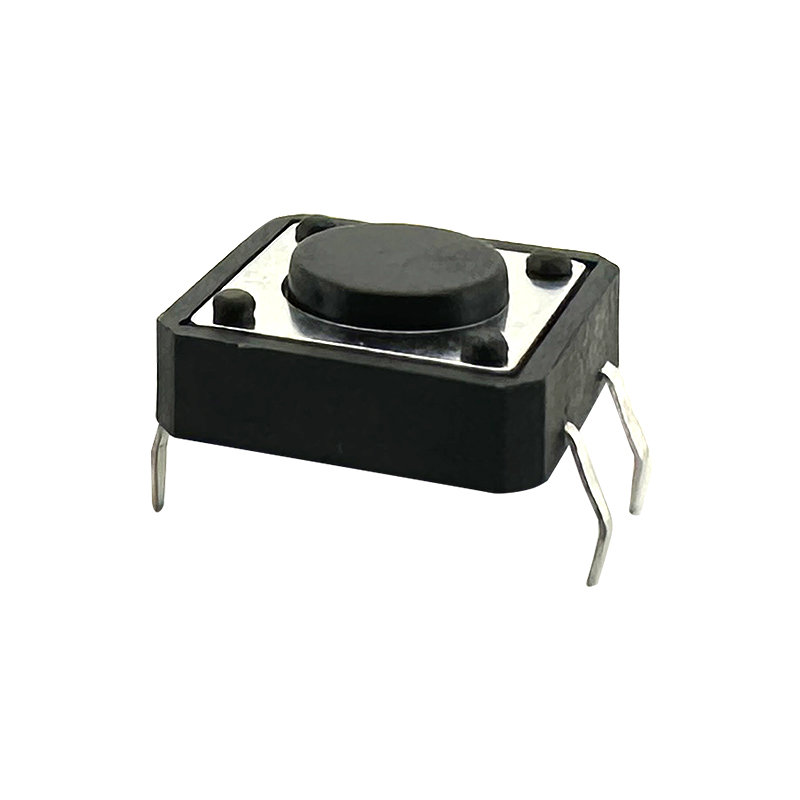

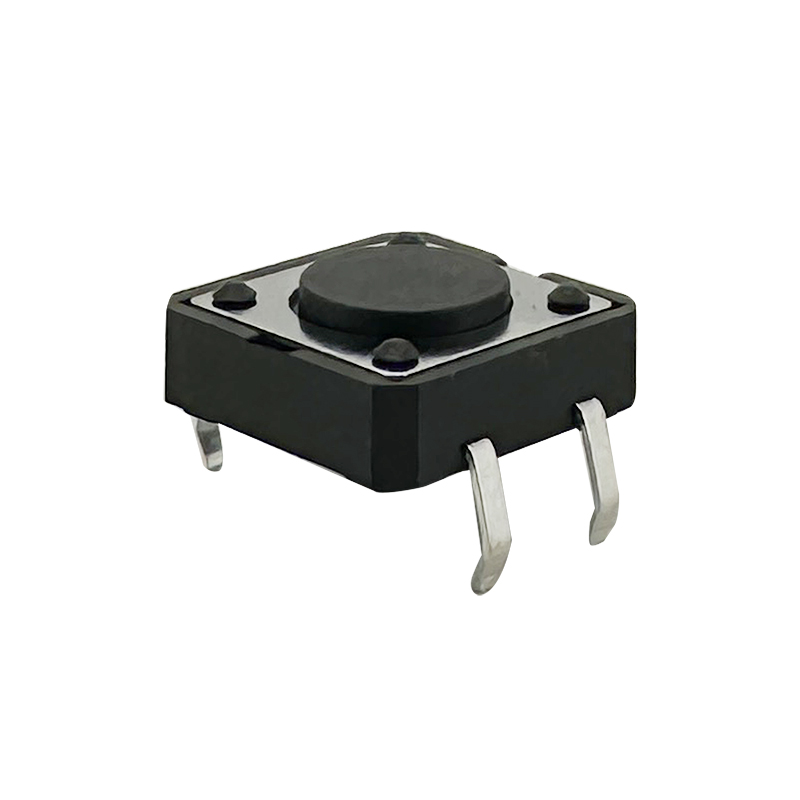

Tactile Switch :ERYGYS1202

Tactile Switch :ERYGYS1202

Brand ERYCO

Product origin CHINA

Tactile Switch

ELECTRICAL

1.Rating: 50mA 12VDC

2.Contact Resistance : 50mΩ max(initial)

3.Insulation Resistance: 100MΩ(minDC 250V)

4.Dielectric Strength : AC250V(50/60Hz for 1minute)

5.Electrically Life: 100000cycles

6.Environment temperature:-20ºC~+70ºC

7.Operating Force: 180/250(±30gf)

8.Seal temperature:260ºC~ 280ºC

2D(PDF)Drawing

Product parameter:

Applications

1.Industrial Controls

2.Automotive Applications

3. Industrial Equipment

4. Medical Devices

Features

-Switch Configuration: They are available in various configurations, such as single-pole single-throw (SPST) or multi-pole multi-throw (MPMT), allowing them to be used in different circuit designs.

-Mounting Type: Tactile switches can be either through-hole mounted (where leads go through holes in the PCB) or surface-mount (where the switch is soldered directly onto the surface of the PCB).

-Durability: Tactile switches are designed to withstand a large number of actuations, making them suitable for frequent use. They often have a long lifespan, which can range from thousands to millions of actuations depending on the design and quality.

-Size and Shape: They come in various sizes and shapes to fit different applications and design requirements. Common forms include small surface-mount components for electronics and larger, more robust switches for industrial or consumer electronics.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
