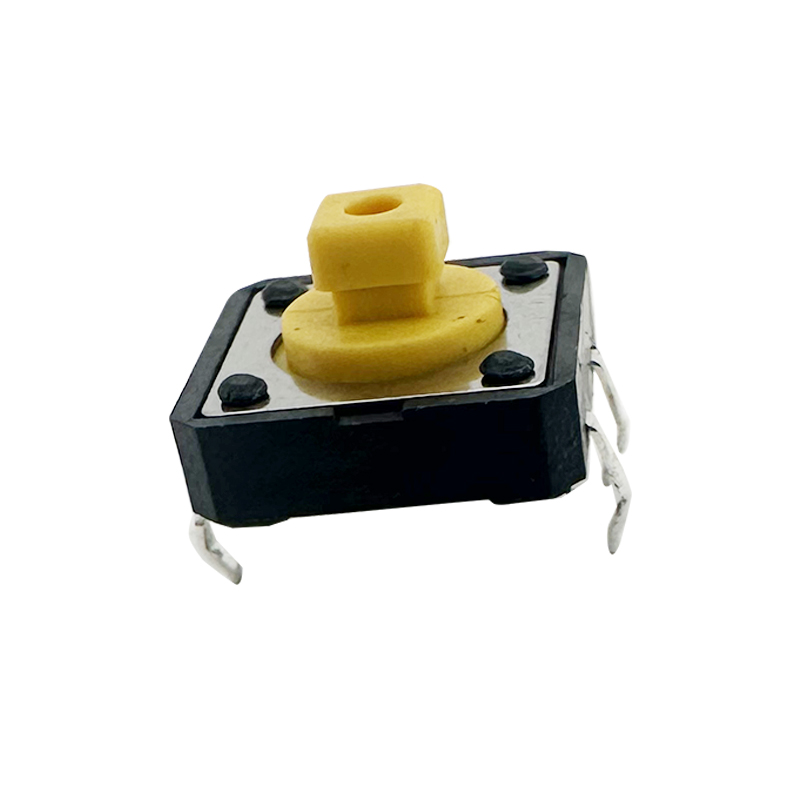

Tactile Switch :ERYGYS1204

Tactile Switch :ERYGYS1204

Brand ERYCO

Product origin CHINA

ELECTRICAL

1.Rating: 50mA 12VDC

2.Contact Resistance : 50mΩ max(initial)

3.Insulation Resistance: 100MΩ(minDC 250V)

4.Dielectric Strength : AC250V(50/60Hz for 1minute)

5.Electrically Life: 100000cycles

6.Environment temperature:-20ºC~+70ºC

7.Operating Force: 180/250(±30gf)

8.Seal temperature:260ºC~ 280ºC

2D(PDF)Drawing

Product parameter:

Applications

1. Consumer Electronics

2. Automotive

3. Industrial Equipment

4. Consumer Appliances

Features

-Mounting Type: Tactile switches can be either through-hole mounted (where leads go through holes in the PCB) or surface-mount (where the switch is soldered directly onto the surface of the PCB).

-Environmental Resistance: Some tactile switches are designed to be resistant to environmental factors such as moisture, dust, or chemicals, which is important for use in rugged or harsh conditions.

-Travel Distance: These switches generally have a defined travel distance, meaning the distance the switch moves from the resting position to the actuation point. This can impact how users experience the switch in terms of responsiveness and comfort.

-Durability: Tactile switches are designed to withstand a large number of actuations, making them suitable for frequent use. They often have a long lifespan, which can range from thousands to millions of actuations depending on the design and quality.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
