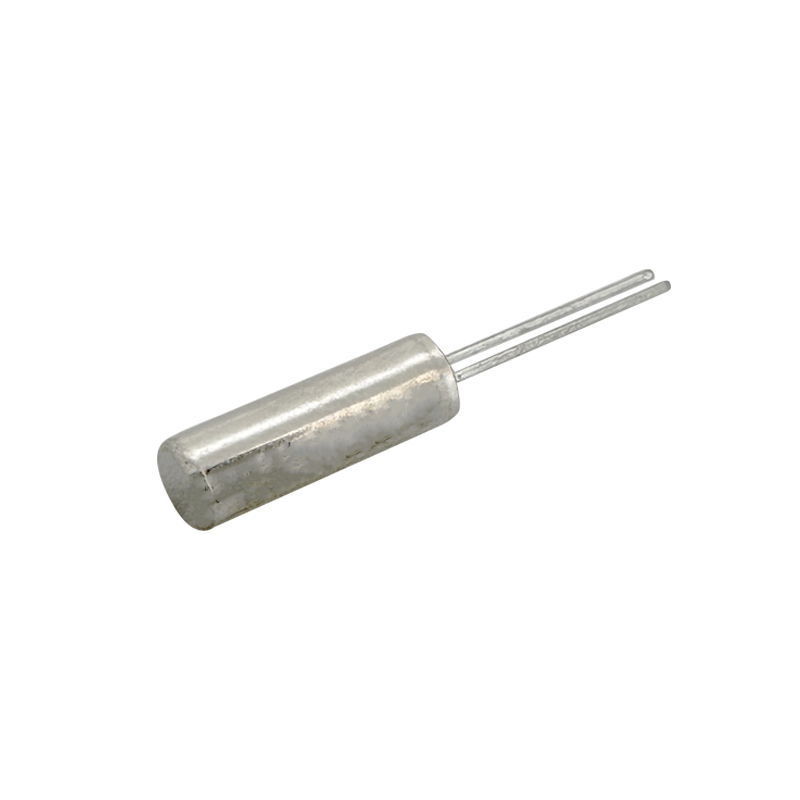

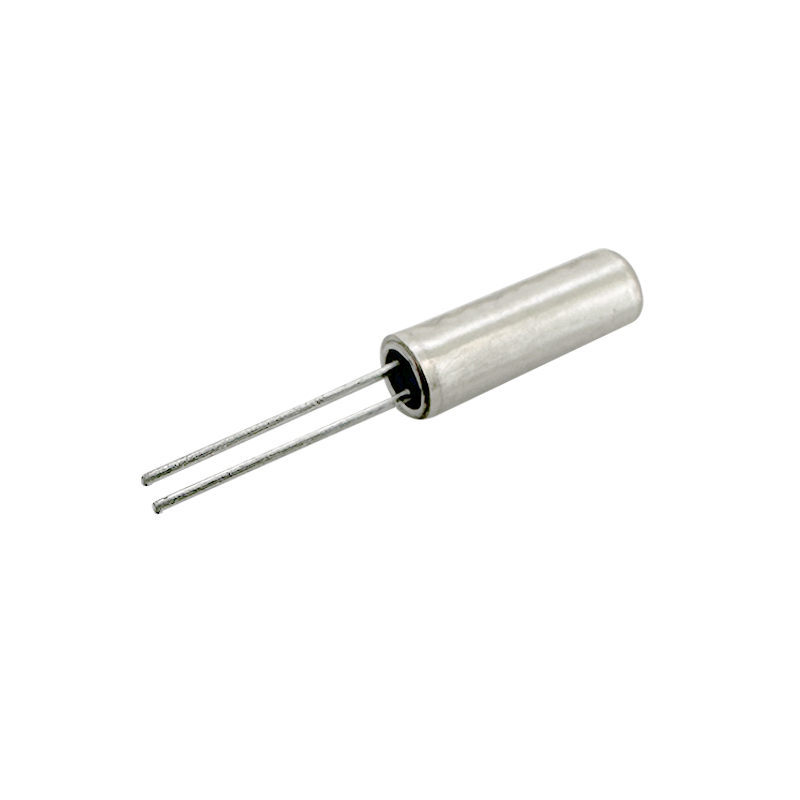

Brand ERYCO
Product origin CHINA
Dimensions(3.0x8.0mm)
Nominal frequency range:32 768K . Hz
Crystal cut:Fundamental [AT–cut]
Storage temperature range:-40 ℃∼ +85℃
Operating temperature range:-20℃~+70℃,-40℃~+85℃
Product parameter:
Material:
Frequency temperature characteristics (Ref. to +25 ):±20x10-6，or specify
Frequency tolerance (at +25℃)：±10X10-6,±20X10-6，±30X10-6，or specify
Equivalent series resistance：50K max
Load capacitance：12.5pF,or specify
Shunt capacitance：1.6pF max
Level of drive：1.0 μW max
Applications
1.Real-Time Clocks (RTCs)
2.Wearable Devices
3.Consumer Electronics
4.Communication Systems
Features
-Frequency Stability: Provides a stable oscillation frequency of 32.768 kHz, which is commonly used as a timekeeping reference in real-time clocks (RTCs) and for synchronization purposes in digital systems.
-Compact Size: The 2.0x6.0 mm DIP package is relatively small, making it suitable for PCB designs where space is limited.
-High Accuracy: Offers high precision in frequency output, crucial for maintaining accurate timekeeping and synchronization in electronic devices.
-Temperature Stability: Typically designed with temperature-compensated materials or temperature-compensated cuts to minimize frequency variations over temperature changes.
