Brand ERYCO
Product origin CHINA

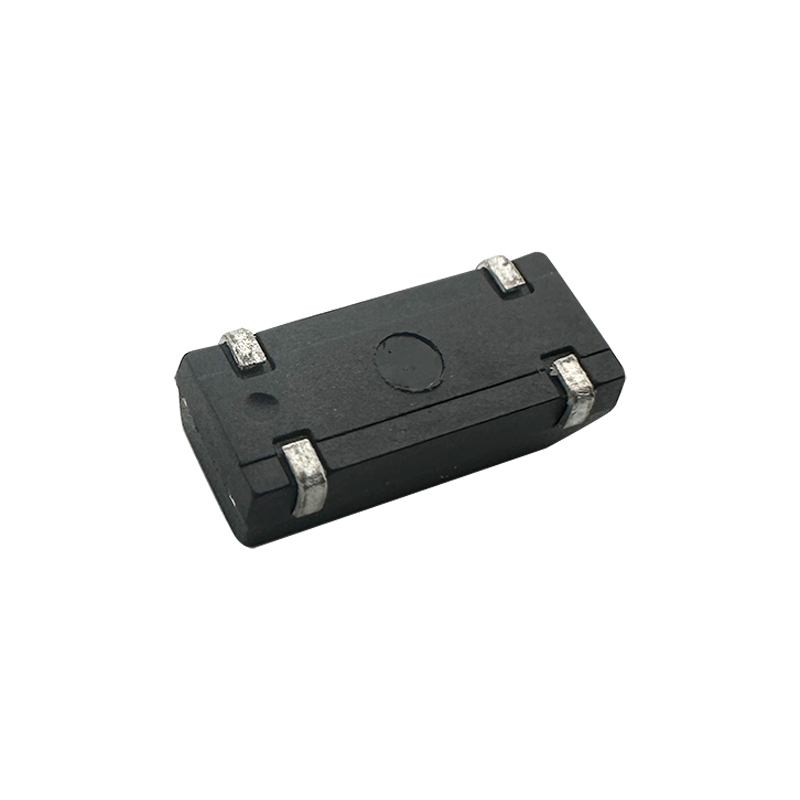

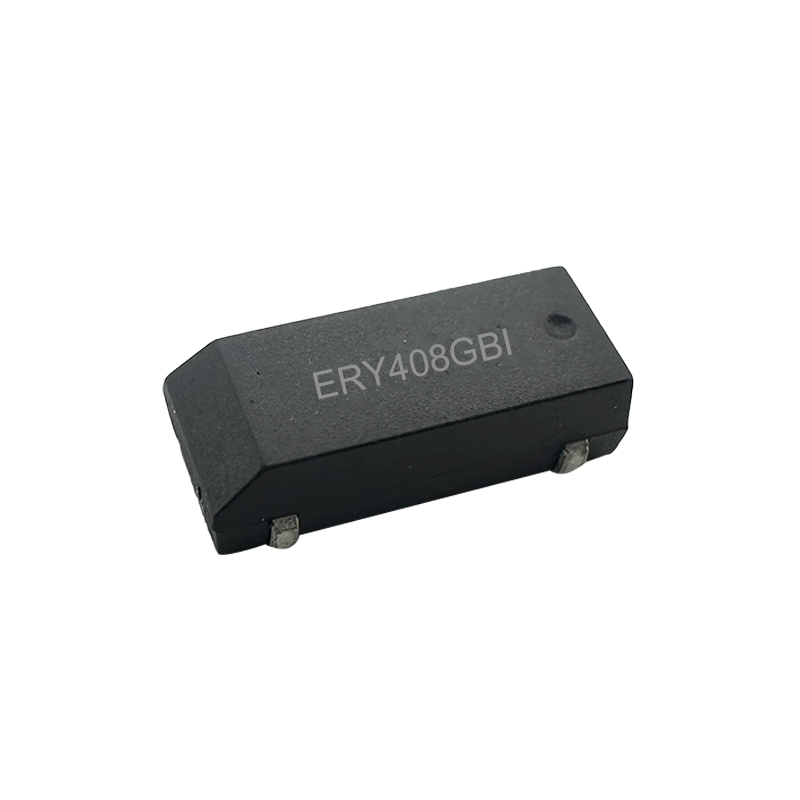

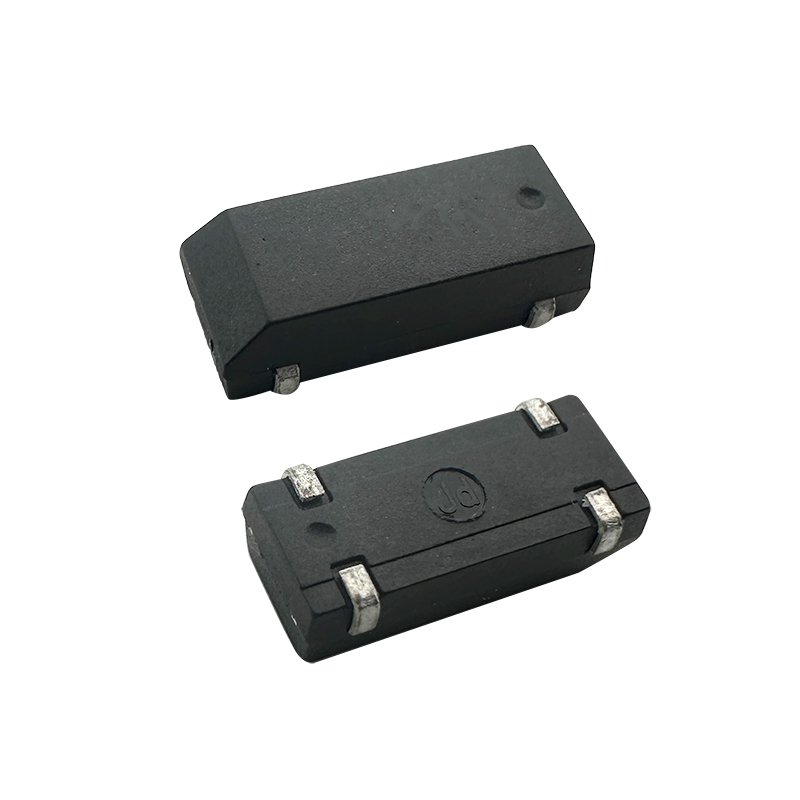

Dimensions(8.0x3.8x2.4mm)
Nominal frequency range:32.768KHz
Crystal cut:Fundamental [AT-cut]
Storage temperature range:-55°C~+125°C
Product parameter:
Material:
Turnover temperature:-25±5℃
Parabolic coefficient:-0.04x10-6/℃2 Max.
Frequency tolerance(at+25°C)：±20x10-6.or specify
Equivalent series resistance：50KΩ max.
Load capacitance：12.5pF,or specify
Shunt capacitance：0.9pF max.
Applications
1.Real-Time Clocks
2.Wearables and IoT Devices
3.Automotive Electronics
4.Communication Devices
Features
-32.768 kHz is the standard frequency for real-time clock (RTC) applications, commonly used in embedded systems, clocks, and watches.
-SMD (Surface-Mount Device): It’s designed for easy mounting directly onto a PCB (printed circuit board), suitable for automated assembly processes.
-The drive level is the power supplied to the crystal to excite it to oscillate. It's generally low for 32.768 kHz crystals, often around 1 µW to 100 µW.
-Typically, crystals have an aging rate of ±5 ppm/year or less, meaning the frequency may shift slightly over time due to factors like temperature and stress.
