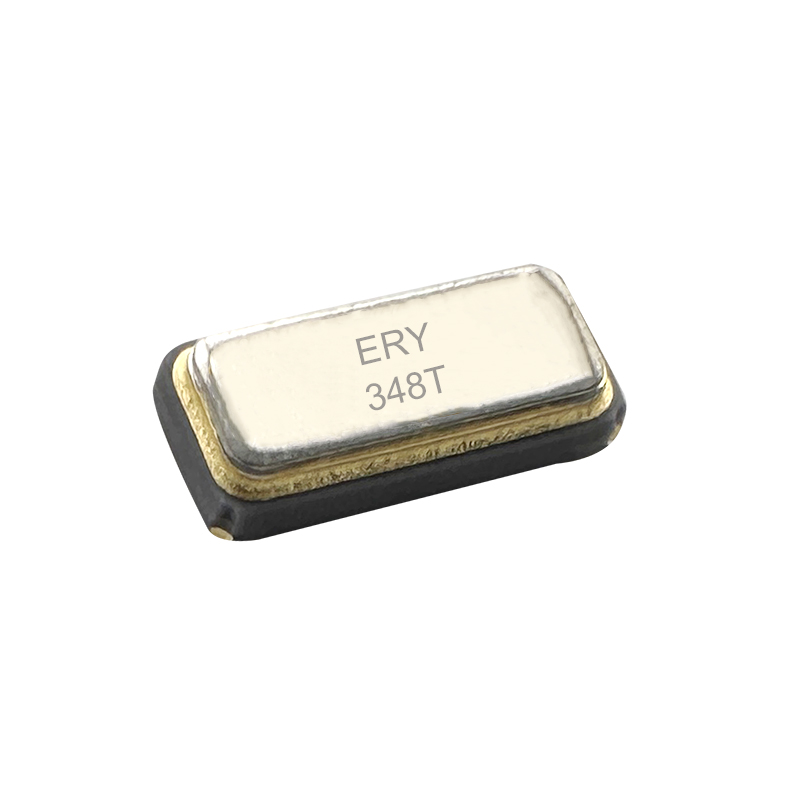

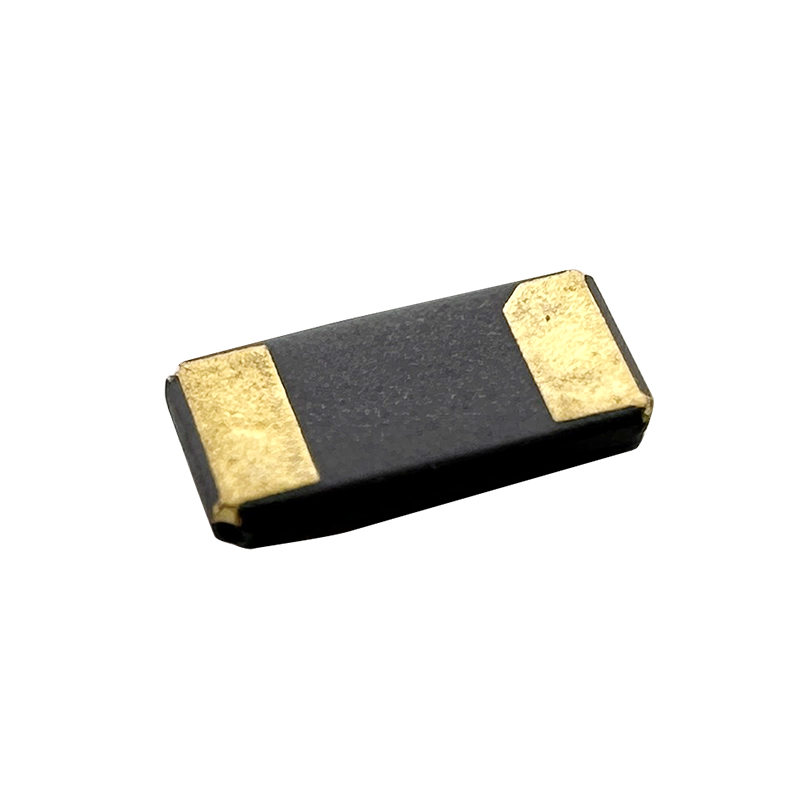

32.768KHz Crystal Units 3.2x1.5x0.8mm SMD:ERYNYC3215

32.768KHz Crystal Units 3.2x1.5x0.8mm SMD:ERYNYC3215

Brand ERYCO

Product origin CHINA

Outline and Dimensions [unit:mm]

32.768KHz Crystal Units 3.2x1.5x0.8mm SMD:ERYNYC-3215

Dimensions (3.2x1.5x0.8mm)

Nominal frequency range:32.768KHz

Level of drive: 0.5μW (1.0μW max.)

Storage temperature range:-55°C-+125°C

Operating temperature range:-40℃-+85°C

Turnover temperature:-25± 5°C

2D(PDF)Drawing

Product parameter:

Material:

Parabolic coeficient:-0.04x10-6/℃2 Max

Frequencytolerance (at +25°C):±20x10-6,or specify

Equivalent series resistance：70KΩ max

Load capacitance：12.5pF,or specify

Shunt capacitance：1.0pF max

Applications

1.Communication Equipment

2.Industrial Automation

3.Medical Devices

4.Automotive Electronics

Features

-Frequency Stability: Provides a stable oscillation frequency of 32.768 kHz, ideal for real-time clock (RTC) applications, timing circuits, and synchronization purposes.

-Compact Size: The 3.2x1.5x0.8 mm SMD package is compact, suitable for modern PCB designs where space efficiency is crucial.

-High Accuracy: Offers high precision in frequency output, ensuring reliable timekeeping and synchronization in electronic devices.

-Low Power Consumption: Designed to consume minimal power, making it suitable for battery-operated devices and applications where energy efficiency is critical.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
