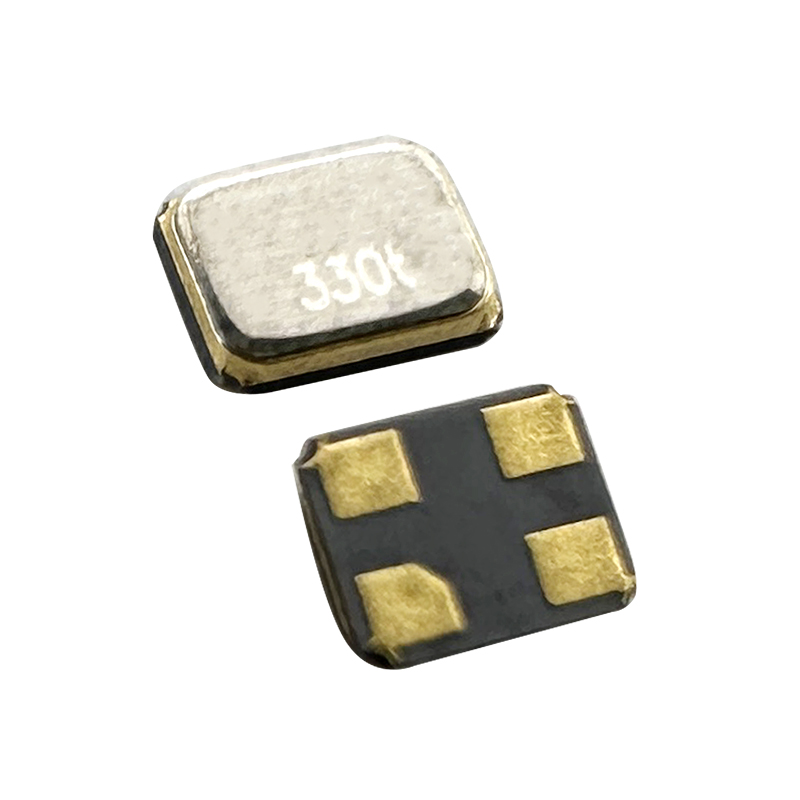

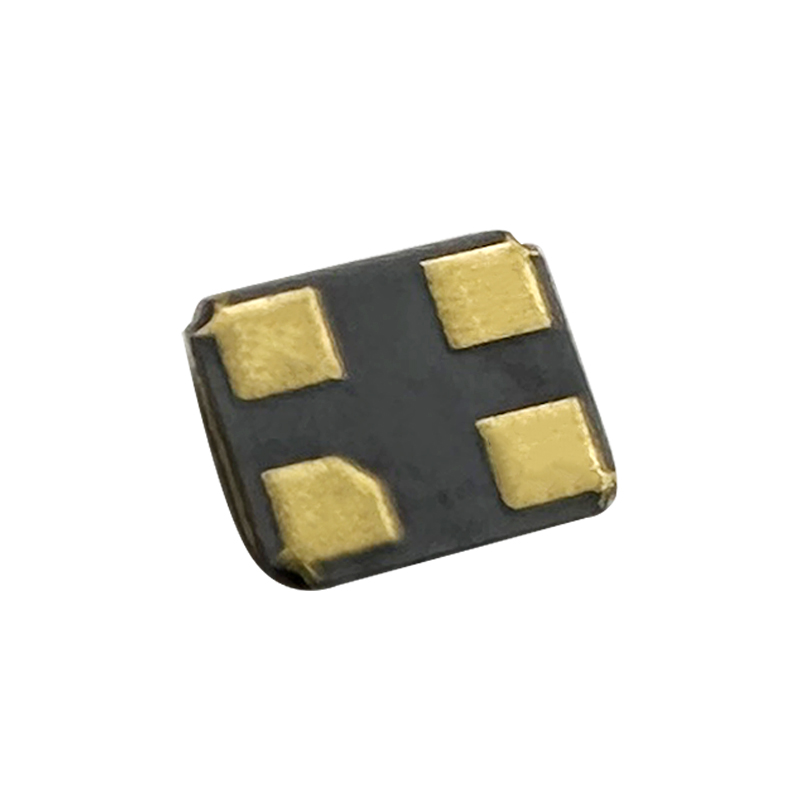

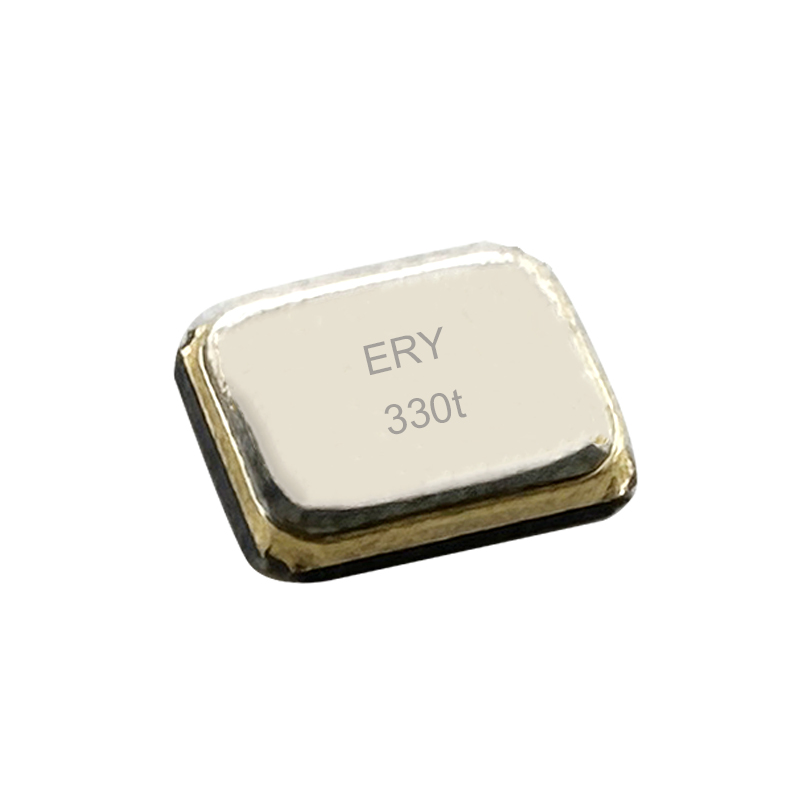

Crystal Units Ceramic SMD 1.6x1.2x0.35mm:ERYNYC1612

Crystal Units Ceramic SMD 1.6x1.2x0.35mm:ERYNYC1612

Brand ERYCO

Product origin CHINA

Dimensions (1.6x1.2x0.35)

Nominal frequency range：24.000~54.000 MHZ

Crystal cut：Fundamental [AT-cut]

Storage temperature range：-40°C~+85°C

Operating temperature range：-20°C~+70℃，30°C~+85°C

Frequency temperature characteristics(Ref. to +25°C)：±15x10-6，±25x10-6

2D(PDF)Drawing

Product parameter:

Material:

Frequencytolerance(at+25°C)：±15x10-6

Equivalent series resistance：100Ω: 24.000~29.999 MHz，800Ω: 30.000~54.000 MHz

Load capacitance：8pF

Shunt capacitance：3pF max.

Level of drive：10μW (100μW max.)

Outline and Dimensions [unit:mm]

Crystal Units Ceramic SMD 1.6x1.2x0.35mm:ERYNYC-1612

Applications

1.Wearable Devices

2.IoT Sensors

3.Consumer Electronics

4.Mobile Devices

Features

-Low Power Consumption: Designed to consume minimal power, making them suitable for battery-powered devices and applications where energy efficiency is essential.

-Temperature Stability: Often incorporates temperature-compensated cuts or materials to minimize frequency variations across temperature ranges, ensuring reliable operation in various environmental conditions.

-Aging Characteristics: Exhibits low aging rates, ensuring long-term stability and reliable performance of frequency output over extended periods of use.

-Shock and Vibration Resistance: Engineered to withstand mechanical stress and environmental factors encountered in various applications, ensuring durability and reliability.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
