Brand ERYCO
Product origin CHINA
Ultra thin/Dimensions (2.0x1.6x0.55)
Nominal frequency range:16.000-56.000 MHZ
Storage temperature range:-40℃~+85℃
Operating temperature range:-10℃~+60℃, -30℃~+85℃
Frequency temperature characteristics(Ref. to +25°C):±10x10-6，±15x10-6
Product parameter:
Material:
Frequency tolerance(at +25C)：±10x10-6
Equivalent series resistance：Please Refer to the Following ESR Table
Load capacitance：8pF, 12pF
Shunt capacitance：5pF max.
Level of drive：10μW （100μW max .)
Outline and Dimensions [unit:mm]

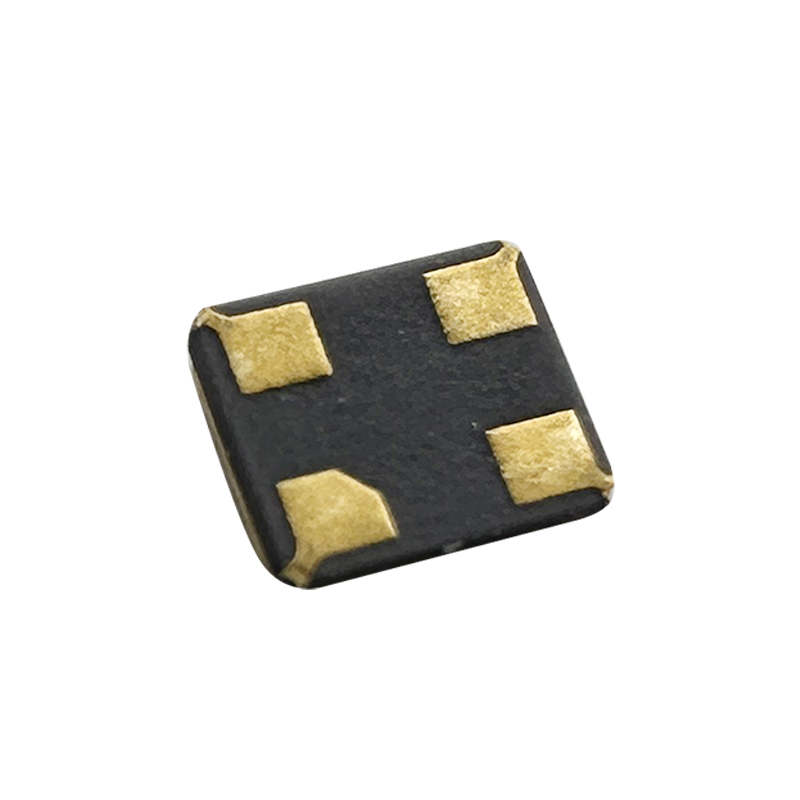

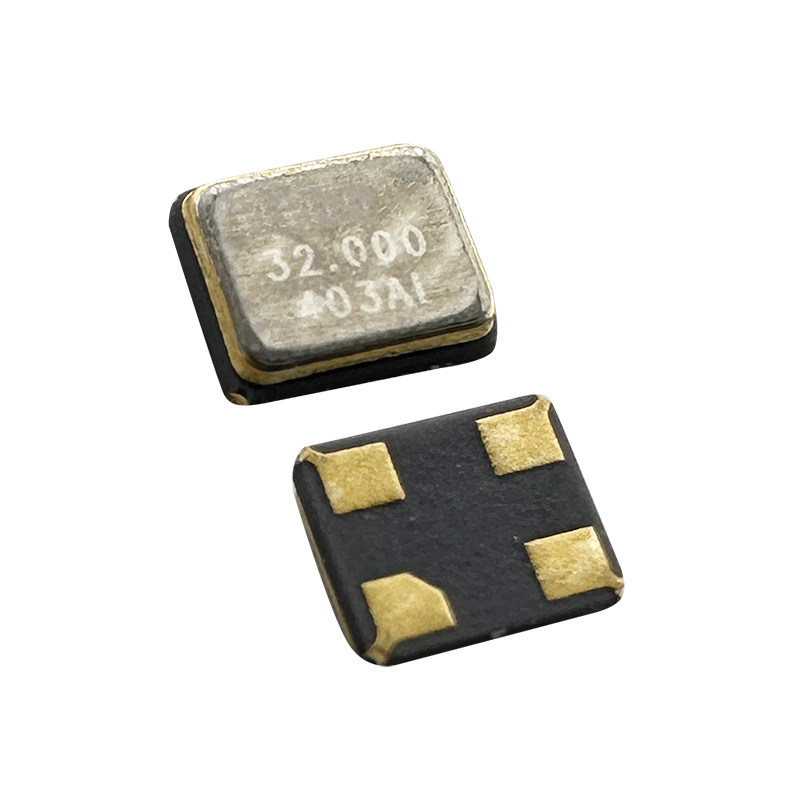

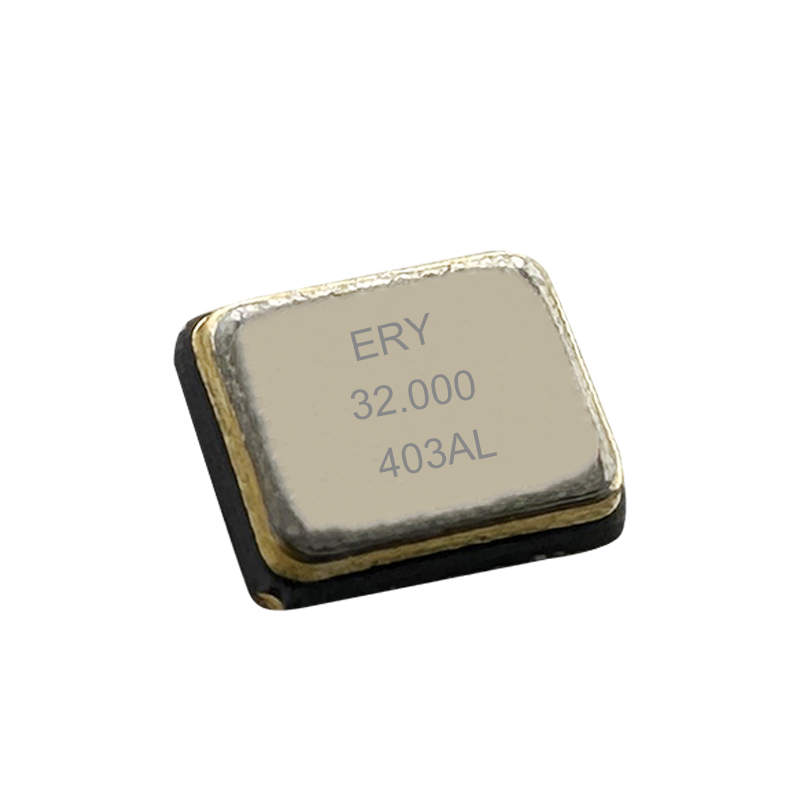

Crystal Units Ceramic SMD 2.0x1.6x0.55mm:ERYNYC-2016
Applications
1.Mobile Devices
2.Wireless Communication
3.Consumer Electronics
4.Automotive Electronics
Features
-Temperature Stability: Often includes temperature-compensated cuts or materials to minimize frequency variations across temperature ranges, ensuring reliable operation in various environmental conditions.
-Aging Characteristics: Exhibits low aging rates, ensuring long-term stability and reliable performance of frequency output over extended periods of use.
-Shock and Vibration Resistance: Engineered to withstand mechanical stress and environmental factors encountered in various applications, ensuring durability and reliability.
-Compatibility: Designed for easy surface mounting on PCBs, facilitating straightforward assembly and integration into electronic assemblies during manufacturing.
