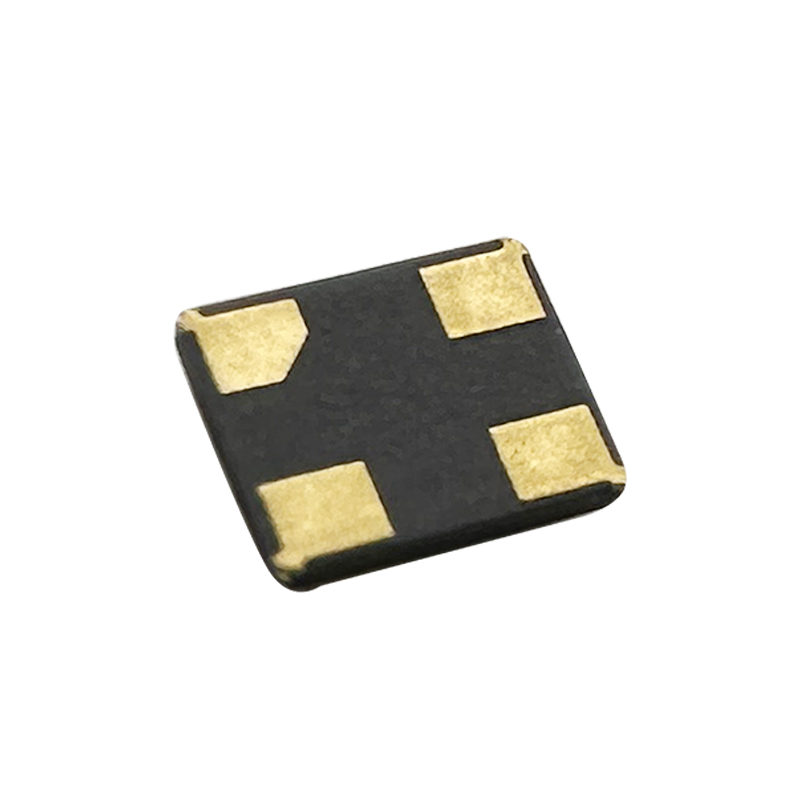

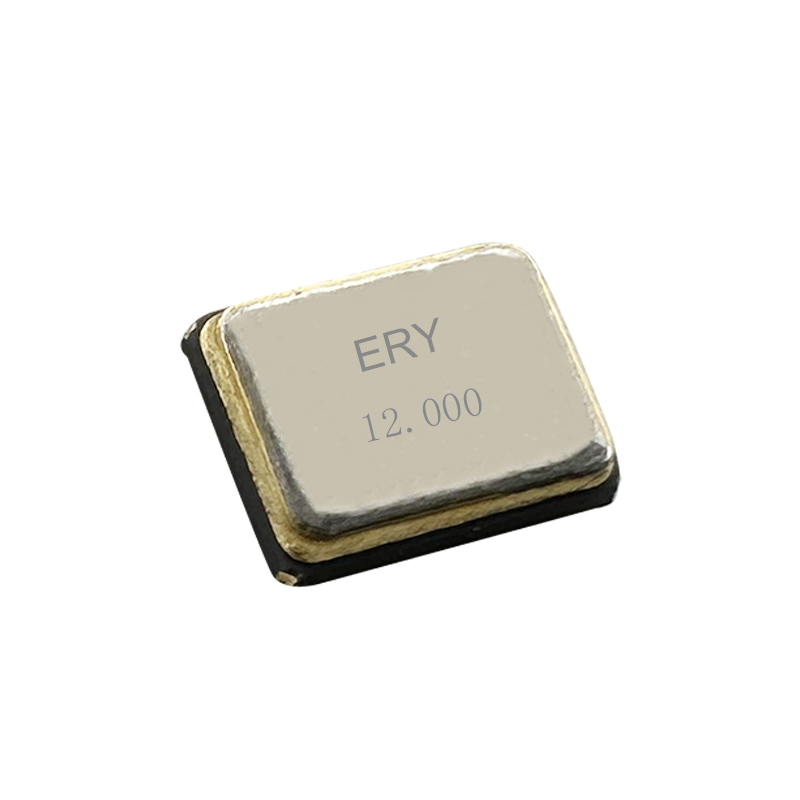

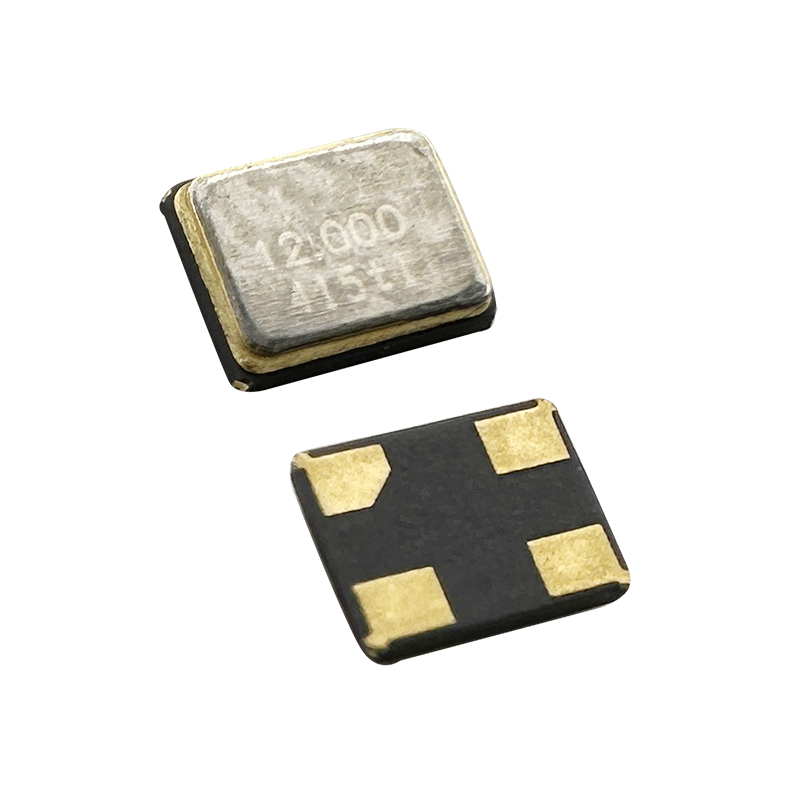

Crystal Units Ceramic SMD 2.5x2.0x0.55mm:ERYNYC2520

Crystal Units Ceramic SMD 2.5x2.0x0.55mm:ERYNYC2520

Brand ERYCO

Product origin CHINA

Ultra thin/Dimensions (2.5x2.0x0.55)

Nominal frequency range:12.000-66.000 MHz

Crystal cut:Fundamental [AT-cut]

Storage temperature range:-40℃-+85℃

Operating temperature range:-10℃~+ 60℃, -30℃~+ 85℃

Frequency temperature characteristics (Ref. to +25 ): ±10x10-6 ,±15x10-6

2D(PDF)Drawing

Product parameter:

Material:

Frequency tolerance (at +25℃):±10x10-6

Equivalent series resistance:Please efer to the ollowing ESR Table

Load capacitance:8pF, 12pF

Shunt capacitance:5pF max.

Level of drive:10μW (10μW max .)

Outline and Dimensions [unit:mm]

Crystal Units Ceramic SMD 2.5x2.0x0.55mm:ERYNYC-2520

Applications

1.Wireless Communication Devices

2.Mobile Devices

3.Consumer Electronics

4.Automotive Electronics

Features

-Compatibility: Designed for easy surface mounting on PCBs, facilitating straightforward assembly and integration into electronic assemblies during manufacturing.

-Reliability: Manufactured with high-quality materials and stringent production processes to ensure robust performance and longevity in diverse operating conditions.

-Versatility: Suitable for a wide range of applications including wireless communication devices, IoT sensors, consumer electronics, medical devices, and industrial automation where compact size and precise timing are crucial.

-Cost-Effectiveness: Provides cost-effective solutions for applications requiring stable frequency generation in compact form factors.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
