Brand ERYCO
Product origin CHINA
Ultra thin/Dimensions (5.0x3.2x0.7)
Nominal frequency range：8.000-54.000 MHZ ，40.000~100.000 MHZ
Crystal cut：Fundamental [AT-cut]，3rd overtone [AT-cut]
Storage temperature range：-40℃~+85°℃
Operating temperature range：-10℃-+60℃，-30°C-+85℃
Frequency temperature characteristics(Ref. to +25°C)：±10x10-6，±15x10-6
Product parameter:
Material:
Frequency tolerance (at +25°C)：±10x10-6
Equivalent series resistance：Please Refer to the Following ESR Table
Load capacitance：Series, 10pF, 12pF, 16pF
Shunt capacitance：5pF max.
Level of drive：10μ W （100μ .W max）
Outline and Dimensions [unit:mm]

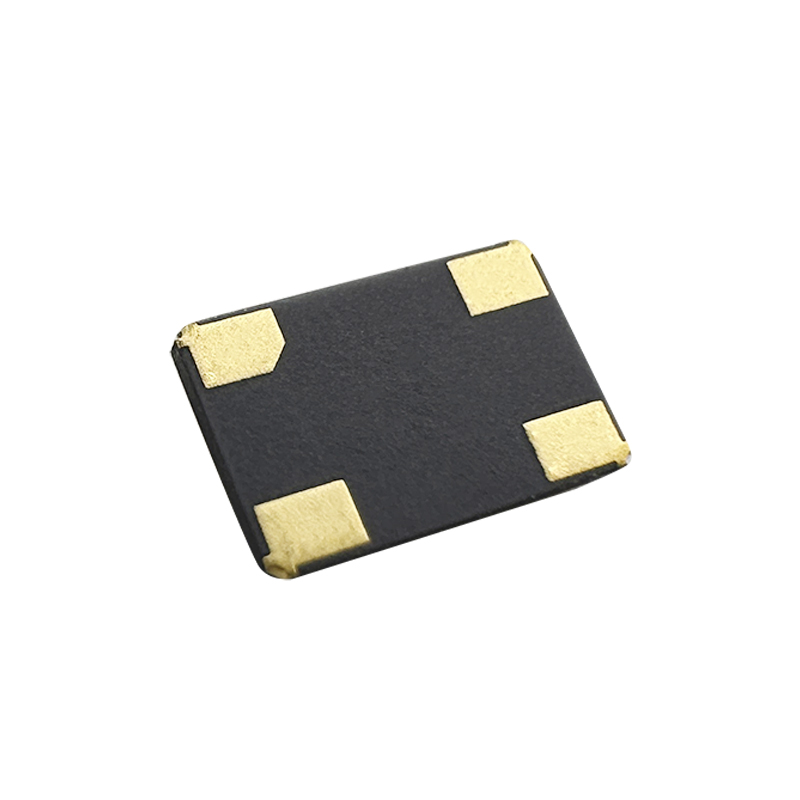

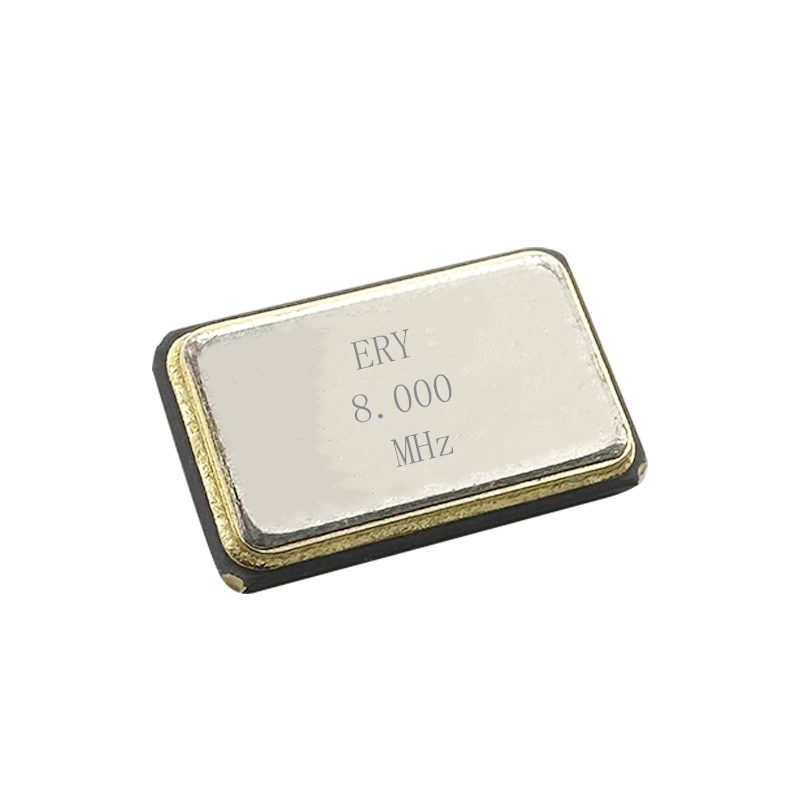

Crystal Units Ceramic SMD 5.0x3.2x0.7mm:ERYNYC-5032
Applications
1.Automotive Electronics
2.Industrial Automation
3.Medical Devices
4.IoT Devices
Features
-Low Power Consumption: Designed to consume minimal power, making them suitable for battery-powered devices and applications where energy efficiency is essential.
-Temperature Stability: Often includes temperature-compensated cuts or materials to minimize frequency variations across temperature ranges, ensuring reliable operation in various environmental conditions.
-Aging Characteristics: Exhibits low aging rates, ensuring long-term stability and reliable performance of frequency output over extended periods of use.
-Shock and Vibration Resistance: Engineered to withstand mechanical stress and environmental factors encountered in various applications, ensuring durability and reliability.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
