Product parameter:
Material:
Frequency
temperature characteristics(Ref. to +25°C)：±10x10-6 ，±15x10-6
Frequency
tolerance (at +25°C)：±10x10-6
Equivalent series
resistance：Please Refer to
the Following ESR Table
Load capacitance：Series, 10pF, 12pF, 16pF
Shunt capacitance：5pF max
Level of drive：10μW (100μW max.)
Outline and
Dimensions [unit:mm]
Crystal Units

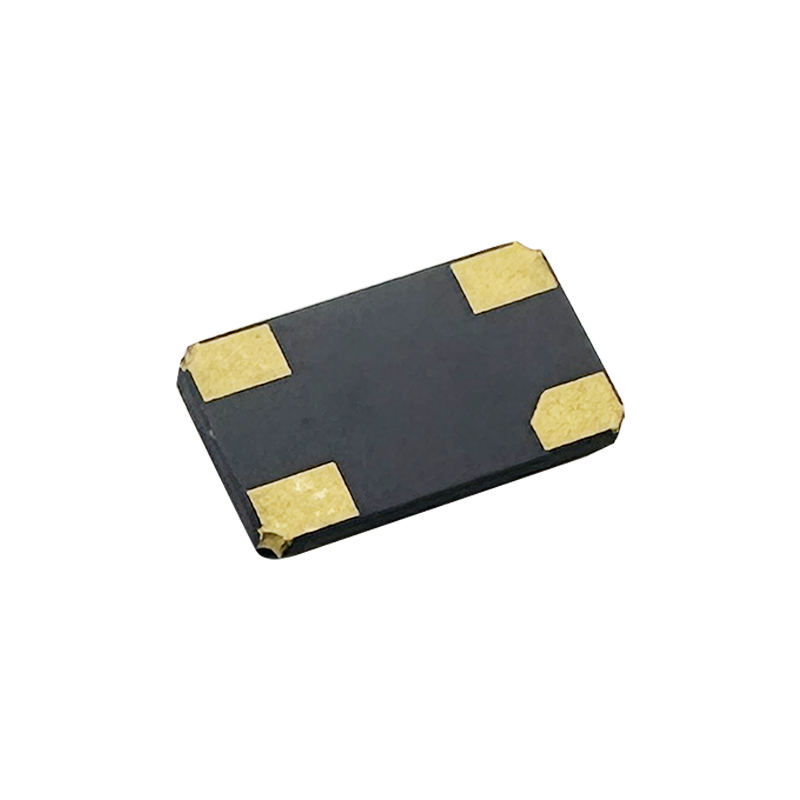

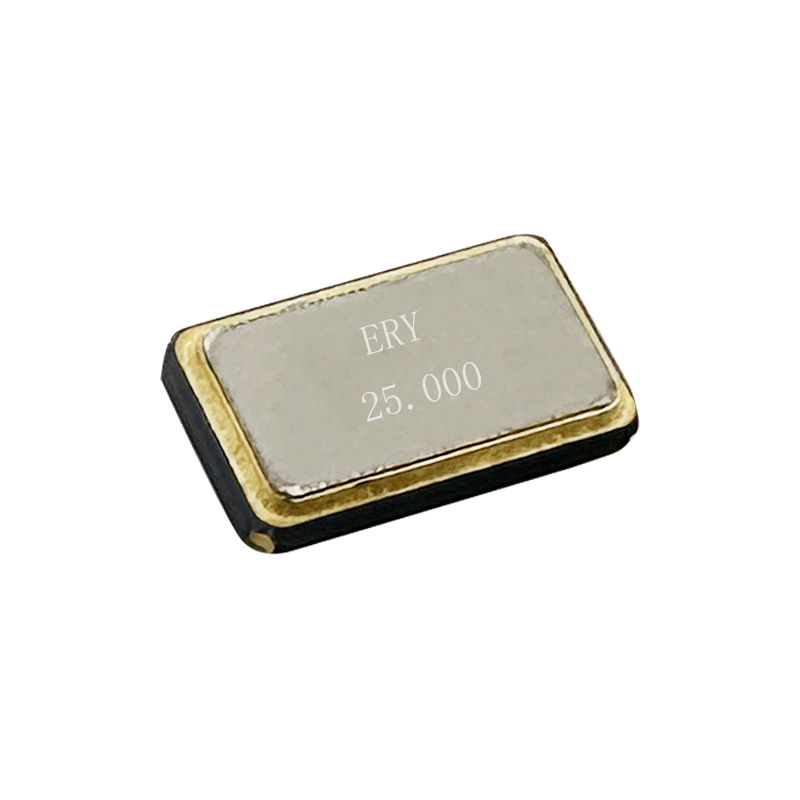

Ceramic SMD 6.0x3.5x1.0mm:ERYNYC-6035
Applications
1.IoT Devices
2.Embedded Systems
3.Test and
Measurement Equipment
4.Military and
Aerospace Applications
Features
-Compact Size:
Although larger than smaller SMD crystal units, the 6.0x3.5x1.0 mm package
still maintains a relatively compact footprint, suitable for applications where
space-saving is important but can accommodate larger components.
-Frequency Range:
Available in a wide range of frequencies typically from MHz to GHz, depending
on specific model and application requirements.
-Frequency
Stability: Provides stable oscillation frequency with minimal frequency drift
over temperature changes and aging, ensuring consistent performance over time.
-High Accuracy:
Offers high precision in frequency output, critical for maintaining accurate
timing and synchronization in electronic circuits.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
