Product parameter:
Material:
Frequency
temperature characteristics(Ref. to +25°C)：±10x10-6,±20x10-6
Frequency
tolerance (at +25℃):±10x10-6,±20x10-6,±30x10-6
Equivalent series
resistance:Please efer to the ollowing ESR Table
Load capacitance:Series,
16pF,20pF,30 pF
Shunt
capacitance:5pF max.
Level of
drive:10μW( 100μW max .)
Applications
1.Telecommunications
Equipment
2.Industrial
Automation
3.Test and
Measurement Instruments
4.Medical Devices
Features

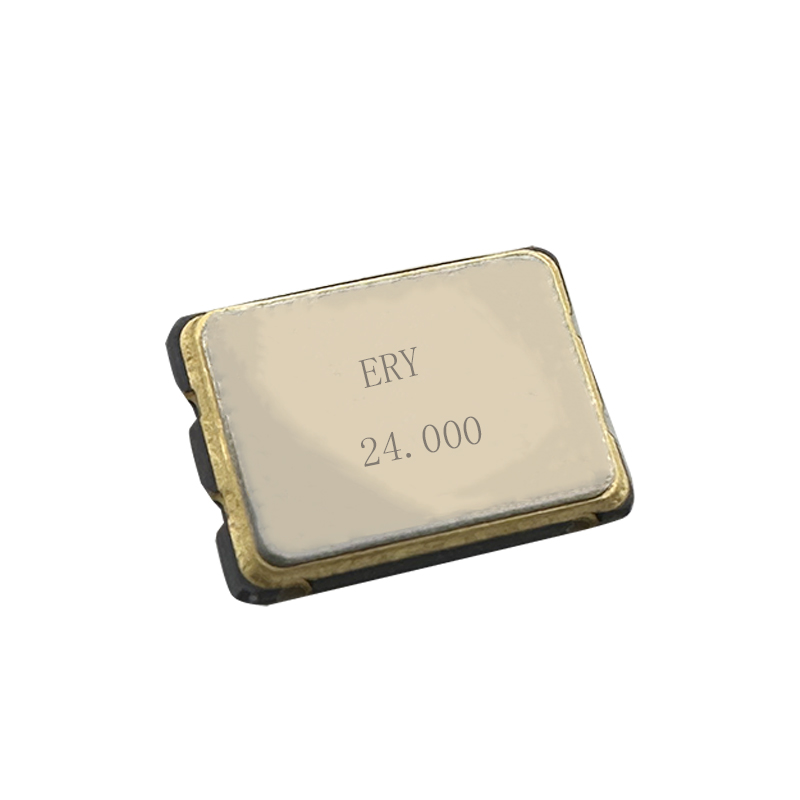

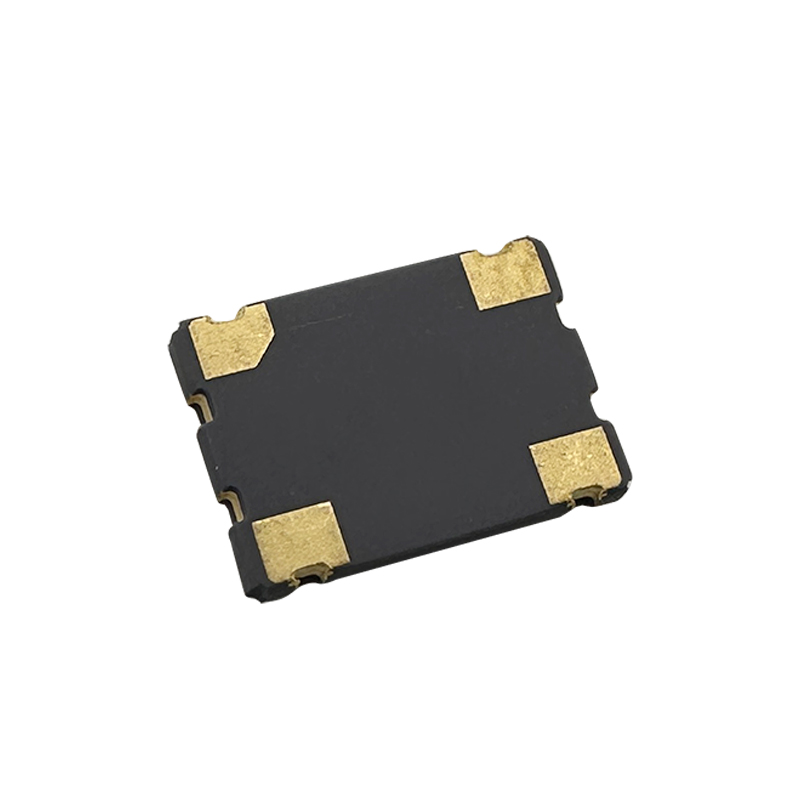

-Size: While
larger than smaller SMD crystal units, the 7.0x5.0x1.1 mm package provides a
robust footprint suitable for applications where space-saving is less critical
but can accommodate larger components.
-Frequency Range:
Available in a wide range of frequencies typically from MHz to GHz, depending
on specific model and application requirements.
-Frequency
Stability: Provides stable oscillation frequency with minimal frequency drift
over temperature changes and aging, ensuring consistent performance over time.
-High Accuracy:
Offers high precision in frequency output, critical for maintaining accurate
timing and synchronization in electronic circuits.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
