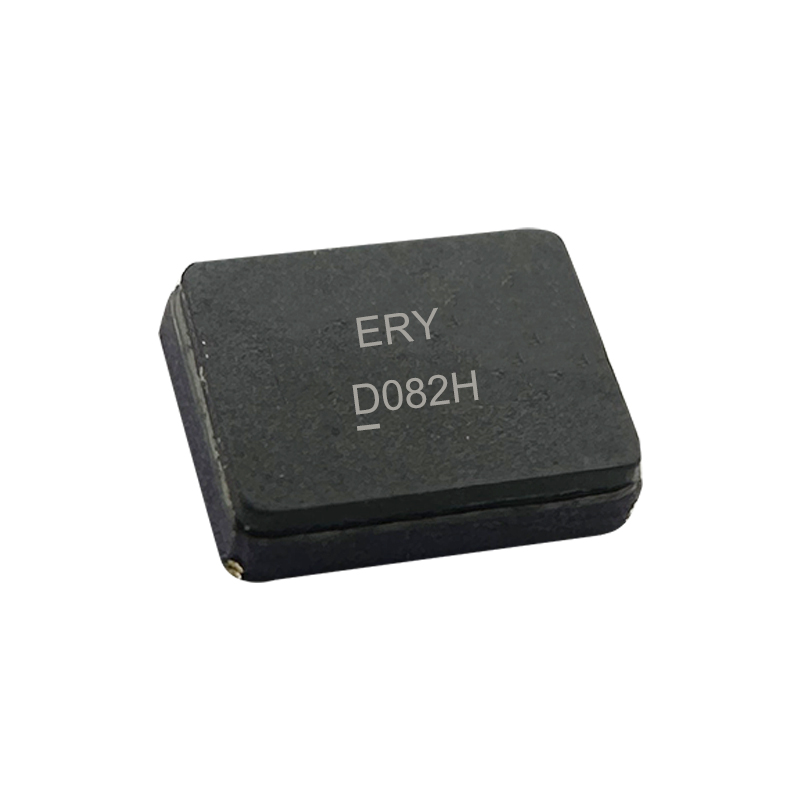

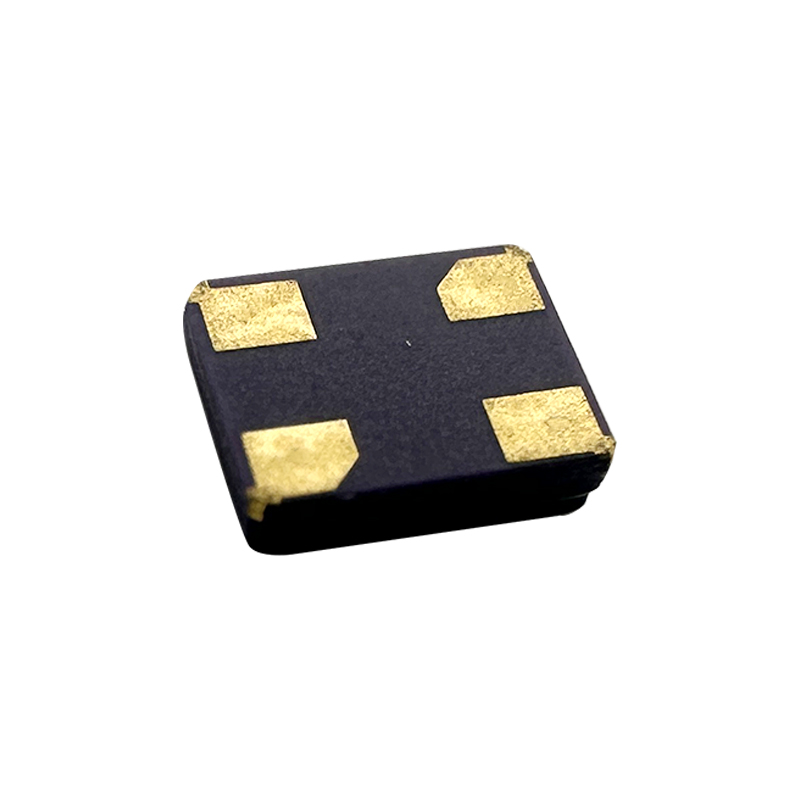

Crystal Units Glass SMD 3.2x2.5x0.8mm:ERYNY7C3225

Crystal Units Glass SMD 3.2x2.5x0.8mm:ERYNY7C3225

Brand ERYCO

Product origin CHINA

Ultra thin/Dimensions (3.2x2.5x0.8)

Nominal frequency range：10.000-54.000 MHZ，54.000~125.000 MHZ

Crystal cut：Fundamental [AT-cut]，3rd overtone [AT-cut]

Storage temperature range：-40°C-+85°C

Operating temperature range：-10℃-+60℃，-30°C-+85°C

Frequency temperature characteristics(Ref. to +25°C)：±10x10-6，±15x10-6

Product parameter:

Material:

Frequency tolerance (at +25°C)：±10x10-6

Equivalent series resistance：Please Refer to the Following ESR Table

Load capacitance：Series, 10pF, 12pF, 16pF

Shunt capacitance：5pF max.

Level of drive：10μW (100μW max.)

Applications

1.Wireless Communication & IoT

2.Automotive Electronics

3.Industrial & Medical Applications

4.Computing & Networking

Features

-Load Capacitance: Common values range from 6pF to 12pF

-Frequency Tolerance: ±10 ppm to ±50 ppm (customizable for precise timing applications)

-Compact Size: 3.2mm × 2.5mm × 0.8mm, ideal for space-constrained designs

-Low ESR (Equivalent Series Resistance): Ensures efficient oscillation with minimal power loss

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
