Product parameter:
Material:
1.Housing
Material: Glass Filled Plyester UL94V-0 PBT, Nylon
2.Housing Color:
Black or others
3.Contact
Material: Phosphor Bronze
4.Plating: Gold plating
over nickel. Gold plating thickness
1.5u"/
3u"/ 6u"/ 15u"/ 30u"/ 50u"
5.Shield: 0.23
Thickness Brass with nickel plated
Applications
1.Ethernet
switches and routers
2.Network
interface cards (NICs)
3.Ethernet hubs
and repeaters
4.IP cameras and
surveillance systems
Features

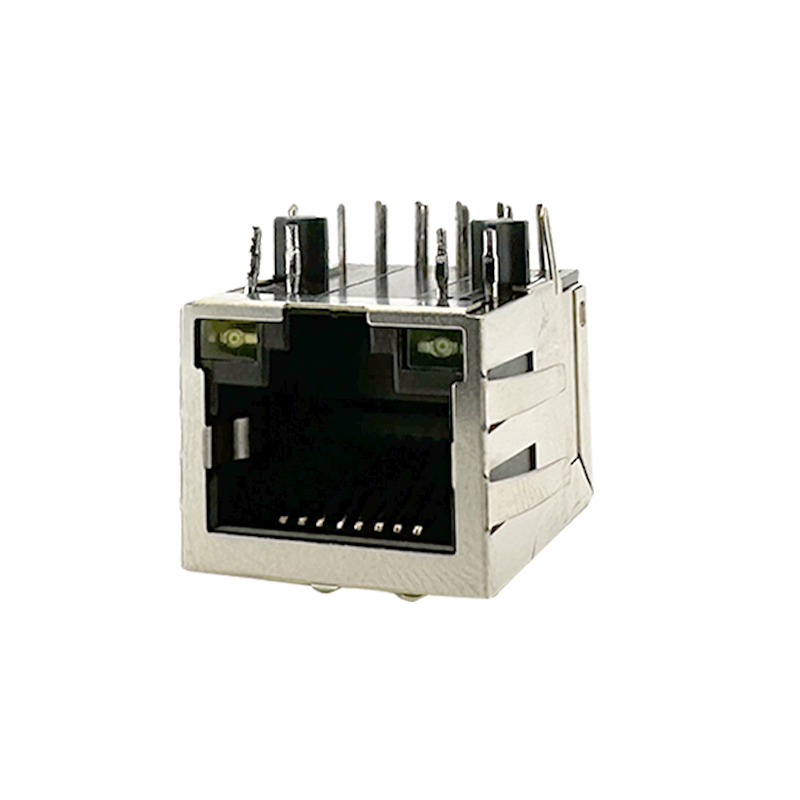

-RJ45 Connector:
The jack features an RJ45 connector, which is a standardized interface for
Ethernet networking. It accommodates Ethernet cables with RJ45 plugs, ensuring
compatibility with Cat 5e, Cat 6, or higher category cables.
-LED Indicator:
The integrated LED indicator provides visual feedback on the status of the
Ethernet connection. It typically indicates link status, activity, or speed
(e.g., 10/100/1000 Mbps). This helps in diagnosing network connectivity and
troubleshooting issues.
-Integrated
Transformer: The jack includes an integrated transformer (also known as a
magnetics module). The transformer is crucial for isolating and balancing the
signal between Ethernet devices, ensuring reliable data transmission while
protecting against electromagnetic interference (EMI) and cross-talk.
-PCB Mounting:
Designed for surface-mounting on printed circuit boards (PCBs), the jack
features solder terminals or pads that facilitate secure attachment to the PCB.
This mounting method ensures mechanical stability and electrical connection,
suitable for high-density PCB layouts in networking equipment.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
