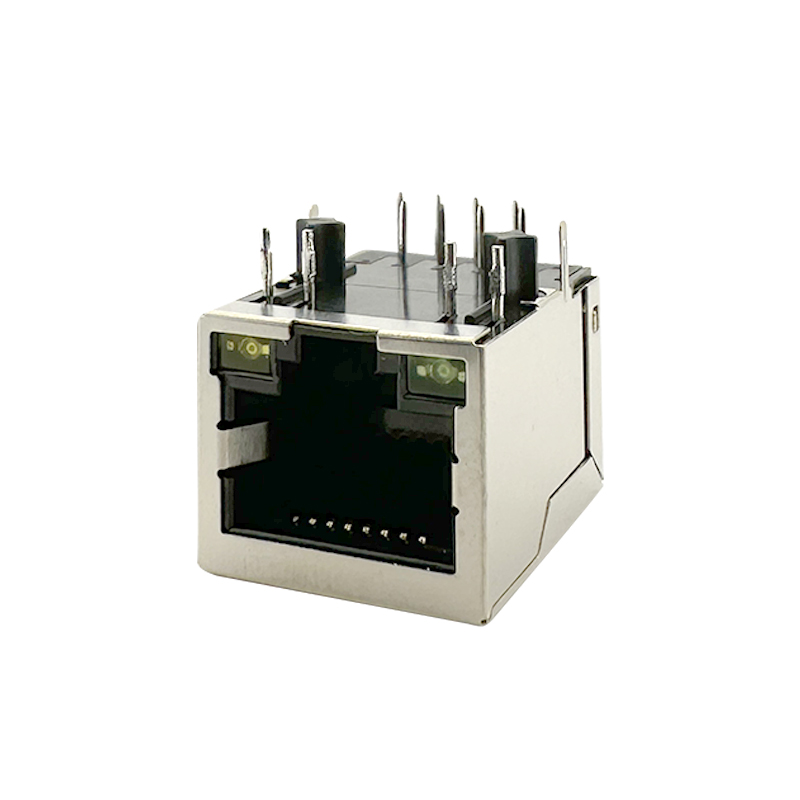

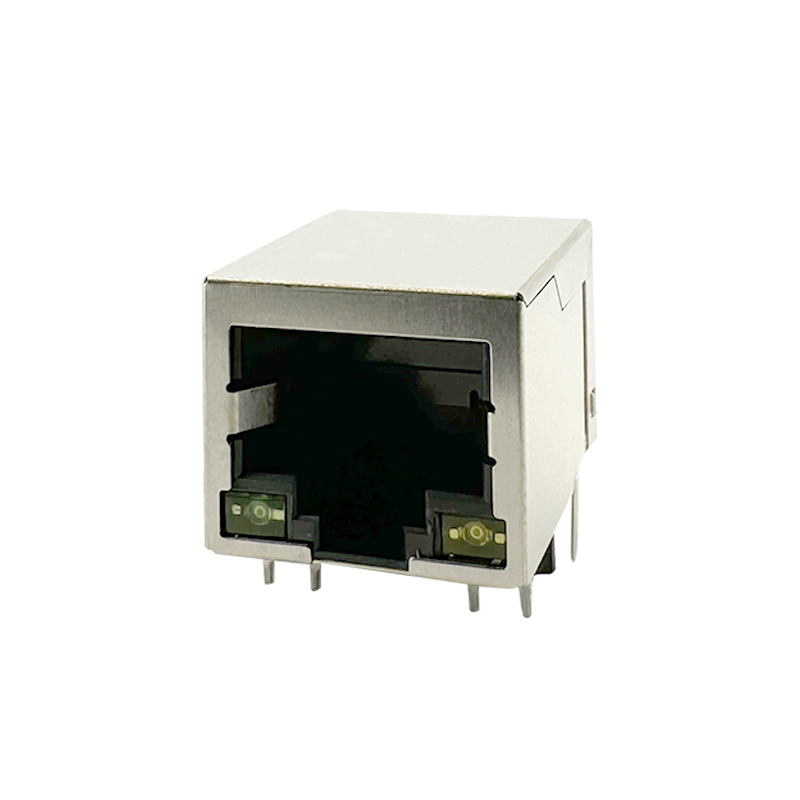

100 BASE 1x1Tab-Down RJ45: ERYLYL051

10/100 BASE 1x1Tab-Down RJ45: ERYLYL051

Brand ERYCO

Product origin CHINA

@ 25oC unless otherwise noted:

1.Turn Ratio(+/-2%):

TX=1CT :1CT RX=1CT:1CT

2.Inductance OCL:

350uH Min @100KHz/0.1V ,8mA DC Bias

3.Insertion Loss:

-1.0dB Max @1.0-100MHz

4.Return Loss:

-20dB Min @1-10MHz

-16dB Min @10-30MHz

-12dB Min @30-60MHz

-10dB Min @60-100MHz

5.Cross talk:

-40dB Min @1-30MHz

-35dB Min @30-60MHz

2D(PDF)Drawing

Product parameter:

Applications

1.Networked Printers

2.Switches and Hubs

3.Routers

4.VoIP Phones

Features

-Connector Type: RJ45 refers to the standard connector used for Ethernet cables.

-Tab-Down Orientation: This indicates the orientation of the release tab on the connector, which is designed to be inserted with the tab facing downward.

-1x1 Configuration: Indicates a single port (1x1), which is a standard configuration for RJ45 connectors used in Ethernet networking.

-Physical Compatibility: Designed to fit into standard Ethernet ports found on computers, switches, routers, and other networking devices.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
