Brand ERYCO
Product origin CHINA
Electrical
Rated voltage: 125V
Rated current:10A
Wire range: 24~18AWG 1.0mm²
Contact Resistance: 20 m Ω
Insulation resistance: 500MΩ/DC500V
Product parameter:
Material
Screw: M2, Steel,Zn plated
Shrapnel: Phosphor bronze, Nickel plated
Pin header: Brass, Tin plated
Housing: PA66 , UL94V-0
Mechanical
Temp. Range: -40 ° C ~ + 105 ° C
Soldering: 250° C±5° C for 5S
Torque: 0.2 N.m (1.77Lb. in)
Strip length: 4.5~5 mm
Applications
1.Consumer Electronics
2.Industrial Automation
3.Telecommunications
4.LED Lighting Systems
Features
-Pitch Size: The 3.50mm pitch refers to the center-to-center distance between adjacent terminals. This spacing allows for compact PCB layouts while accommodating moderate wire sizes.

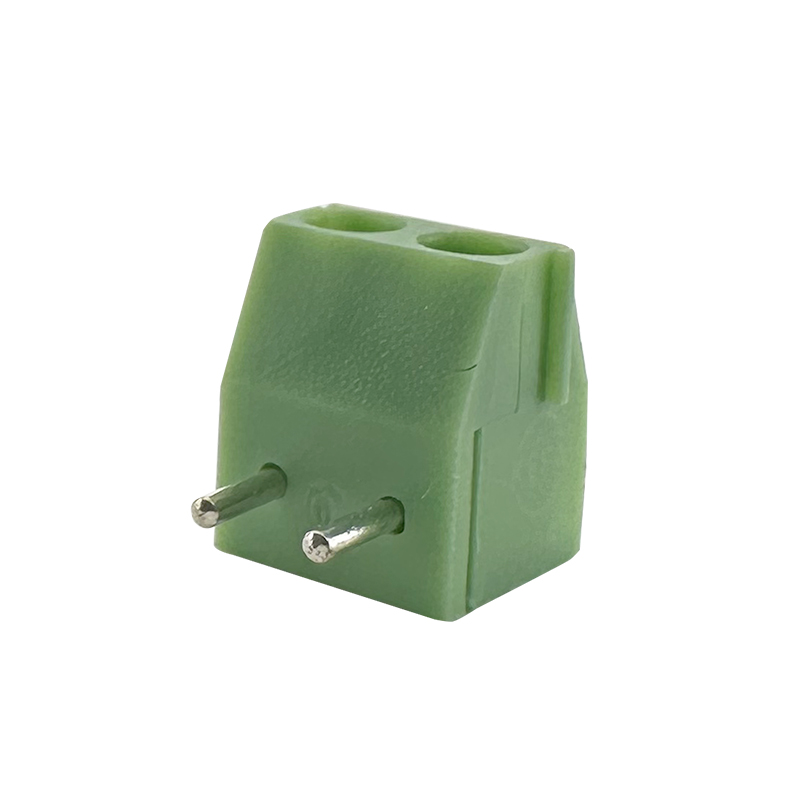

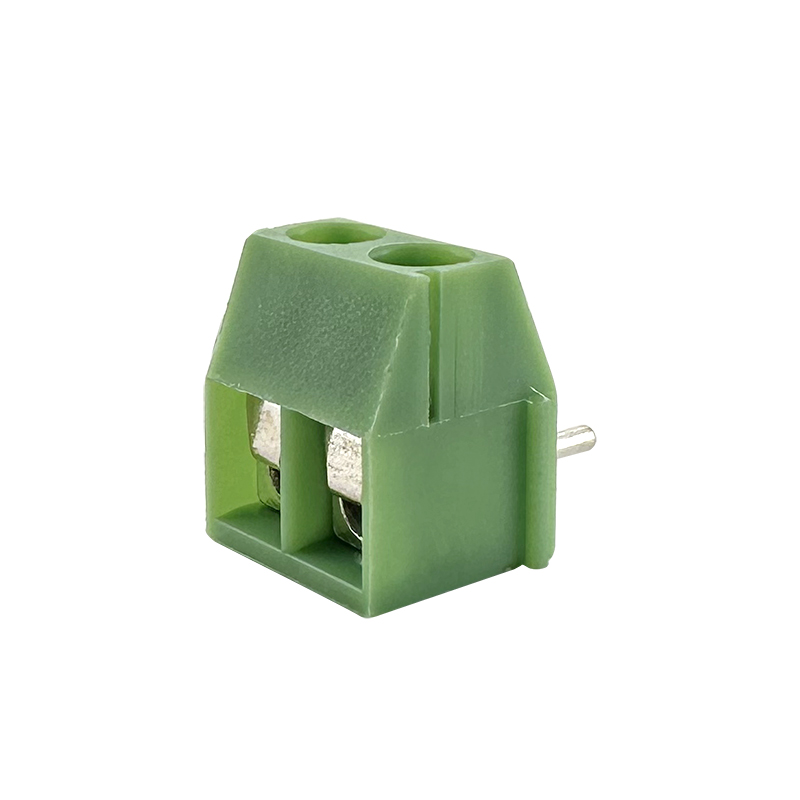

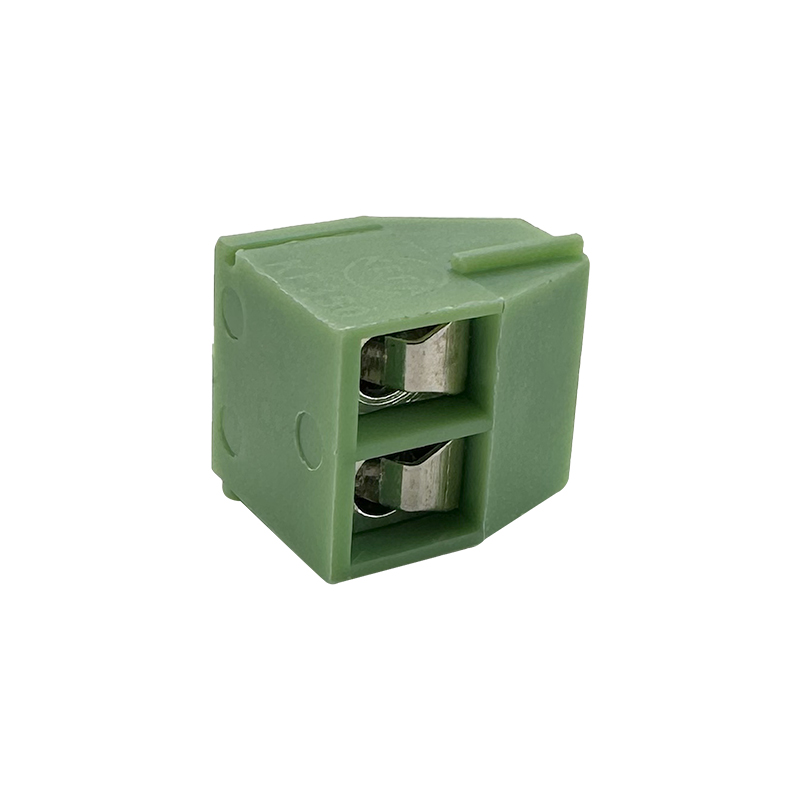

-Right-Angle Configuration: Designed to be mounted at a right angle to the PCB surface, these terminal blocks facilitate space-efficient PCB designs and enable easier wire routing in tight spaces.
-Number of Poles: Specifies the number of terminals or connections available on the block. This varies depending on the specific model and application requirements, typically ranging from 2 poles up to multiple poles.
-Current Rating: Indicates the maximum current that the terminal block can safely handle. Terminal blocks with a 3.50mm pitch are designed to handle moderate currents suitable for various electronic and electrical applications.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
