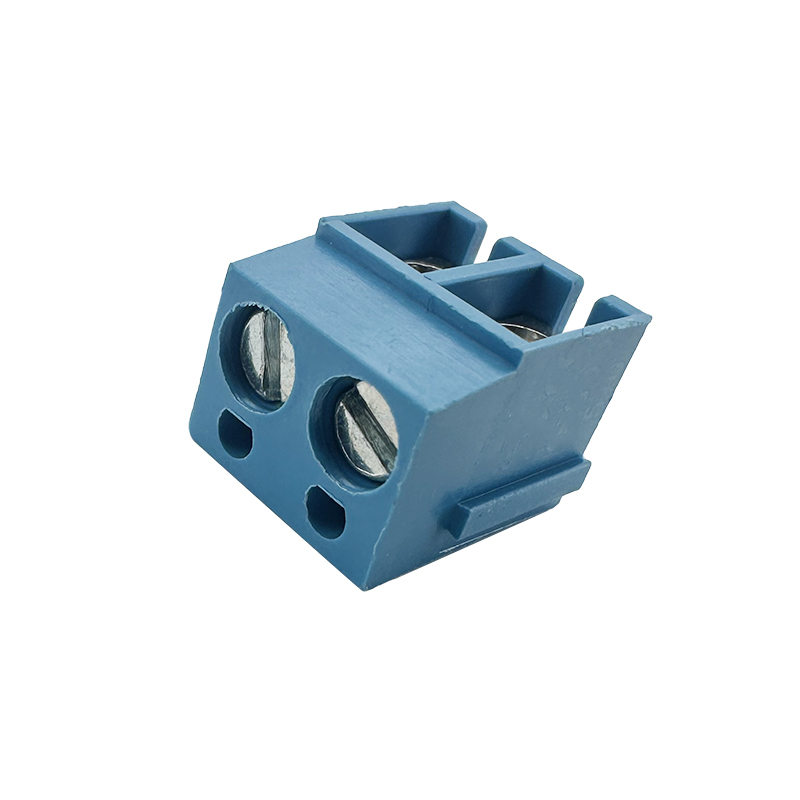

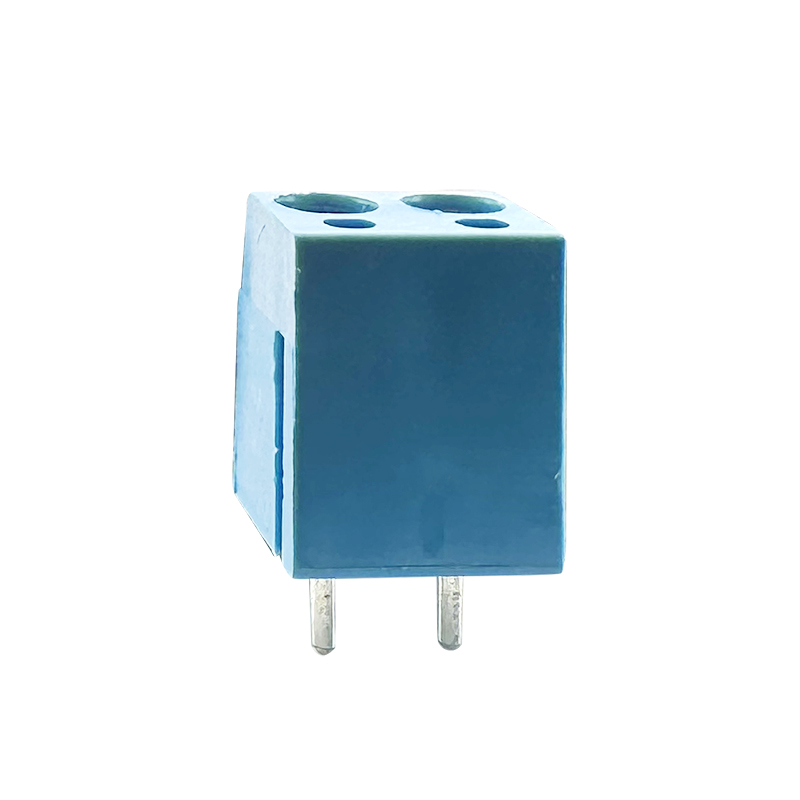

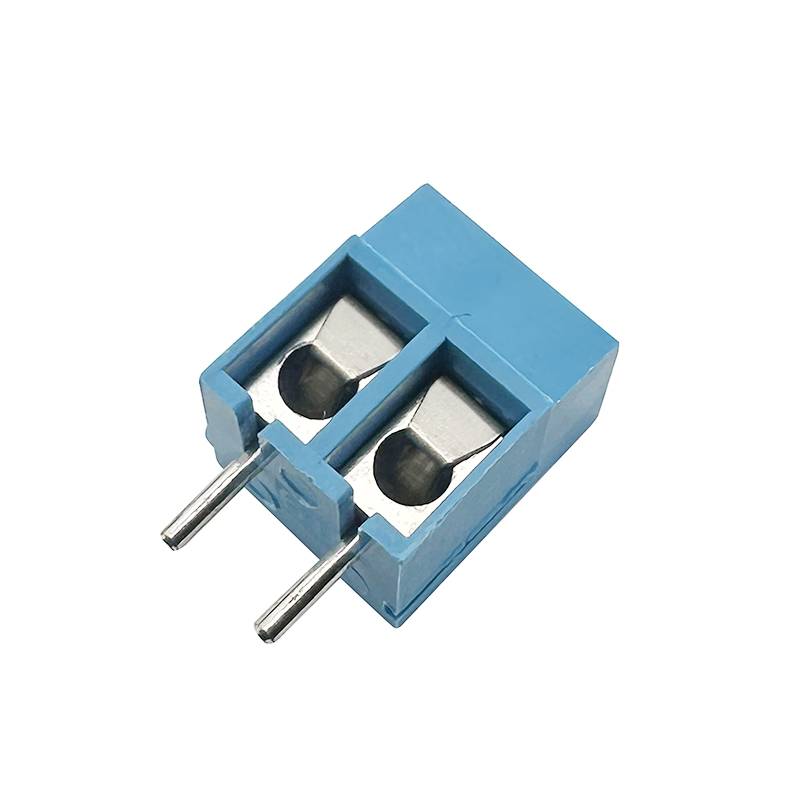

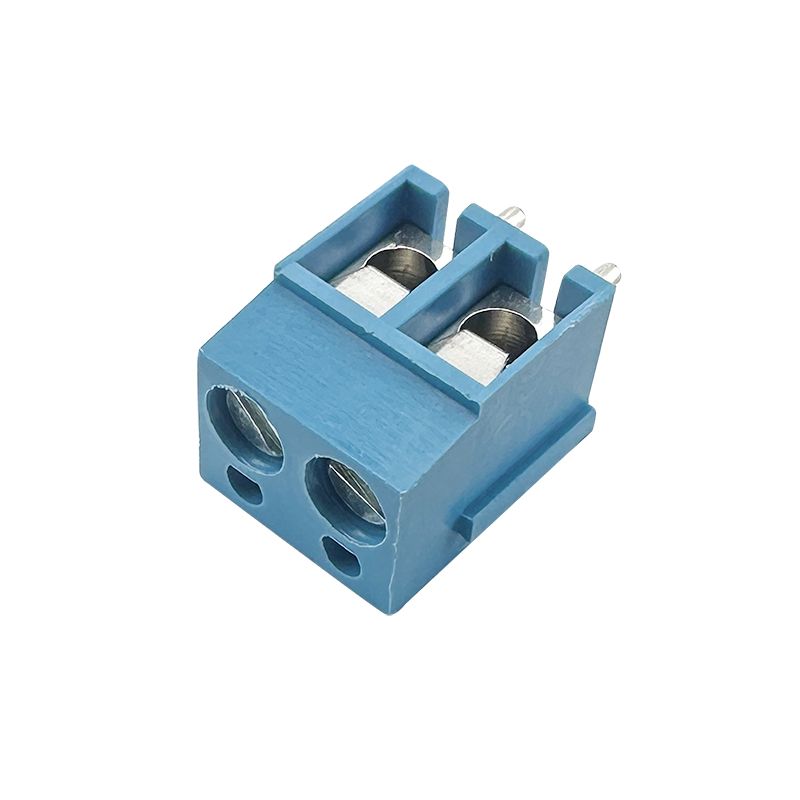

Product parameter:
Material
Screw: M2.5, Steel,Zn plated
Shrapnel: Phosphor bronze, Nickel plated
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40 ° C ~ + 105 ° C
Soldering: 250 ° C 5Sec. Max.
Torque: 0.4 N.m (3.6Lb. in)
Strip length:4.5~5 mm
Applications
1.Automotive Electronics
2.Consumer Electronics
3.Medical Devices
4Custom Electronics Projects
Features
-Material: Typically made from materials such as nylon,
thermoplastic, or ceramic for insulation, with conductive parts made of
materials like brass or tin-plated brass. This construction ensures durability,
good electrical conductivity, and resistance to environmental factors such as
temperature and moisture.
-Wire Size Compatibility: Specifies the range of wire
sizes (usually in AWG or mm²) that can be accommodated by the terminal block.
PCB terminal blocks with a 5.0mm pitch can accommodate larger wire gauges
compared to smaller pitch sizes, providing flexibility in wiring
configurations.
-Mounting Style: Designed for PCB mounting with
through-hole pins or surface mount (SMT) pads, suitable for various PCB
assembly processes such as wave soldering or reflow soldering.
-Termination Types: Terminal blocks may feature screw
clamp, spring clamp, or insulation displacement (IDC) terminations. These
options provide flexibility in connection methods depending on the application
requirements for ease of installation and maintenance.
Dimensions(Please refer to the attached 2D drawings
for detailed specifications.):
